Calibration Calibrating the Scale

CubiScan 110-T 30

are correct for the test weight you are using, tap [Next] to begin the scale

calibration.

3. Make sure there is nothing on the CubiScan 110-T platform, then tap

[Next].

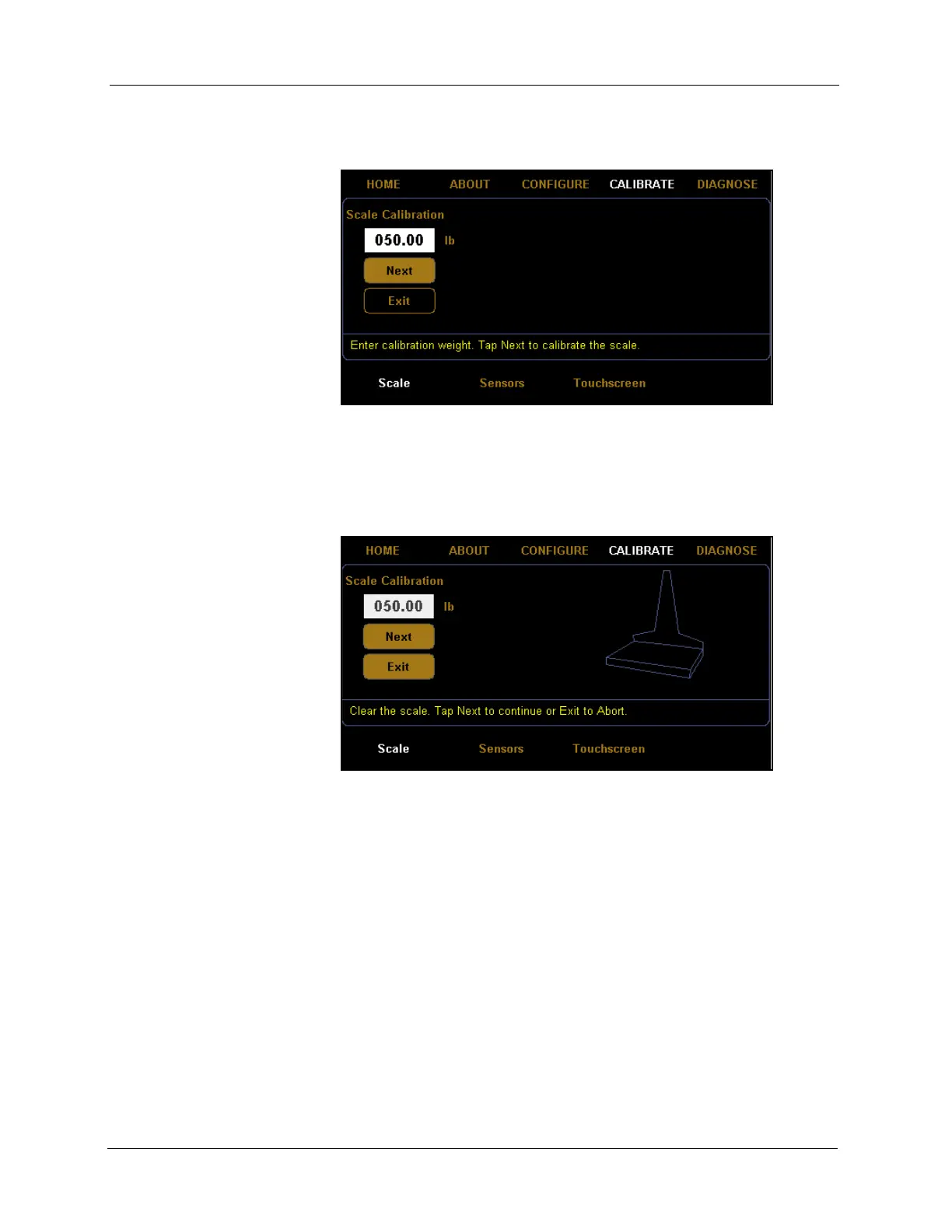

Figure 22

Scale Calibration Menu

Figure 23

First Scale Calibration Screen
