Calibration Calibrating the Touchscreen

CubiScan 110-T 37

3. Tap each red X until it turns green.

4. When each

X has turned green, the touchscreen calibration is complete.

Tap

HOME to return to the home screen.

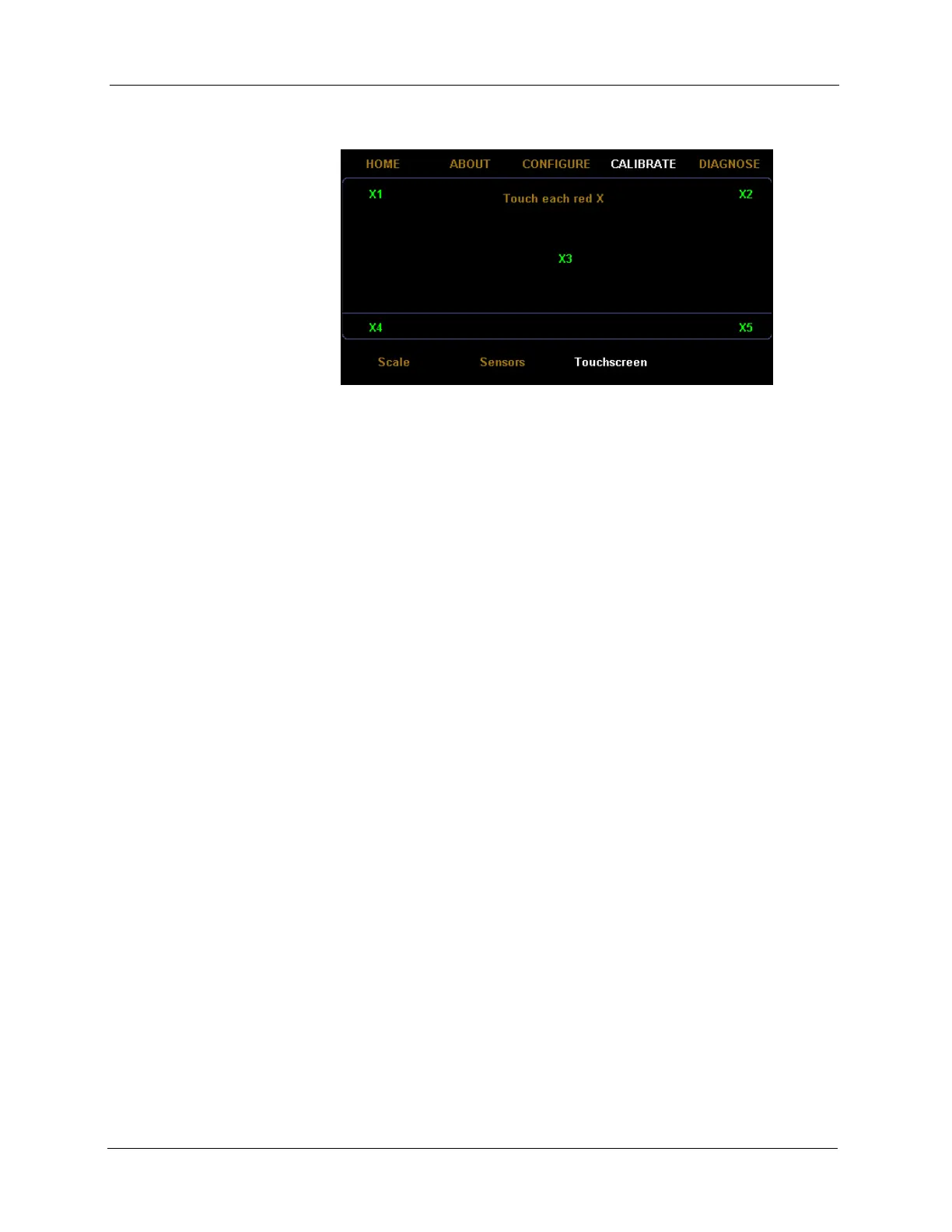

Figure 36

Touchscreen Calibration Complete
