2. The diagnostic menu is displayed at the bottom of the screen. Select the
Sensors option if it is not already selected.
Sensor diagnostic screens one through four display information for the left,
right, top, and front sensor. From the example shown you can view the left
sensor diagnostic values. To view the values for the right and top sensors,
tap the
[>] button.
DBW This field displays the Distance to the Back Wall (DBW).
Pulses This field displays the number of pulses the sensor has received.
Gain This field displays the gain step distance and affects the sensor sensitivity.
Lft This field displays the distance in inches of how far sound waves travel
from the sensor before they are interrupted. (Lft stands for left sensor, Rgt
stands for right sensor, and Top stands for top sensor.)
CPI This field displays the Counts Per Inch (CPI).
Blank This field displays the blanking zone, which is the dead zone in front of the
sensor.
Delay This field displays the internal timing parameter in milliseconds.
TMPR This field displays the internal temperature of the sensor.

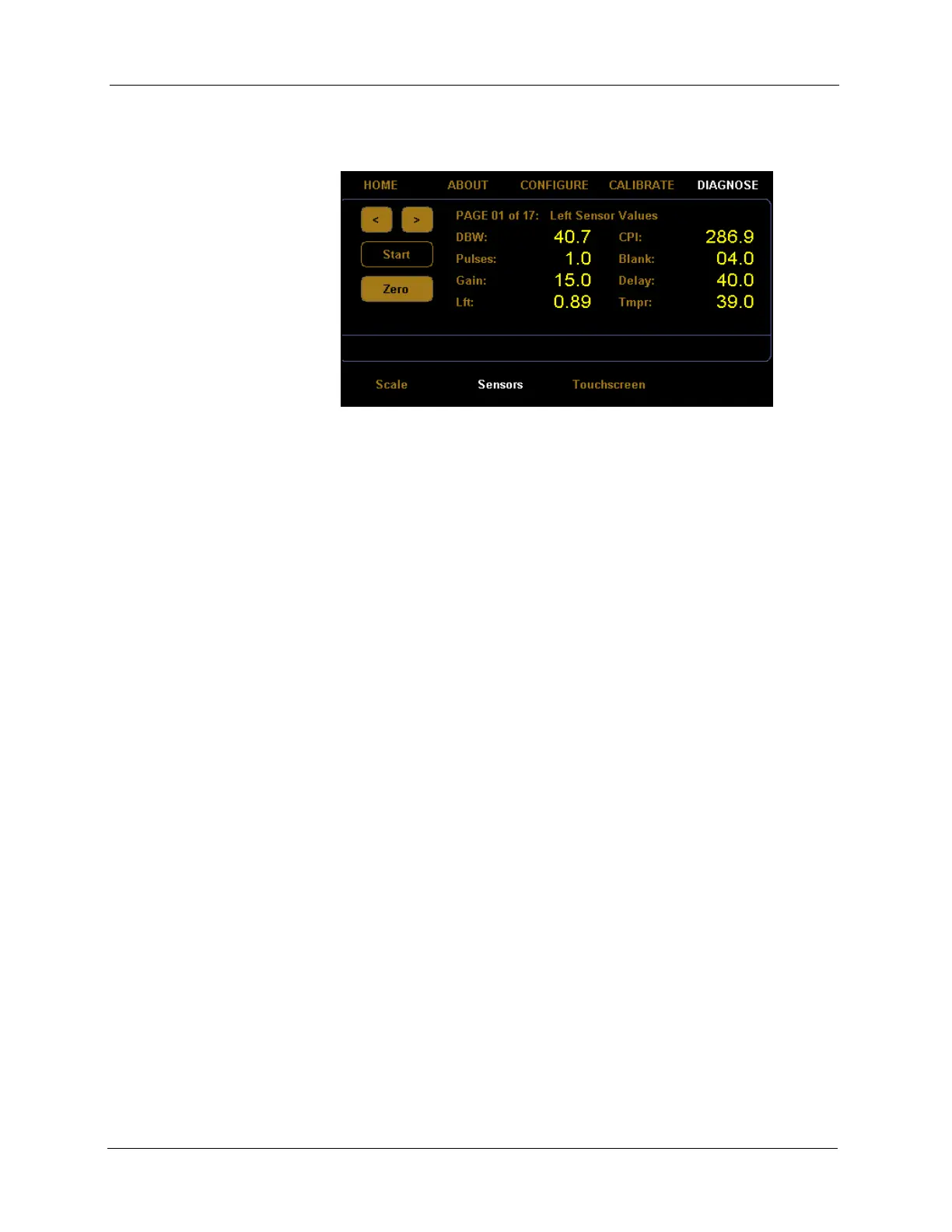

Figure 51
First Sensor Diagnostic Screen
