Calibration Calibrating the Ultrasound Sensors

CubiScan 110-T 32

1. At the home screen, tap CALIBRATE.

2. The calibration menu is displayed at the bottom of the screen. Select the

Sensors option if it is not already selected. Tap [Next] to begin the

sensor calibration.

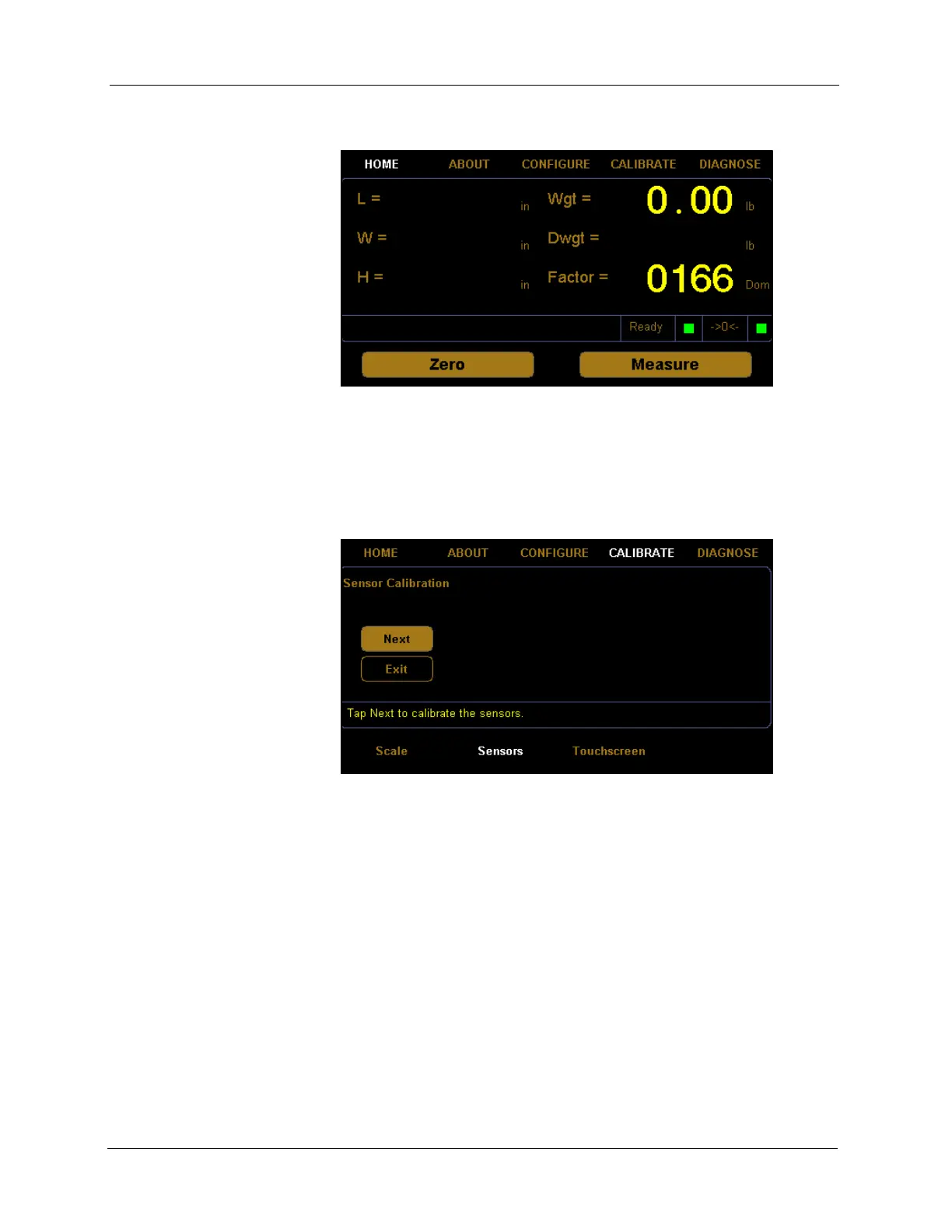

Figure 26

Home Screen

Figure 27

Sensors Calibration Menu
