Calibration Calibrating the Ultrasound Sensors

CubiScan 110-T 33

3. Make sure there is nothing on the CubiScan 110-T platform, and tap

[Next] to continue.

4. The following screen is displayed. Place the calibration cube on the

platform in the left position, as shown below.

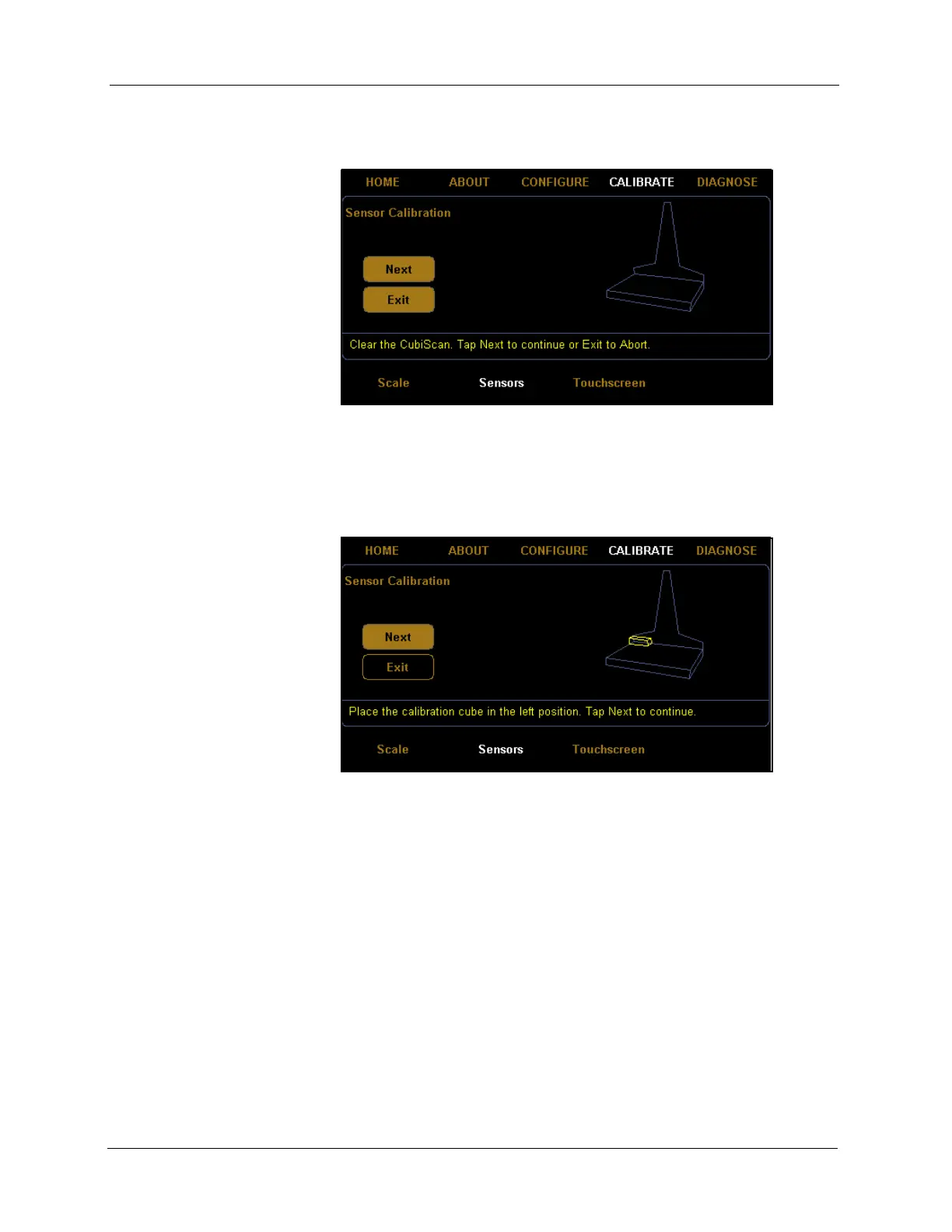

Figure 28

First Sensor Calibration Screen

Figure 29

Second Sensor Calibration Screen
