Calibration Calibrating the Ultrasound Sensors
CubiScan 110-T 34
5. Tap [Next] to continue, and the following screen is displayed.
6. Place the calibration cube on the platform in the right position, as
shown above.
7. Tap
[Next] to continue, and the following screen is displayed.
8. Place the calibration cube on the platform in the forward position, as
shown above.

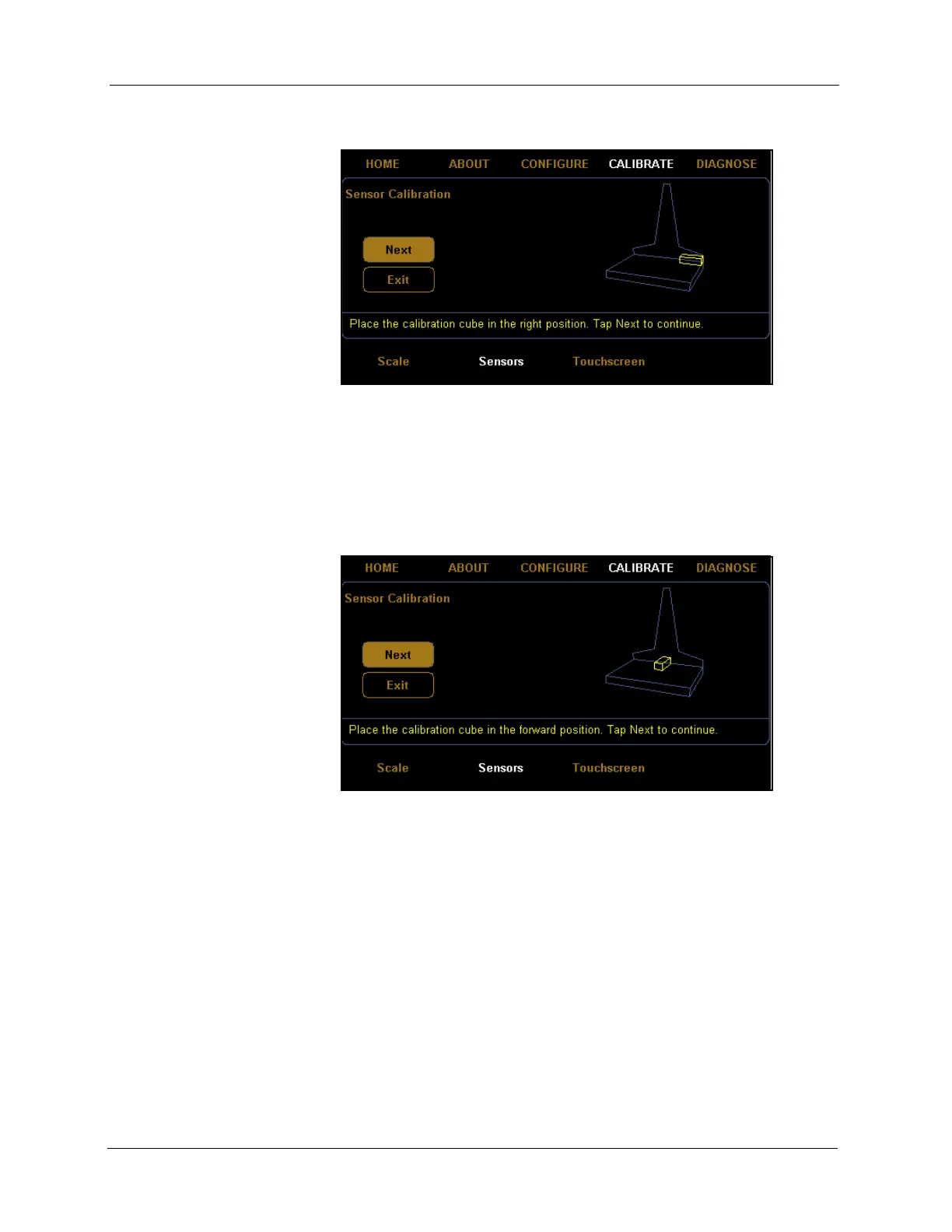

Figure 30
Third Sensor Calibration Screen
Figure 31
Fourth Sensor Calibration Screen
