Adjustment
All the moving parts slide on Teflon plugs. They are constructed in Teflon and therefore
self-lubricated.
There are two types: rectangular ones (nonadjustable), and round ones (adjustable). The
round unit, plugs adjust for the wear on the structure.
These Teflon plugs are pushed towards the running part by a plug with a hexagonal head,
by (fig 25)
To Tighten
1. Loosen the screw (1) Figure 26 and placed on every external ferrule. You do not need
to remove the screw (1)
2. Tighten the plug part (3) Figure 26 as much as needed. Tighten part (3) This will push
the plug (2) Figure 26 against the running part. Tighten part (3) until it touches the
structure, then back off part 3 by a ¼ turn.
3. The reset of the Teflon plug is completed, remember to re-tighten part (1)

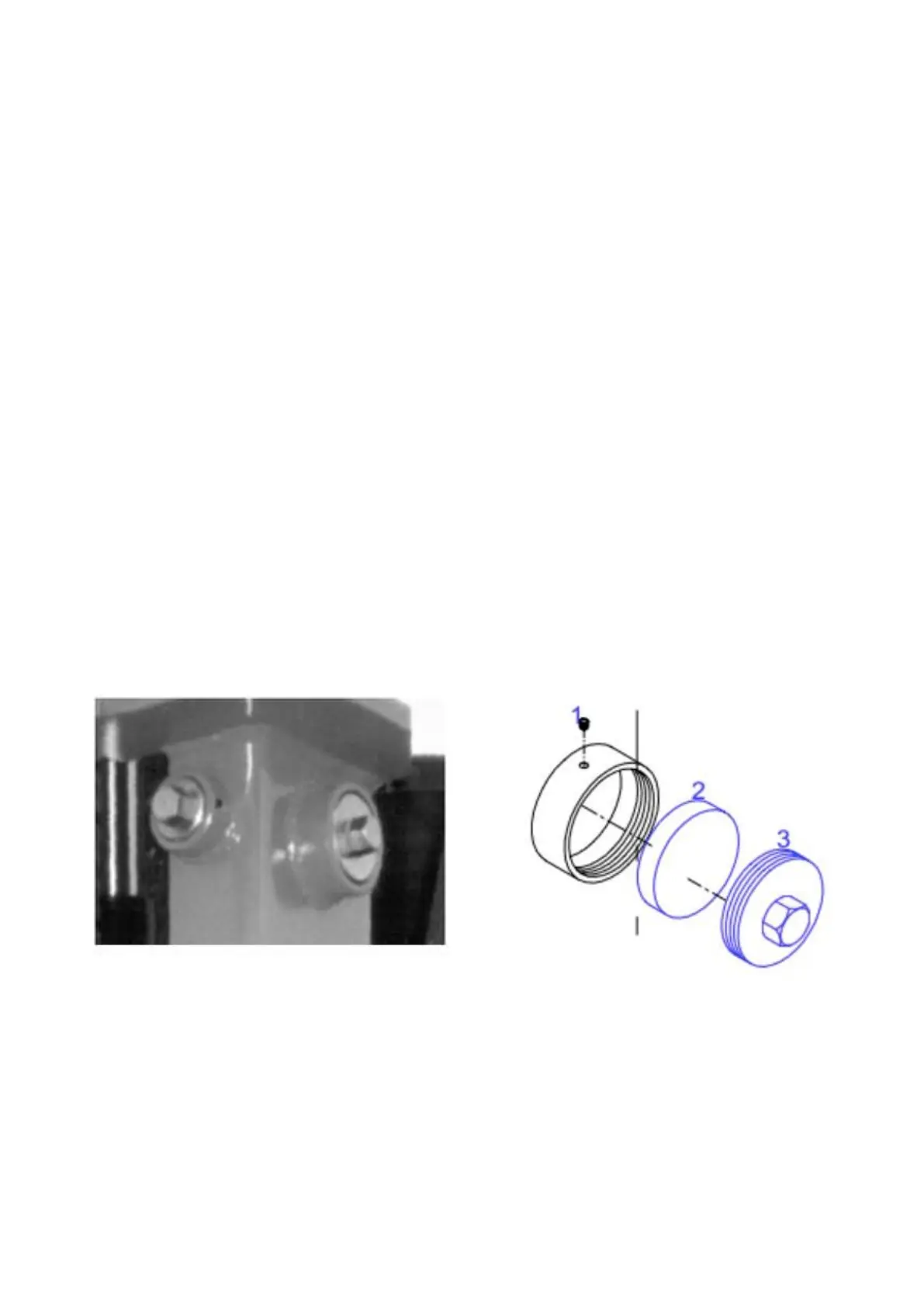

Fig.25 The ledger with a hexagonal head Fig.26. Teon Wear Plugs
Replacement Wear Plug
1. Loosen the screw (1) and placed it on every external ferrule. You do not need to remove the
screw (1)
