ISCOM6820-GP (A) Hardware Description
2 Components
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
5
Table 2-1 Components of the ISCOM6820-GP
Component
Name
Description
Main control uplink
card
MCUA
Control, management, aggregation, and
switching card
Provide two 10GE uplink interfaces, 1
SNMP interface, and 1 Console interface
(RJ45).
Basic service card
GPSC
Provide 16 GPON subcards.
Expansion service
card
GP16
Provide 16 GPON subcards.
GE16
Provide 16 GE subcards.
Power card
RPD1302-48D4805
Dual DC inputs
Provide a -48 VDC interface for the
service frame.
RPA1302-220D4805
Single AC input
Provide a 110/220 VAC interface for the
service frame.
Fan module
FANS380
Fan module
2.1.2 Appearances
Appearance of main control uplink card

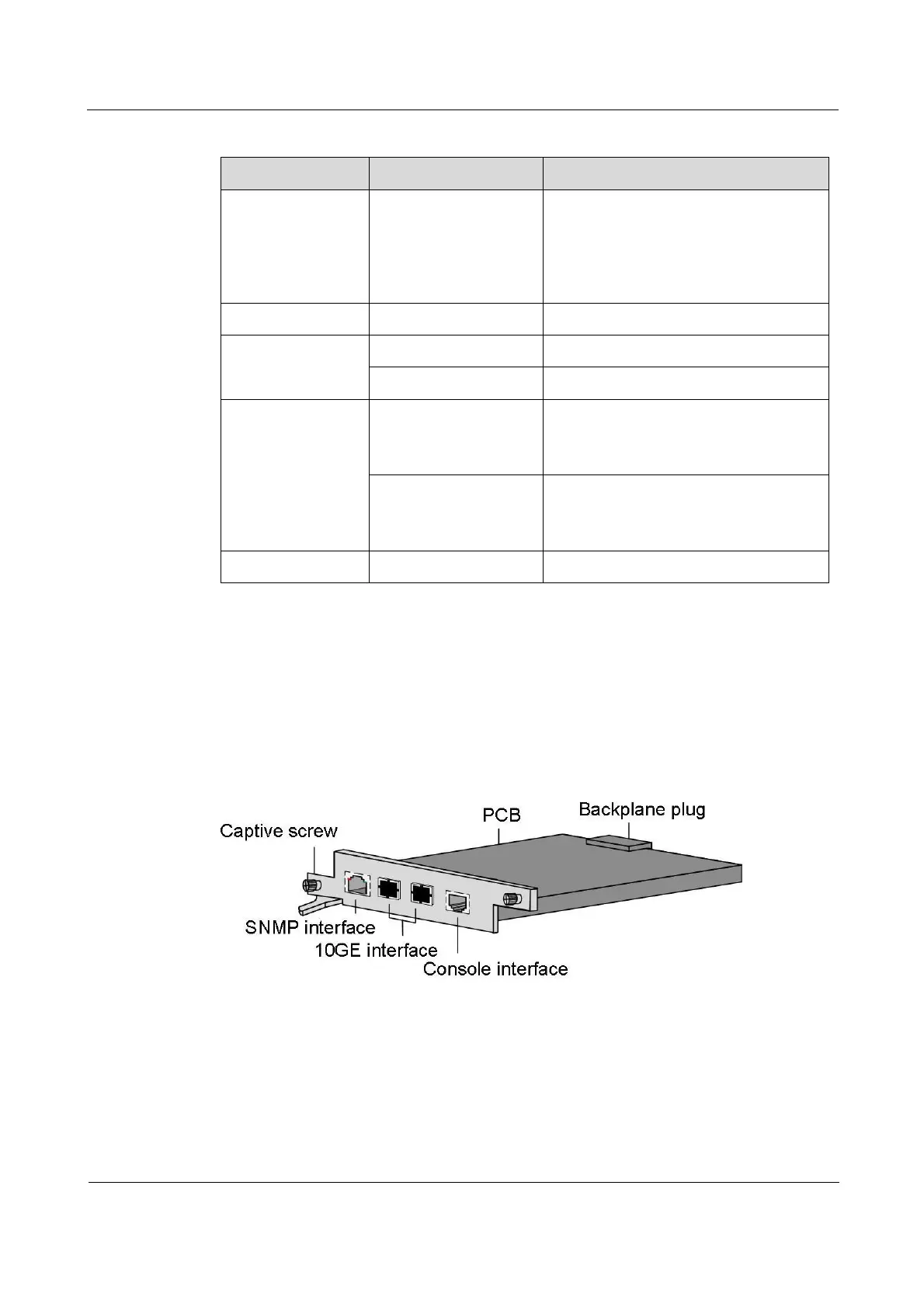

Figure 2-1 shows the appearance of the main control uplink card (MCUA).
Figure 2-1 Appearance of the MCUA
Appearance of basic service card
Figure 2-2 shows the appearance of the basic service card.
