Raisecom
ISCOM6820-GP (A) Hardware Description
3 Fiber and cables
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
24
When connecting or removing the LC/PC fiber connector, align the connector with the optical
interface, and do not rotate the fiber. Do as below:
To connect the fiber, align the head of the fiber with the optical interface and insert the
fiber into the interface gently.
To remove the fiber, press down the clamping connector, and push the fiber head
inwards, and then pull the fiber out.
SC/PC fiber connector

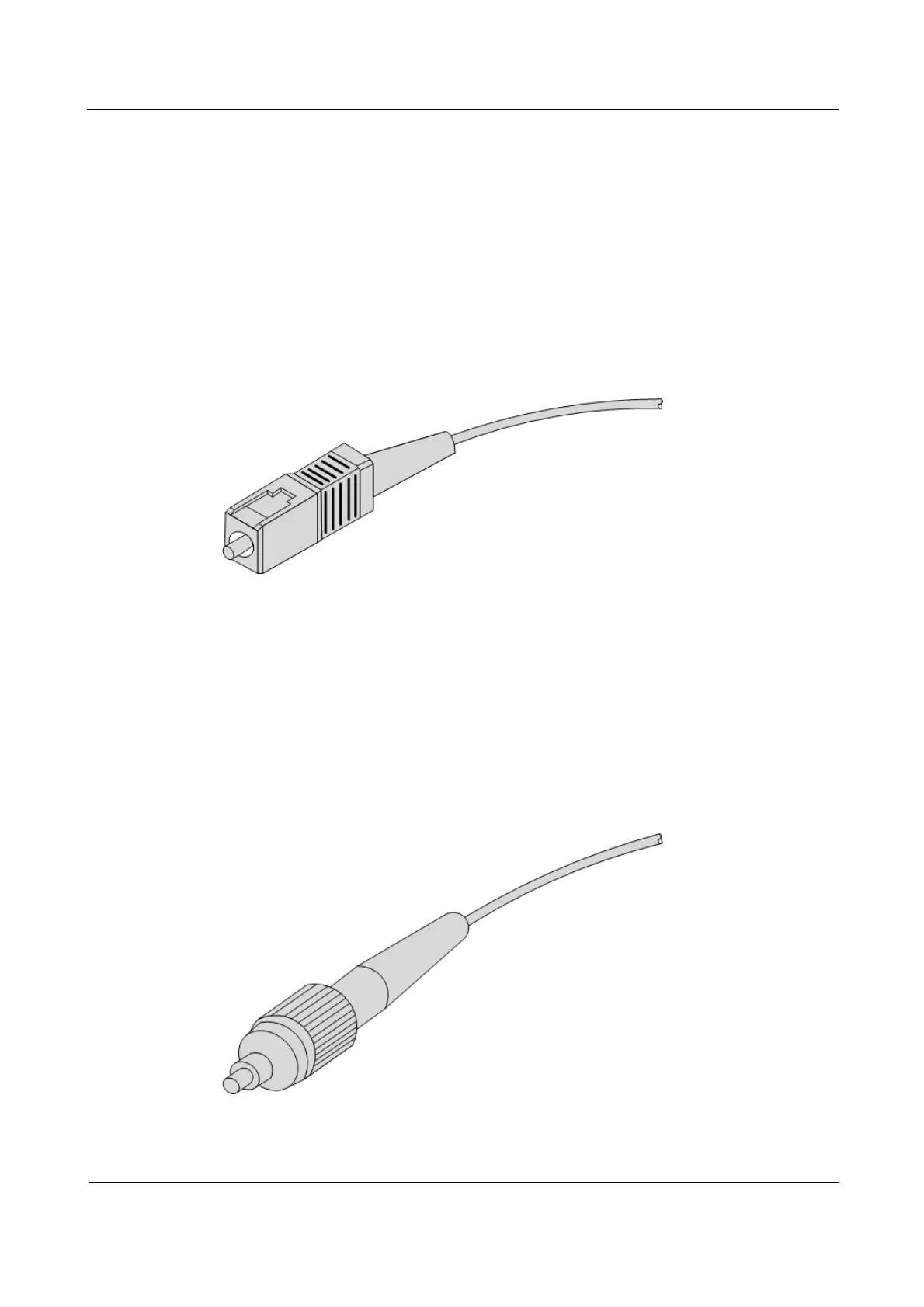

Figure 3-2 shows the appearance of the SC/PC fiber connector.
Figure 3-2 SC/PC fiber connector
When connecting or removing the SC/PC fiber connector, align the connector with the optical
interface, and do not rotate the fiber. Do as below:
To connect the fiber, align the head of the fiber with the optical interface and insert the
fiber into the interface gently.
To remove the fiber, push the fiber head inwards, and then pull the fiber out.
FC/PC fiber connector
Figure 3-3 shows the appearance of the FC/PC fiber connector.
Figure 3-3 FC/PC fiber connector
When connecting or removing the FC/PC fiber connector, align the connector with the optical
interface, and do not rotate the fiber. Do as below:
