Raisecom ISCOM6820-GP User Manual

Raisecom
ISCOM6820-GP (A) Hardware Description
3 Fiber and cables
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
23
Usage
Local connector
Remote connector
Type
Standard
Connect the ISCOM6820-GP
to the ODF through the PON
interface.
SC/PC
LC/PC
2 mm SMF
SC/PC
FC/PC
2 mm SMF
SC/PC
SC/PC
2 mm SMF

Choose the connector type and jumper cable length reasonably based on the on-
site requirements.

The supported connector of the optical interface depends on the optical module.

Choose a connector suitable for the optical interface. Otherwise, it may increase
additional loss of fiber links, reduce transmission quality of services, or even
damage the connector and optical interface.
3.1.2 Connector
Fiber connectors are different in shape, ferrule end-face, and pigtail sheath color, as shown in
Table 3-2.
Table 3-2 Fiber connectors
Connector
Description
Pigtail sheath color
LC/PC
Clamping square fiber connector/micro-convex
grinding-and-polishing ferrule end-face
Blue
SC/PC
Square fiber connector/ micro-convex grinding-
and-polishing ferrule end-face
Blue
FC/PC
Round screw-thread connector/micro-convex
grinding-and-polishing ferrule end-face
Blue
LC/PC fiber connector
Figure 3-1 shows the appearance of the LC/PC fiber connector.

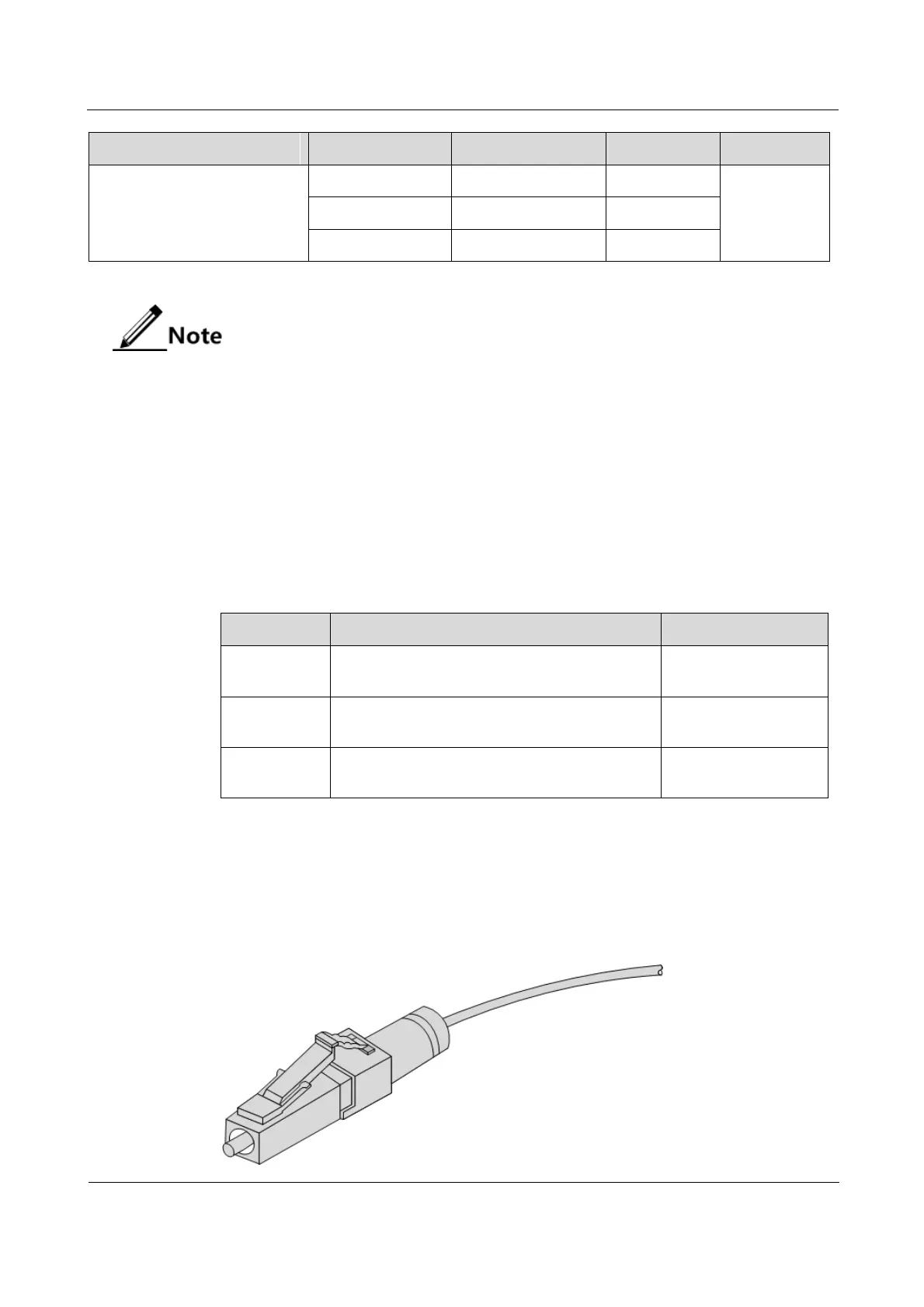

Figure 3-1 LC/PC fiber connector
