2.4 Expansion service card (GP16)
2.4.1 Introduction
The GP16 card is the GPON interface card of the ISCOM6820-GP, providing 16 GPON SFP
interfaces.
2.4.2 Panel and slots
The GP16 card can be inserted into slot 4 only.
Figure 2-10 shows the panel of the GP16 card.

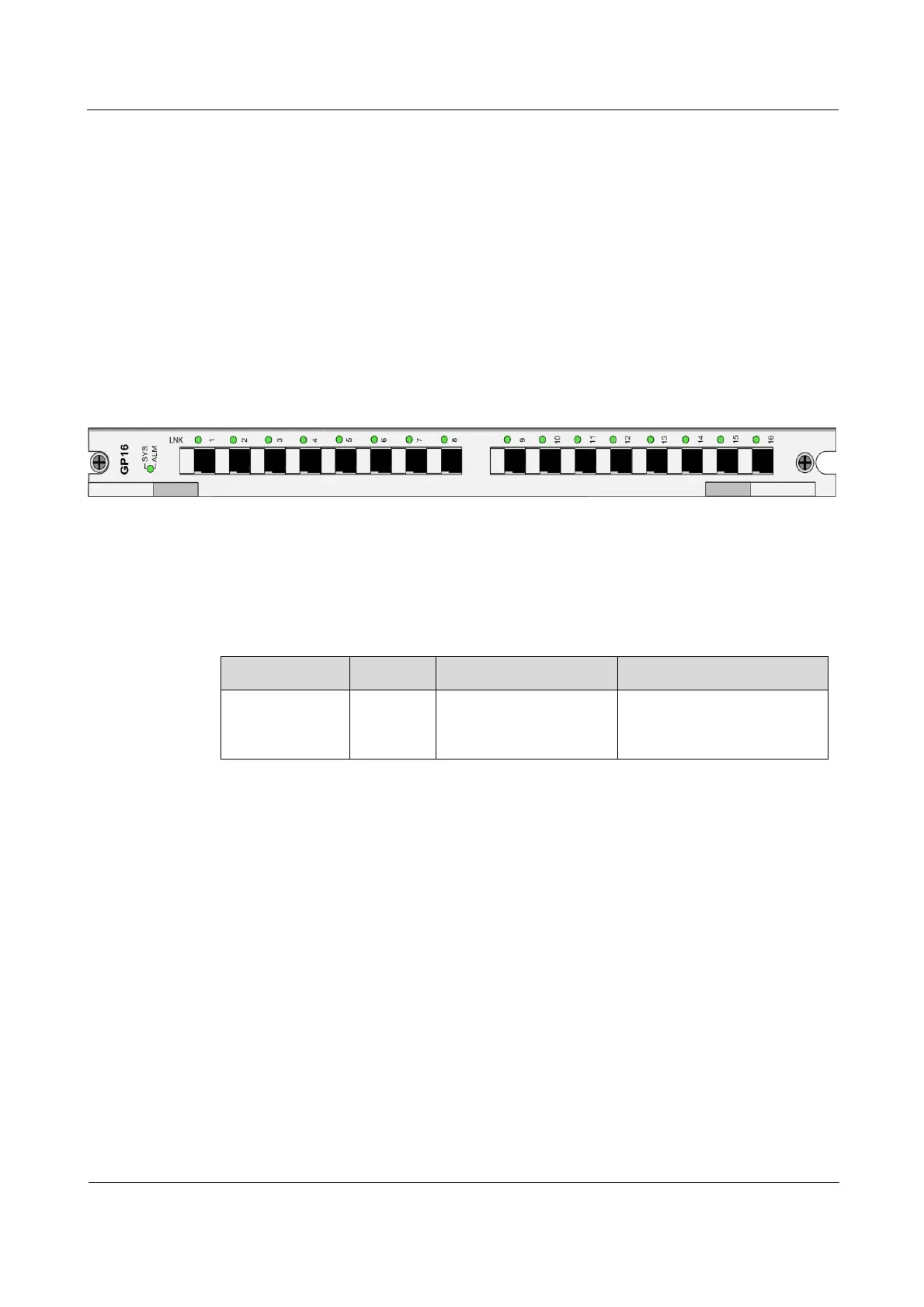

Figure 2-10 Panel of the GP16 card
2.4.3 Interfaces
There are 16 interfaces on the GP16 card.
Table 2-11 lists interfaces on the GP16 card.
Table 2-11 Interfaces on the GP16 card
Interface
Type
Usage
Description
PON 1–16
PON SFP
GPON service interface
Available optical module
type: Class B+, Class C+, or
Class ++
2.4.4 LEDs
There are 17 LEDs on the GP16 subcard.
Table 2-12 lists LEDs on the GP16 subcard.
