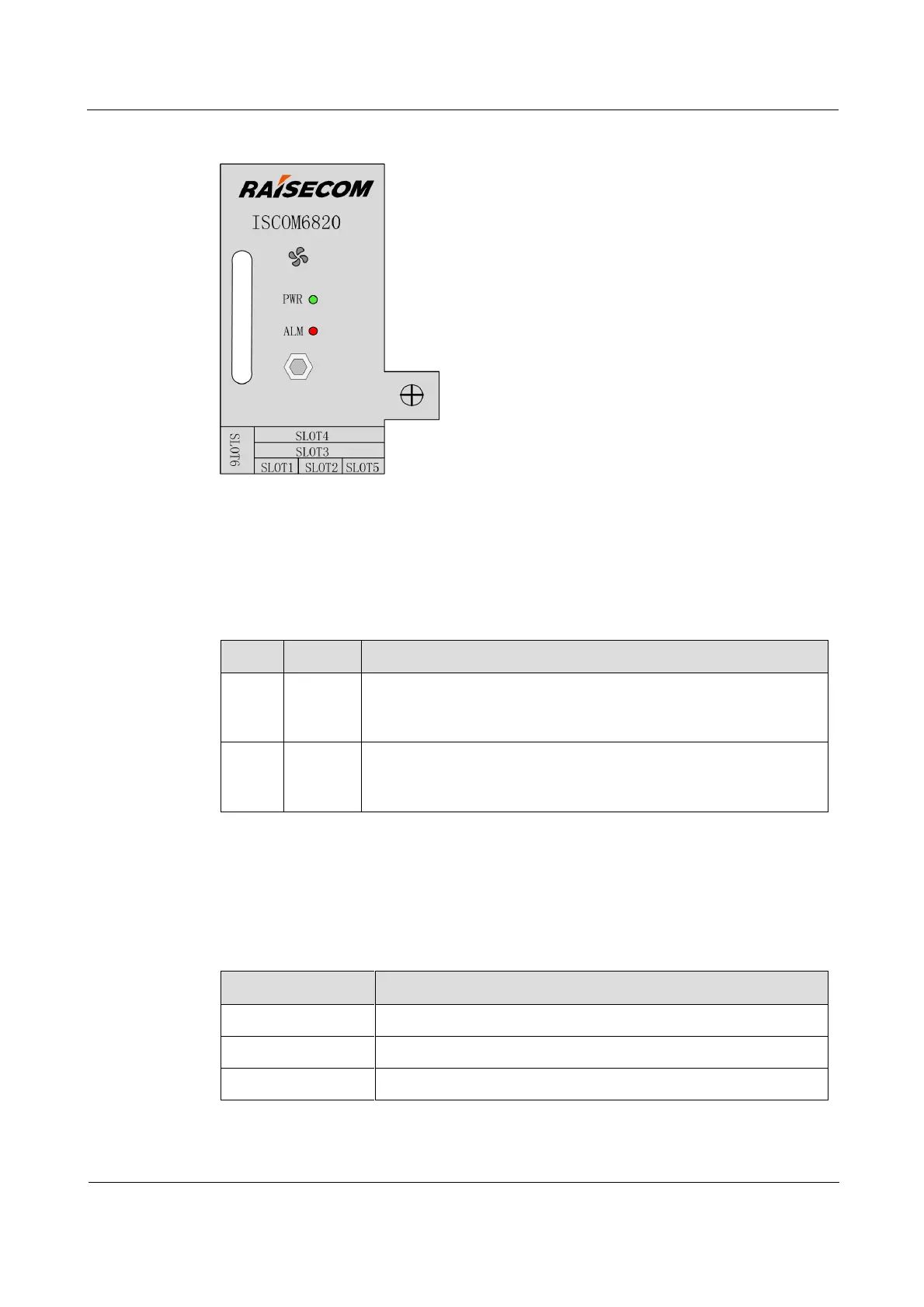

Figure 2-14 Panel of the FANS380 module
2.8.3 LEDs
There are 2 LEDs on the FANS380 module.
Table 2-23 lists LEDs on the FANS380 module.
Table 2-23 LEDs on the FANS380 module
LED
Status
Description
PWR
Green
Power LED

Green: the power supply is working properly.

Off: the power supply is working improperly.
ALM
Red
Alarm LED

Red: the module is working improperly and an alarm is generated.

Off: the module is working properly.
2.8.4 Technical specifications
Table 2-24 lists technical specifications of the FANS380 module.
Table 2-24 Technical specifications of the FANS380 module
Parameter
Description
Dimensions
37 mm (Width) ×221.5 mm (Depth) ×85.5 mm (Height)
Weight
0.7 kg
Power consumption
22 W
