ISCOM6820-GP (A) Hardware Description
4 Pluggable optical modules
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
37
Table 4-3 lists technical specifications of the 1000BASE-X SFP optical module.
Table 4-3 Technical specifications of the 1000BASE-X SFP optical module
Model
Tx
wavelength
(nm)
Interface
type
Mode
Tx
optical
power
(dBm)
Min.
overload
point
(dBm)
Extinction
ratio (dB)
Rx
sensitivity
(dBm)
Transmi
ssion
distance
(km)
USFP-
Gb/M-D-R
850 (LC/PC)
Dual-fiber
MM
-9.5 to -
3
0
9
-17
0.55
USFP-
Gb/S1-D-R
1310 (LC/PC)
Dual-fiber
SM
-10 to -3
-3
9
-21
15
USFP-
Gb/S2-D-R
1550 (LC/PC)
Dual-fiber
SM
-3 to 2
-3
9
-21
40
USFP-
Gb/S3-D-R
1550 (LC/PC)
Dual-fiber
SM
-3 to 2
-9
9
-30
80
4.2 10 Gbit/s SFP+ optical module
4.2.1 Functions and appearance
The SFP+ optical module can be applied to 10Gbit/s telecommunication or data
communication networks. It is integrated with sending and receiving features.

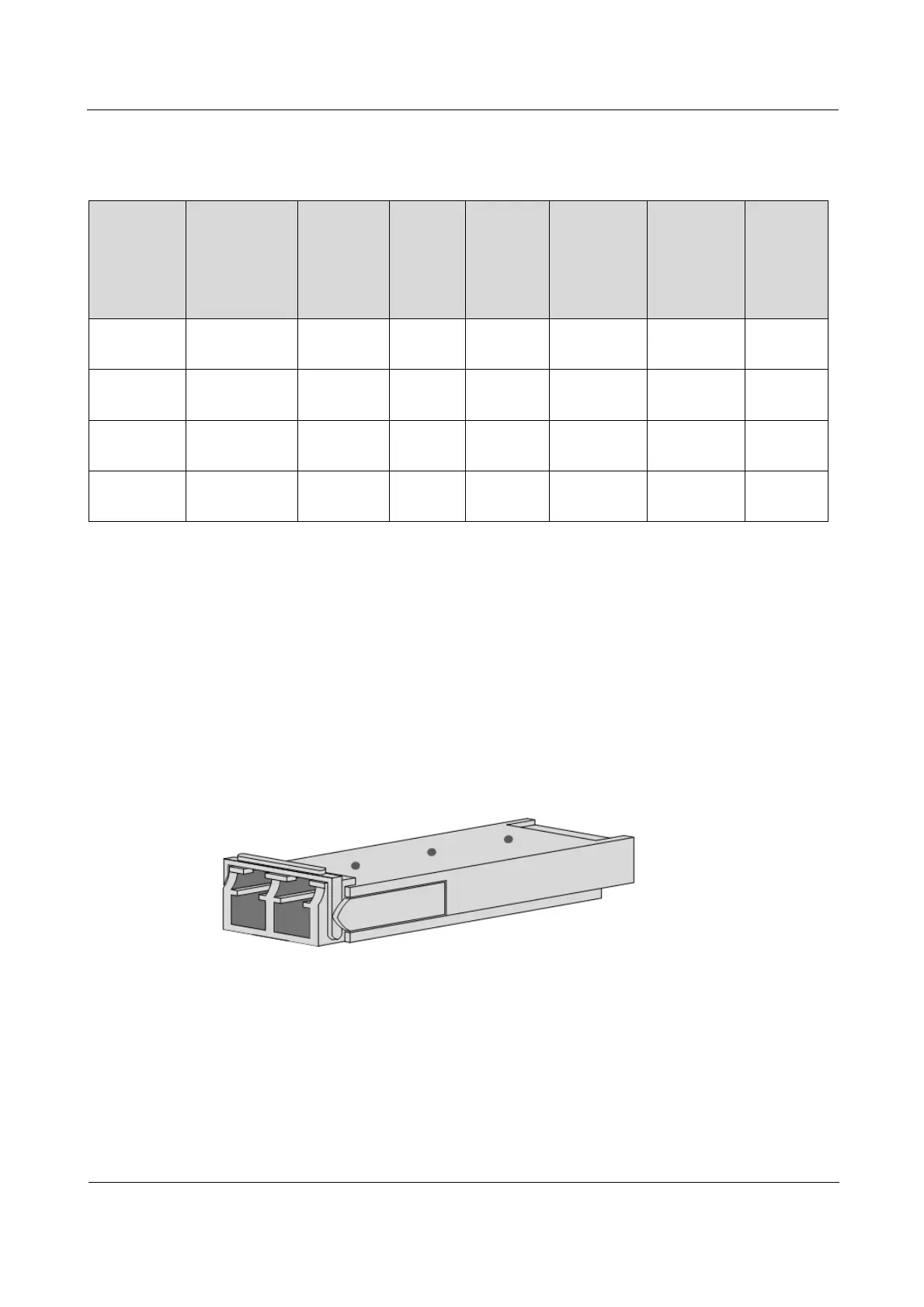

Figure 4-3 shows the appearance of the SFP+ optical module.
Figure 4-3 SFP+ optical module
The 10GE service interface on the ISCOM6820-GP supports the optical module of the
following types:

10GBASE-SX

10GBASE-LX
4.2.2 Technical specifications
Table 4-4 lists technical specifications of the SFP+ optical interface.
