2.2 Main control uplink card (MCUA)
2.2.1 Introduction
The MCUA card is the main service uplink unit of the ISCOM6820-GP. It provides two 10GE
optical interfaces (SFP+) and supports managing and maintaining the ISCOM6820-GP
through the SNMP interface and Console interface.
2.2.2 Panel and slots
The MCUA card can be inserted into slot 1 and slot 2 only.

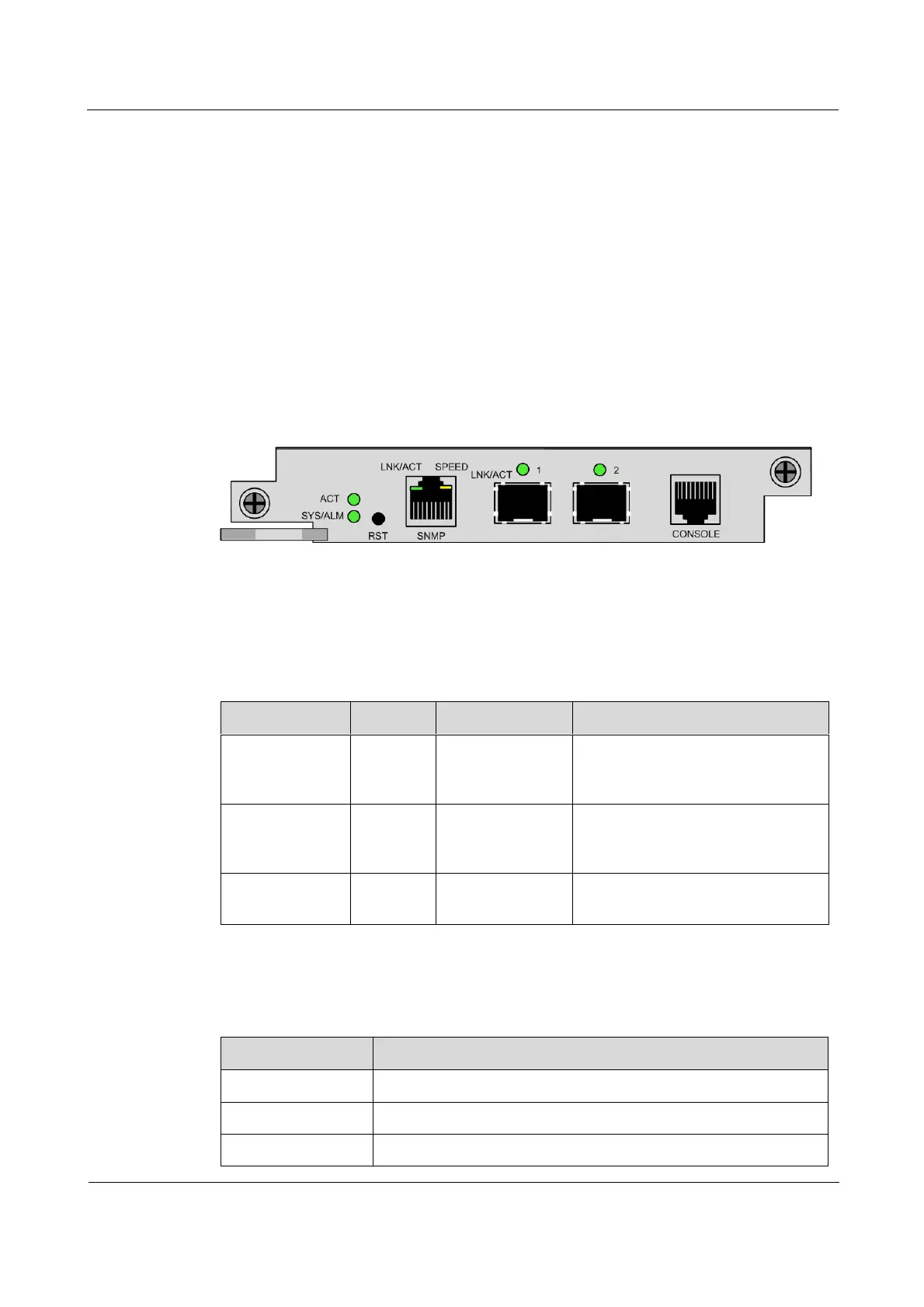

Figure 2-8 shows the panel of the MCUA card.
Figure 2-8 Panel of the MCUA card
2.2.3 Interfaces
There are 4 interfaces on the MCUA card.
Table 2-3 lists interfaces on the MCUA card.
Table 2-3 Interfaces on the MCUA card
Local
management
interface
Remote network
management
interface
10/100/1000BASE-T adaptive
electrical interface
10 Gbit/s Ethernet
service interface
Available optical module:
10GBASE-LX/SX
Table 2-4 lists parameters of the Console interface.
Table 2-4 Parameters of the Console interface
