ISCOM6820-GP (A) Hardware Description
3 Fiber and cables
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
28

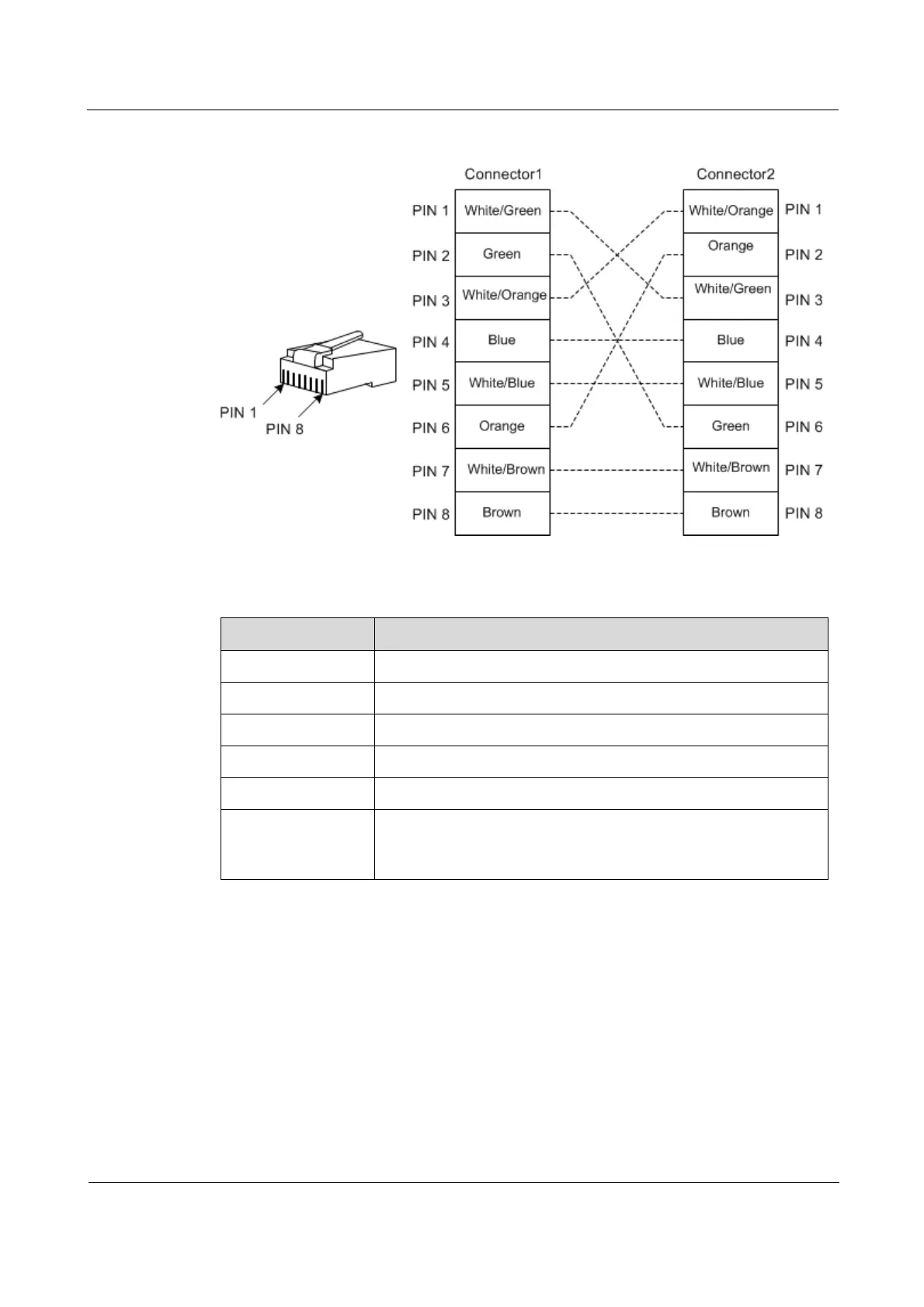

Figure 3-6 Wiring of crossover cable
Table 3-6 lists technical specifications of the Ethernet cable.
Table 3-6 Technical specifications of the Ethernet cable
Parameter
Description
Name
CBL-ETH-RJ45/RJ45-D
Color
Dark gray
Model
UTP-3, UTP-5, or STP
Connector
RJ45
Number of cores
8
Length
The letter D indicates the length, which can be customized. For
example, if the customer requires 2-meter cables, they are named
CBL-ETH-RJ45/RJ45-2m/RoHS.
3.3 Configuration cable
The configuration cable is used to connect the Console interface of the ISCOM6820-GP and
the RS-232 serial interface of the maintenance console, and transmit configuration data
signals. The maintenance console troubleshoots and maintains the ISCOM6820-GP through
the Console interface.
The configuration cable is a 4-core UTP cable. Connectors at the two ends are:

RJ45 connector: connect the Console interface of the ISCOM6820-GP.

DB9 female connector: connect the RS-232 serial interface of the maintenance console.
