ISCOM6820-GP (A) Hardware Description
3 Fiber and cables
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
27

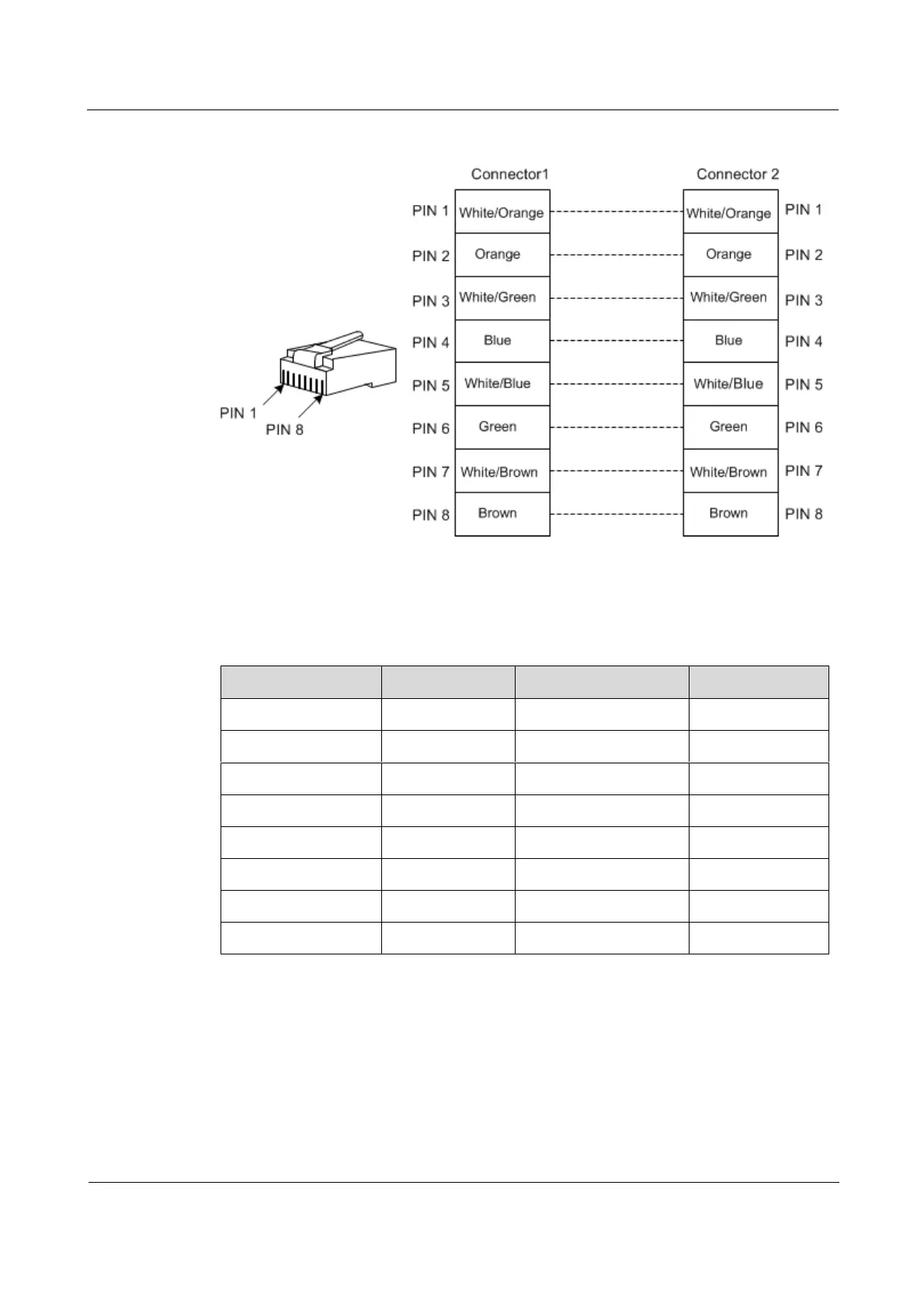

Figure 3-5 Wiring of straight-through cable
Crossover cable
Table 3-5 lists the wiring of the crossover cable.
Table 3-5 Wiring of crossover cable
Connector 1 (RJ45)
EIA/TIA568A
Connector 2 (RJ45)
EIA/TIA568B
PIN 1
White/Green
PIN 1
White/Orange
PIN 2
Green
PIN 2
Orange
PIN 3
White/Orange
PIN 3
White/Green
PIN 4
Blue
PIN 4
Blue
PIN 5
White/Blue
PIN 5
White/Blue
PIN 6
Orange
PIN 6
Green
PIN 7
White/Brown
PIN 7
White/Brown
PIN 8
Brown
PIN 8
Brown
Figure 3-6 shows wiring of the crossover cable.
