ISCOM6820-GP (A) Hardware Description
3 Fiber and cables
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
30
Table 3-8 PINs of the RJ45 Ethernet interface
PIN
Function
PIN
Function
PIN 1
NC
PIN 5
GND
PIN 2
NC
PIN 6
TxD
PIN 3
RxD
PIN 7
NC
PIN 4
GND
PIN 8
NC
3.4 DC power cable
3.4.1 Introduction
The DC power cable supplies -48 VDC power from the power souring equipment to the
power interface on the RPD1302 module of the ISCOM6820-GP, and then transmits power to
the entire device.
3.4.2 Appearance

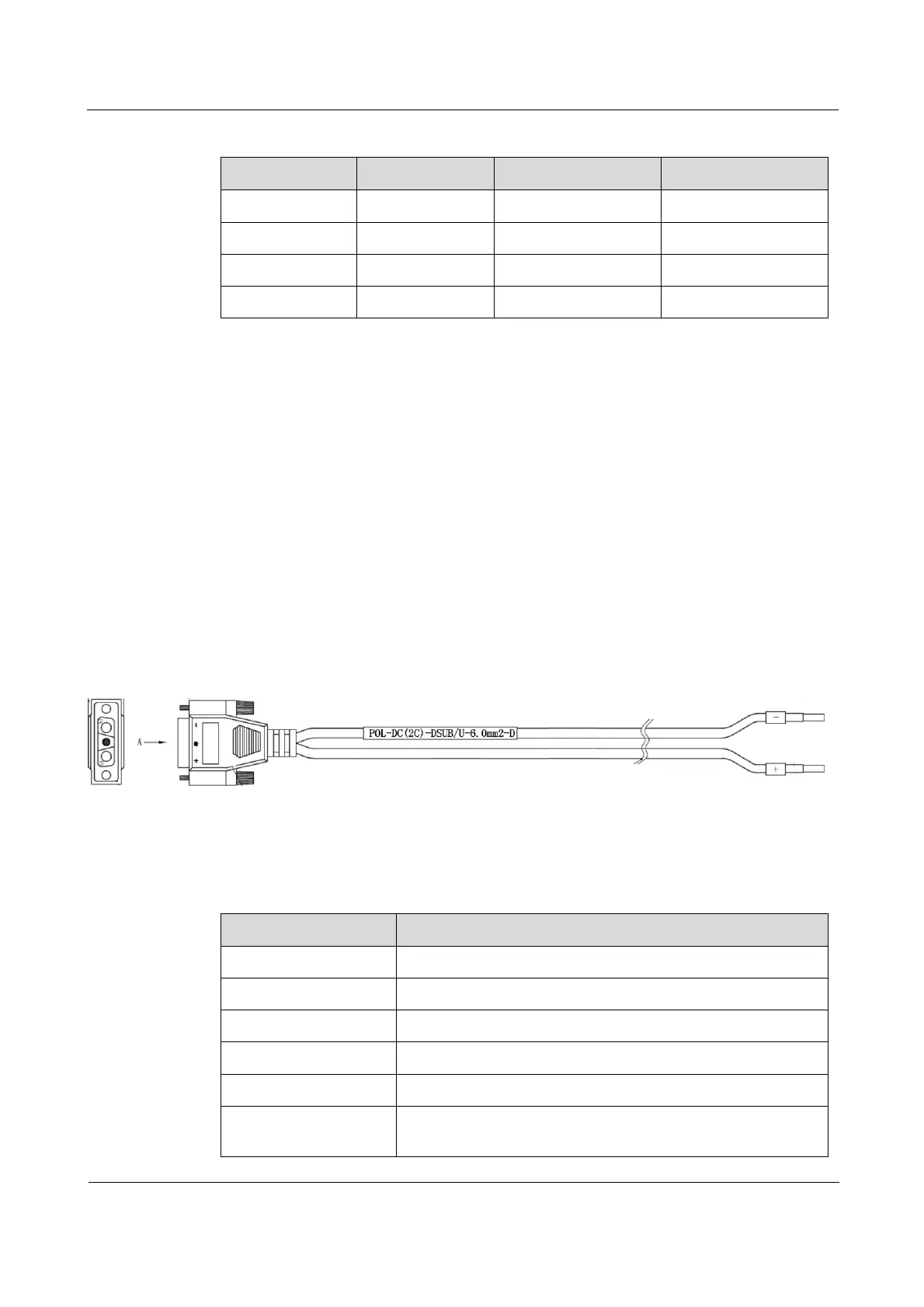

The DC power cable is composed of the DC power connector and coaxial cable, as shown in
Figure 3-9.
Figure 3-9 DC power cable
3.4.3 Technical specifications
Table 3-9 lists technical specifications of the DC power cable.
Table 3-9 Technical specifications of the DC power cable
Parameter
Description
Name
POL-DC(2C)-DSUB/U-6.0mm
2
-D/RoHS
Connector A
DSUB power connector-weld line-3 core (hole + pin + hole)
Positive wire
60227 IEC 02 (RV) red (6mm
2
) with flame retardant tube
Negative wire
60228 IEC 02 (RV) black (6mm
2
) with flame retardant tube
Rated voltage (V)
450/750
Insulation and voltage
resistance (cable)
2500 VAC, 5min
