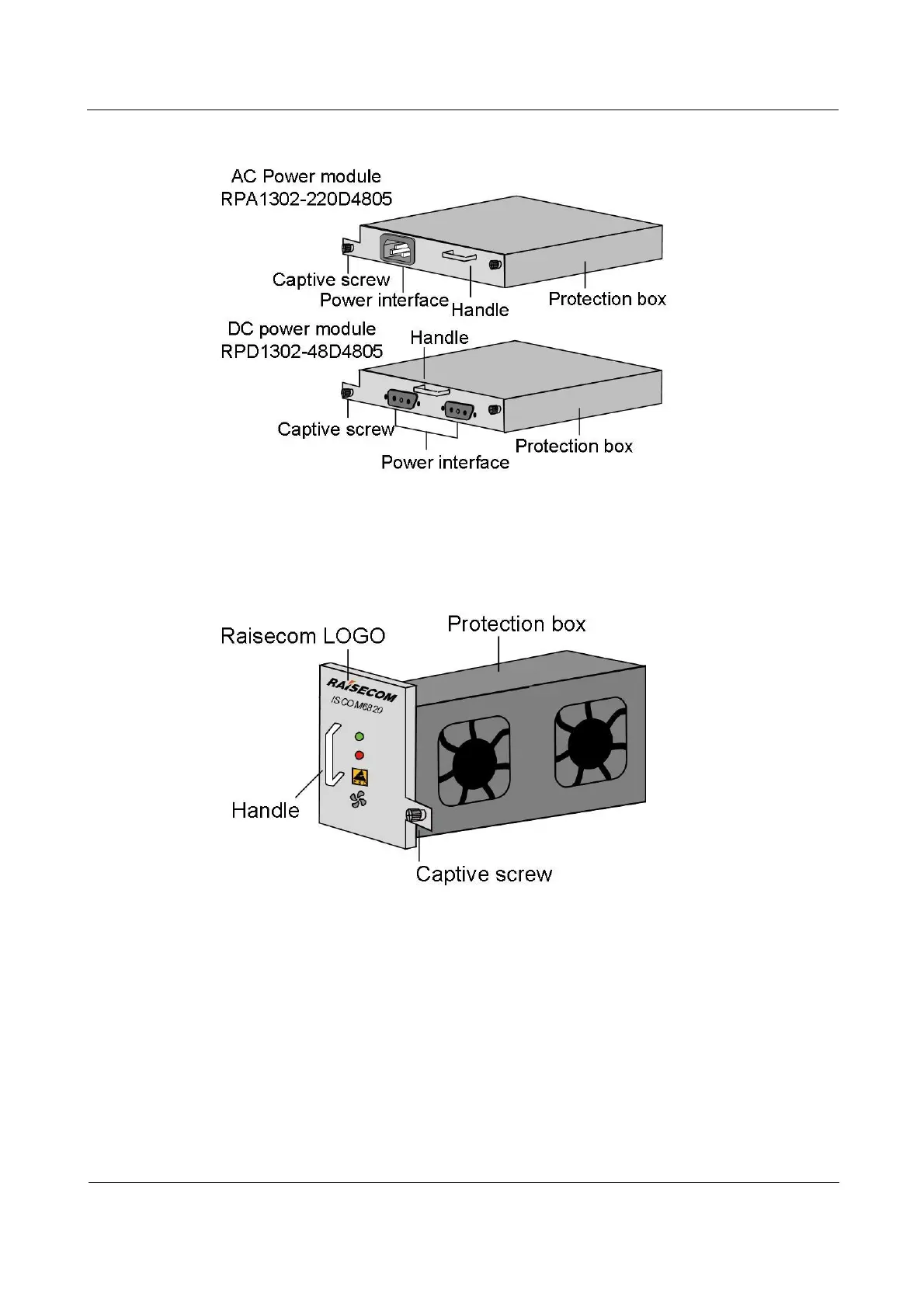

Figure 2-5 Appearance of the power module
Appearance of fan module
Figure 2-6 shows the appearance of the fan module.
Figure 2-6 Appearance of the fan module
2.1.3 Hardware information label
Hardware information of ISCOM6820-GP components is pasted on the eye-catching position
of the Printed Circuit Board (PCB) to facilitate viewing it, as shown in Figure 2-7.
