Operation Quantron E
49
4
The number of impulses of the speed signal must still be specified below. If you
know the exact number of impulses you can enter it directly:
7. Highlight the Imp/100m submenu and press the Enter key.
The Impulses menu is displayed for manual input of the number of im-
pulses.
Input of values into the operator panel is described in section 4.9.2:
Input of val-
ues using the cursor keys, page 76.
If you do not know the exact number of impulses, you can start the calibration run.
8. Highlight the submenu Imp/100m
9. Press the function key F4 (Auto).
The calibration run operating screen is shown in the display.

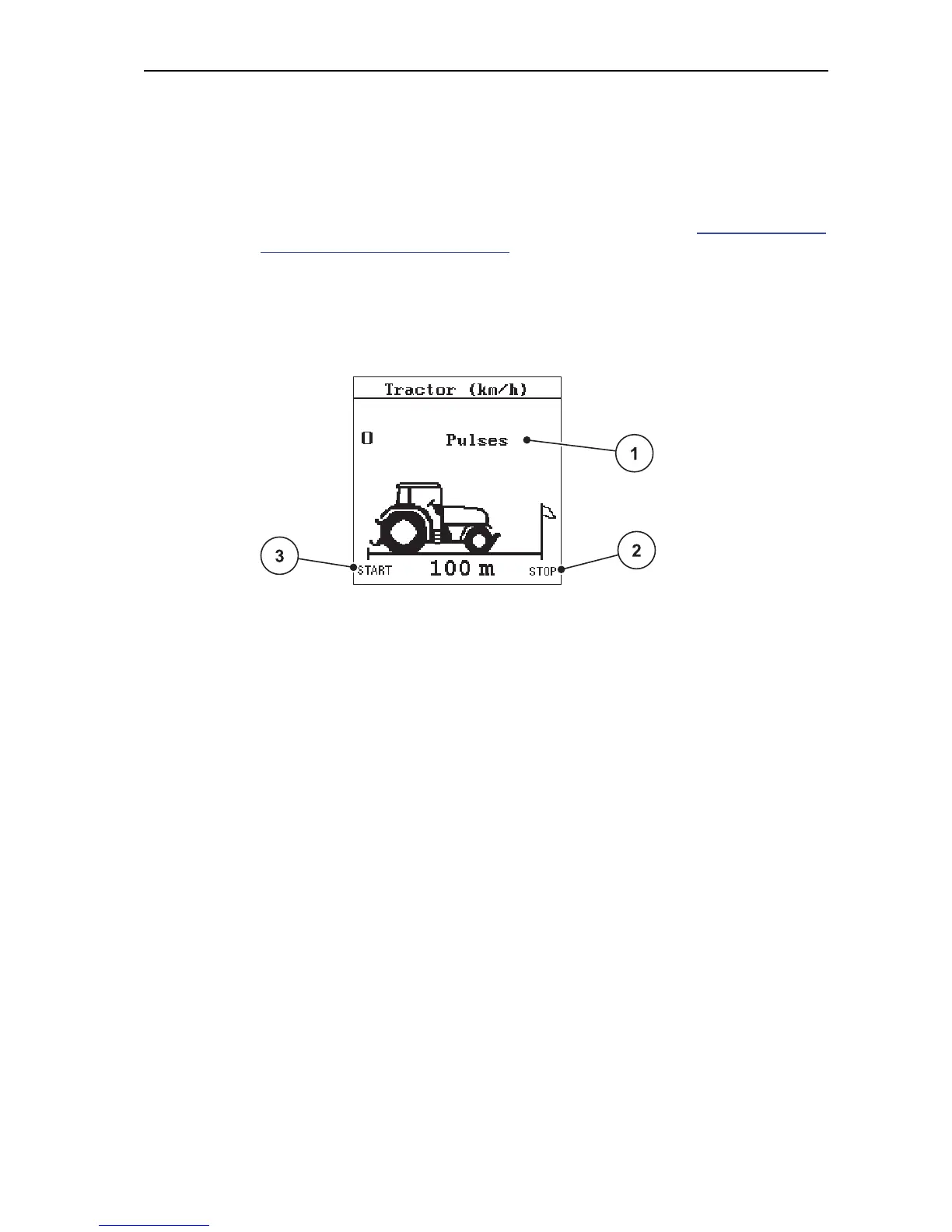

Figure 4.23:Calibration run speed signal operating screen
[1] Impulse display
[2] Stop recording impulses
[3] Start recording impulses
10. At the start of the reference distance press the function key F1 below the
Start icon.
The impulse display is set to zero.
The control unit is ready for counting impulses.
11. Drive the 100 m reference distance. Stop the tractor at the end of the refe-
rence distance.
12. Press the function key F4 below the Stop icon.
The display shows the number of received impulses.
13. Press the Enter key.
The new impulse count is saved. This returns you to the Calibration menu.
14. Press the ESC key to return to the previous menu
or
Press the Menu key to return to the Operating Screen.
