Raven ISO Product Controller II User Manual

P/N 016-0171-584-H 95

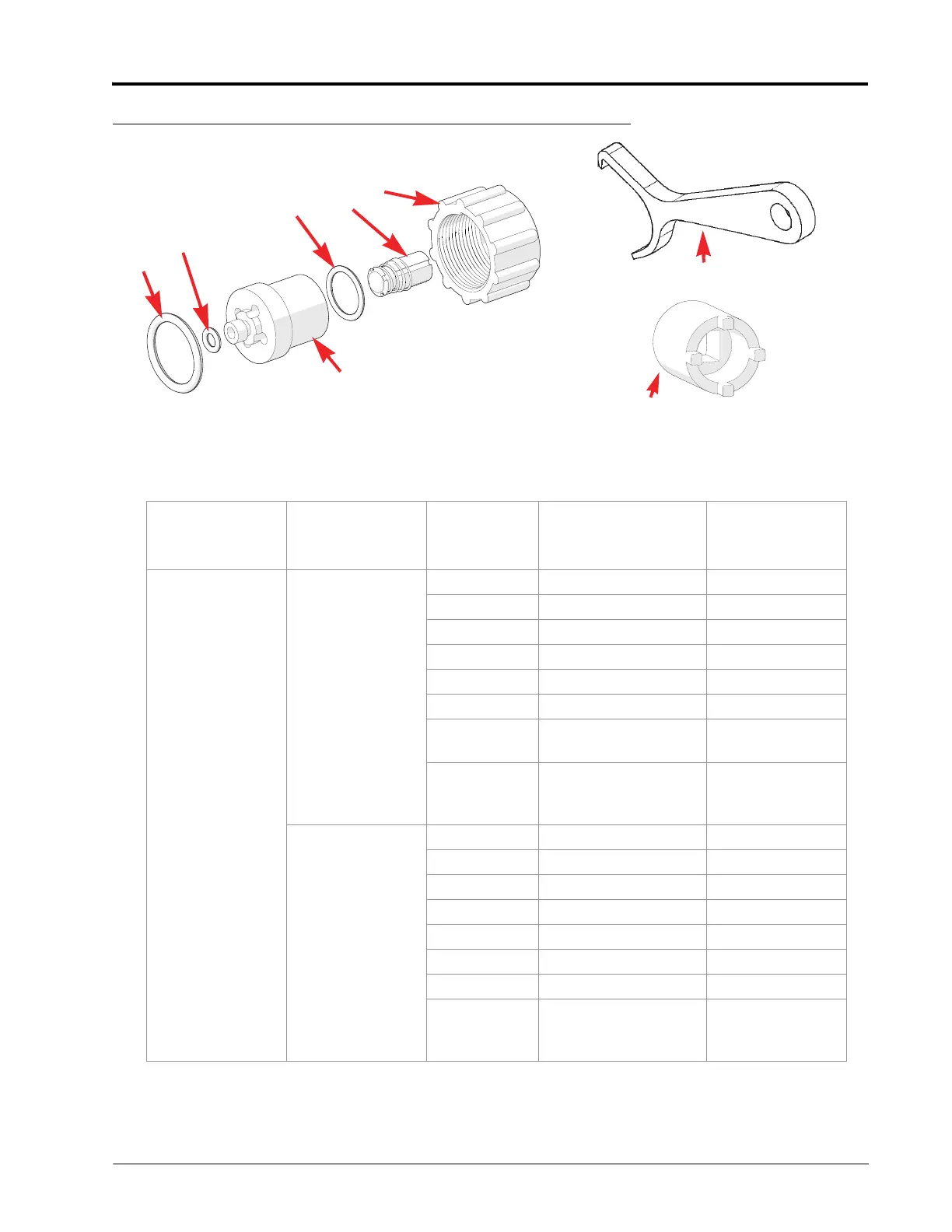

FIGURE 1. Seal Replacement Kits and Valve Body Assembly
TABLE 2. Nozzle Control Valve Seal Replacement Kit Components
NCV Type
Manufacturer
Part Number
Number on
Figure 1
NCV Replacement
Component
NCV Component
Replacement
Part Number
Hypro/Arag
063-0173-673
1 Fly Nut 117-1005-213
2 Plunger Assembly N/A
3O-Ring N/A
4 Stainless Valve Body 107-1005-003
5 Outlet Seal 219-1005-001M
6 O-Ring 219-1005-115M
2, 3, 5, 6
Replacement Seal Kit -
Quantity of 100
117-1005-211
1, 2, 3, 5, 6
Single NCV Seal
Replacement Kit -
Quantity of 1
117-1005-051
063-0173-810
1 Fly Nut 117-1005-214
2 Plunger Assembly N/A
3O-Ring N/A
4 Stainless Valve Body 107-1005-003
5 Outlet Seal 219-1005-002M
6 O-Ring 219-1005-115M
2, 3, 5, 6 Replacement Seal Kit 117-1005-211
1, 2, 3, 5, 6
Single NCV Seal
Replacement Kit -
Quantity of 1
117-1005-051
1
2
3
4
5
6
Valve Body Removal Tool
(Replacement P/N 321-0000-457)
Fly Nut Wrench
(Replacement P/N 321-0000-459)
