RED DSMC OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0020_V5.2, REV-G | 15
BRAIN
The BRAIN is the image processing center of the DSMC system and supports power, media, and other modules.
BRAIN CONTROL: PWR/REC BUTTON
Fully press and hold the PWR/REC button for two (2) seconds to turn on/off.
When the DSMC is on, fully press and then release the PWR/REC button to toggle record start/stop.
BRAIN LEDS
This section describes the LED functions for all BRAINs.
LED COLOR/FLASHING DESCRIPTION
Power Status LED
(PWR)
Off No power present
Green Power present; camera on
Red flashing Power present; < 5 min of battery time left
Red Power present; camera off
Amber flashing Power present; 5–10 min of battery time left
Amber Power present; camera booting
Record Status LED
(REC)
Off No media present
Green Ready to record
Red flashing (slow) Recording; 25% media left
Red flashing (fast) Recording; 5% media left
Red Recording
Amber Finalizing
Power Status LED (PWR)
and Record Status LED (REC)
Both green flashing Firmware update in progress
Both red flashing Firmware update error

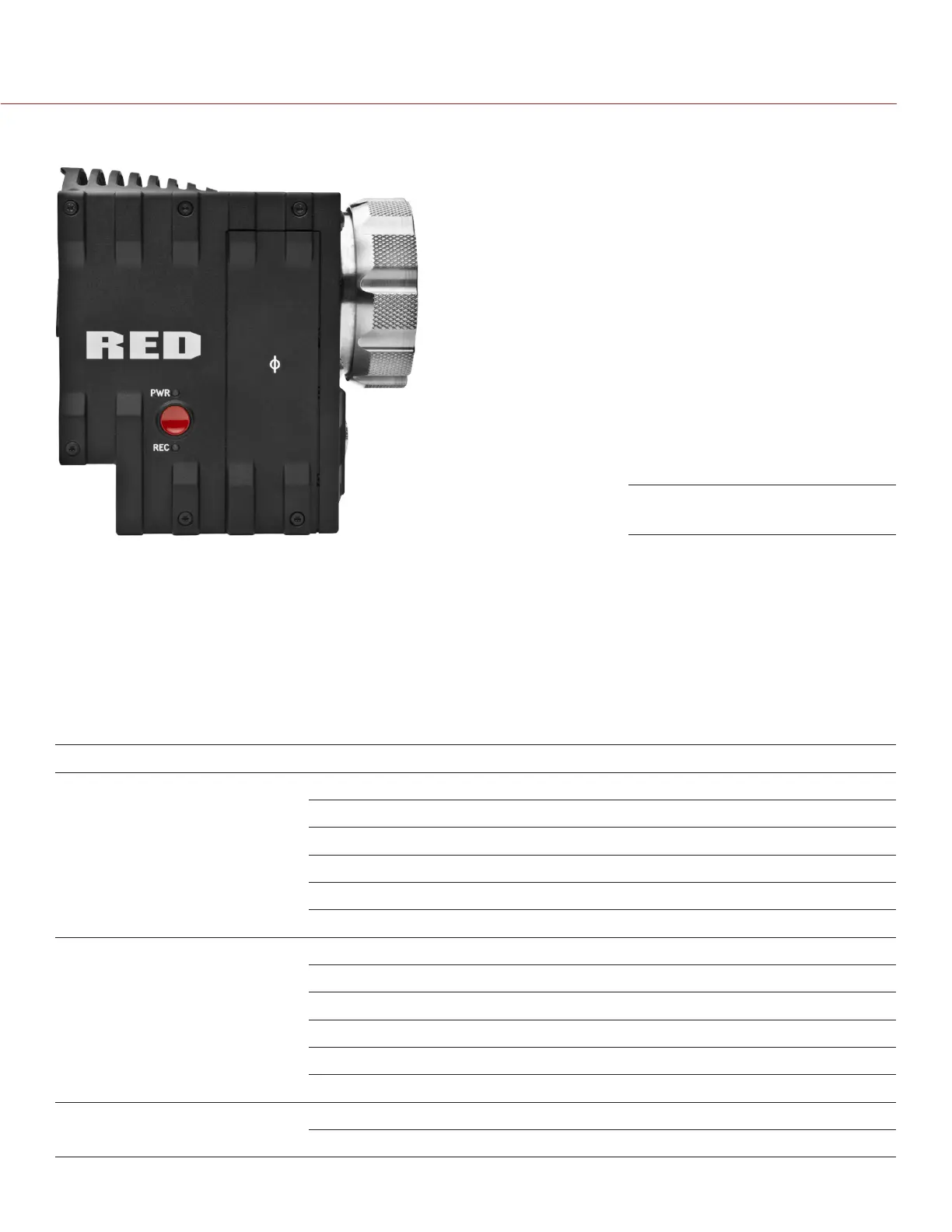

EPIC BRAIN (Side)
