NAVIGATION CONTROLS
This section describes basic controls for navigating the DSMC menus.
TOUCHSCREEN NAVIGATION

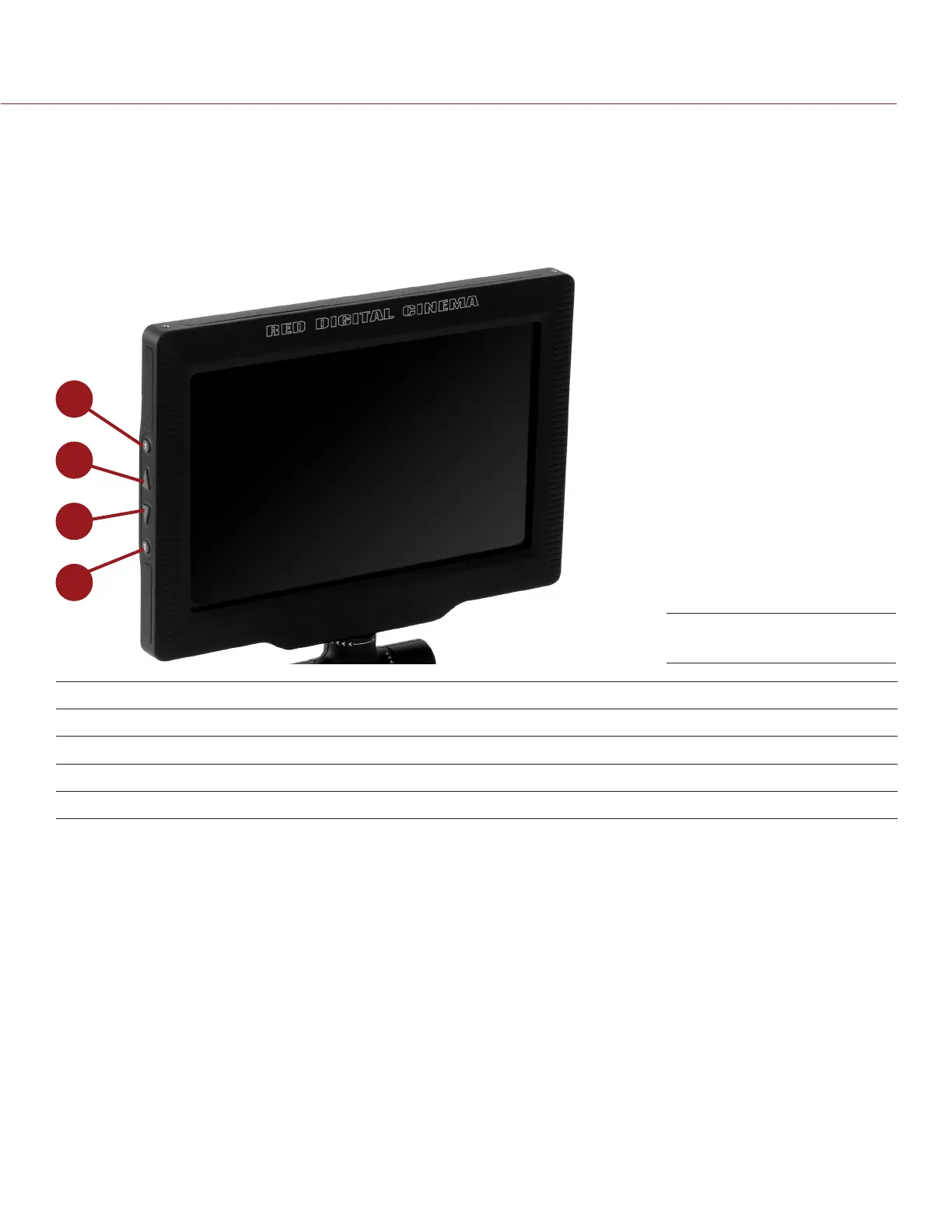

RED Touch displays offer intuitive menu control and four (4) user programmable buttons.
1
2
3
4
# RED TOUCH BUTTON DESCRIPTION
1 User Key 1 Toggle 1:1 Magnify on/off
2 Up Button Increase display brightness
3 Down Button Decrease display brightness
4 User Key 2 Toggle Exposure Mode on/off
Navigate the menus using a touchscreen by using the following gestures:
Tap: Tap has many functions:
‒ Tap to select a Basic Menu, submenu, or button.
‒ If a menu is open, tap anywhere outside the menu to save any changes and close the menu.
‒ Tap the right or left regions of the touchscreen to access the user programmable soft keys.
Swipe: Swipe your finger to select different values in spinners or drop-down menus.
Double-Tap: If the monitor is in Clean mode, changes to Overlay mode.
Hold: Tap and hold on an icon to bring up an advanced interface display.
Pinch: Touch with two (2) fingers, then open or close to magnify or normalize the image. By default, this
gesture is disabled.
For more information, go to “Gestures” on page 66.
