COPYRIGHT © 2014 RED.COM, INC
RED DSMC OPERATION GUIDE
955-0020_V5.2, REV-G | 48

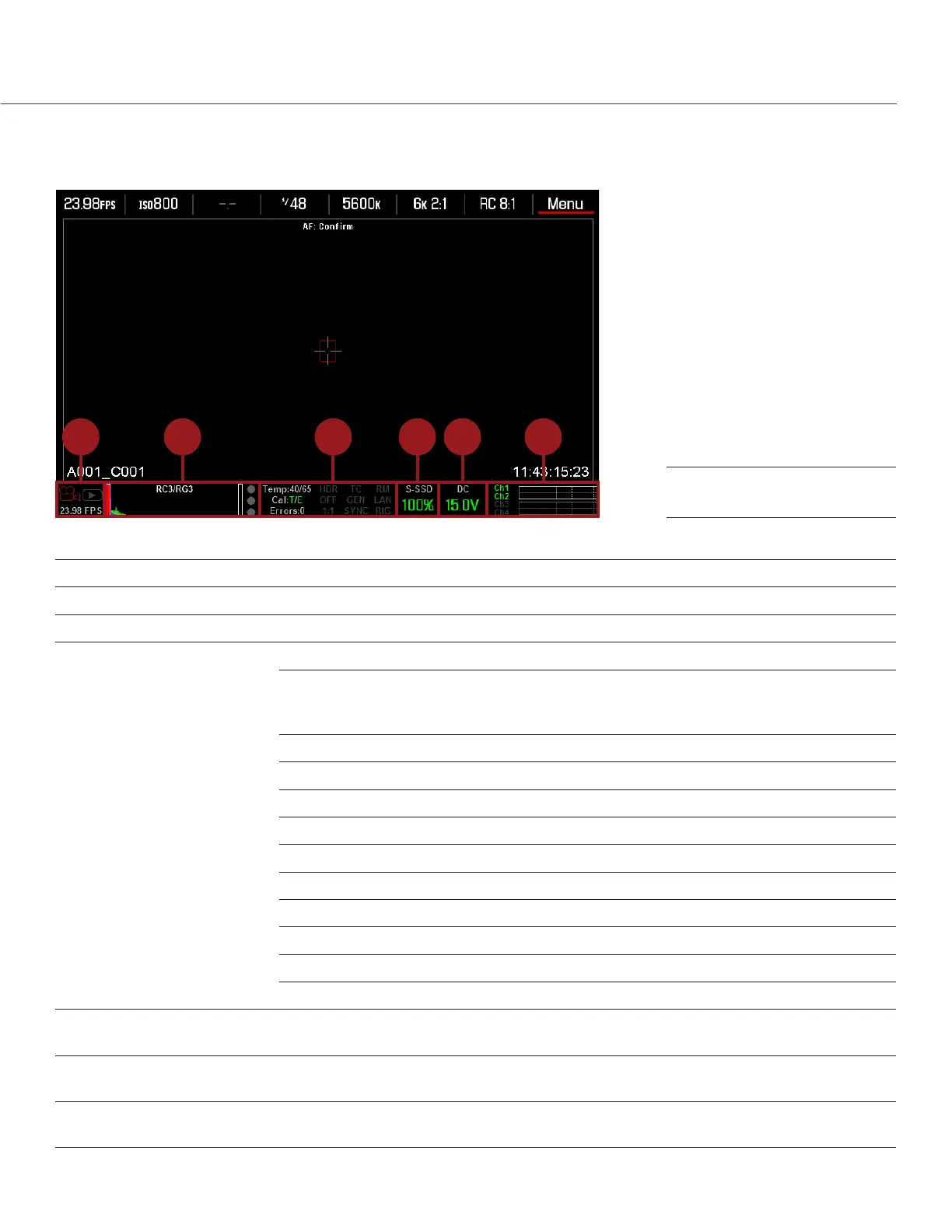

LOWER STATUS ROW
The Lower Status Row provides access to key system information and camera values.
1 3 5 62 4
The Lower Status Row provides key system information and camera values, including:
# LOWER STATUS ROW ITEM SUB-ITEM/DESCRIPTION FOR MORE INFORMATION, GO TO...
1 Record/Playback Mode Tap to toggle Record/Playback modes N/A
2 Histogram Histogram; tap to access the Tools menu “Histogram” on page 49
3 System Status
Indicators
Tap to access the System Status menu “System Status” on page 108
Temperature: Camera sensor and core
temperature, respectively
“Fan and Temperature Management”
on page 95
“Sensor Calibration” on page 98
Cal: T/E “CAL: T/E Indicator” on page 49
HDR: Displays when HDRx mode is on “HDR Menu” on page 114
False Color Mode: Displays modes “False Color Modes” on page 58
Magnify: Tallies 1:1 if magnify is selected “Magnify” on page 60
Timecode “TC Indicator” on page 49
Genlock “GEN Indicator” on page 50
Sync “SYNC Indicator” on page 50
RM: Indicates link to REDMOTE “REDMOTE Operation” on page 133
LAN “LAN Indicator” on page 50
RIG: Indicates 3D rig metadata is present N/A
4 Media Status Media location and remaining media
capacity; tap to access the Media Menu
“Media Menu” on page 110
5 Power Status DC voltage in or % of remaining battery
capacity; tap to access the Power menu
“Power Status” on page 50
6 Audio Meter Audio input selection and levels;
tap to access the Audio menu
“Audio Meter Levels” on page 132
Lower Status Row
