UPPER STATUS ROW (BASIC MENU)

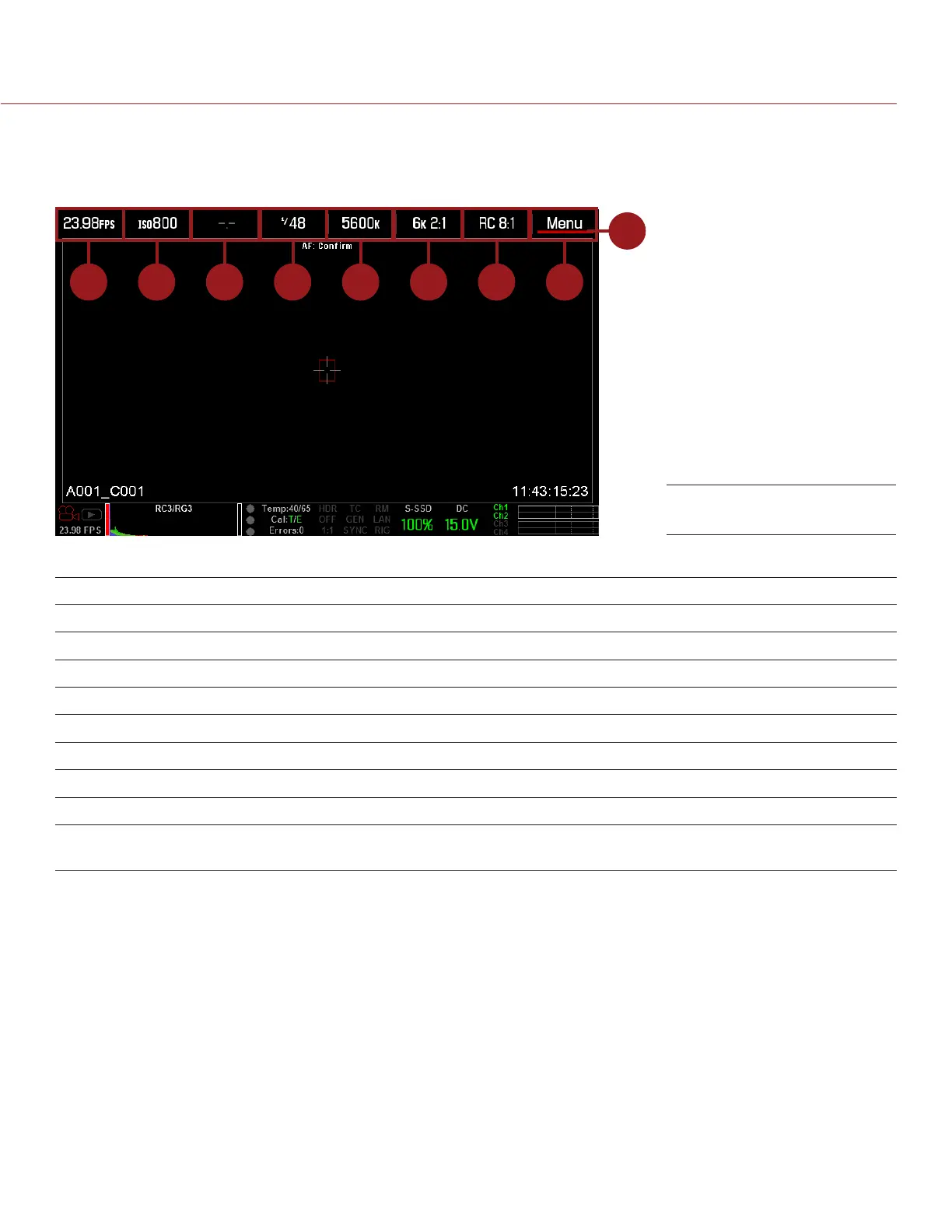

The Upper Status Row displays basic project parameters. The currently selected parameter in the Upper Status
Row is underlined with a red bar. The Upper Status Row is also known as the Basic Menu.
1 52 8763 4
9
The Upper Status Row includes the following GUI elements:
# UPPER STATUS ROW ITEM DESCRIPTION FOR MORE INFORMATION, GO TO...
1 Frame Rate (FPS) Sensor frame rate “Frame Rate” on page 71
2 ISO Camera sensitivity “ISO (Native)” on page 70
3 F Stop (Aperture) Lens F Stop information “F Stop (T Stop)” on page 46
4 Exposure (Shutter) Exposure time or shutter angle “Exposure” on page 77
5 Color Temperature White balance “Color Temperature” on page 71
6 Resolution Record resolution “Format” on page 79
7 REDCODE REDCODE compression setting “REDCODE” on page 46
8 Menu Access advanced settings “Advanced Menus” on page 57
9 Cursor Indicates currently selected Upper
Status Row element
N/A
Upper Status Row
