RED DSMC OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0020_V5.2, REV-G | 179
GIG-E (ETHERNET)
The GIG-E 9-pin 0B LEMO connector provides a 1000BASE-T (IEEE 802.3ab) gigabit Ethernet connection for
remote camera setup, master/slave camera communication, and external metadata ingest. Since the GIG-E
connector does not support slower speeds (10BASE-T and 100BASE-T), ensure that any device you connect
to supports 1000BASE-T.
9
8
7
6
5
4
3
2
1

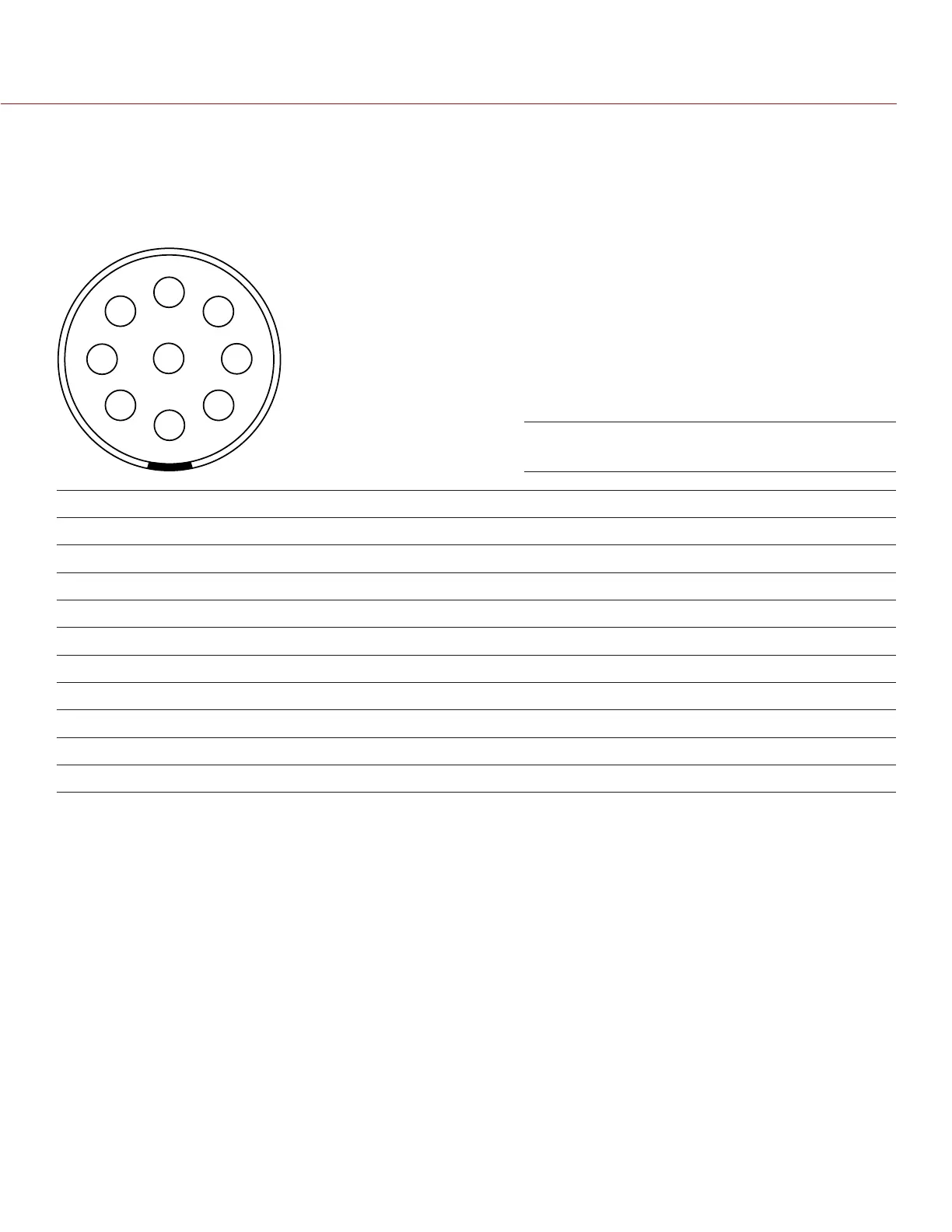

9-PIN 0B LEMO GIG-E CONNECTOR
1
PIN SIGNAL DESCRIPTION DIRECTION
1 B1_DC + Data Pair C+ N/A
2 B1_DC - Data Pair C- N/A
3 B1_DD+ Data Pair D+ N/A
4 B1_DD - Data Pair D- N/A
5 B1_DA- Data Pair A- N/A
6 B1_DA+ Data Pair A+ N/A
7 B1_DB+ Data Pair B+ N/A
8 B1_DB- Data Pair B- N/A
9 N/A Do Not Connect N/A
1. Mating connector: FGG.0B.309.CLAD32Z
COMPATIBLE CABLES
790-0159: LEMO-to-CAT5E Ethernet Cable (9')
790-0163: Master/Slave Gig-E Cable (4')
GIG-E Connector
