COPYRIGHT © 2014 RED.COM, INC
RED DSMC OPERATION GUIDE
955-0020_V5.2, REV-G | 180
DC IN (POWER INPUT)
The 6-pin 1B LEMO connector accepts DC input power from 11.5 V DC to 17 V DC. A built-in power conditioner
protects against reverse-polarity connections, electrostatic discharge (ESD), undervoltage, overvoltage, and
overcurrent.
WARNING: Both pairs of +VBATT and GROUND pins must be wired. Using a third-party power cable that wires
only one (1) pair of +VBATT and GROUND pins may damage the power supply or the DSMC. Damage to the
power supply or other components of the DSMC system caused by using an inappropriate power cable is not
covered under warranty.
6
5
4
3
2
1

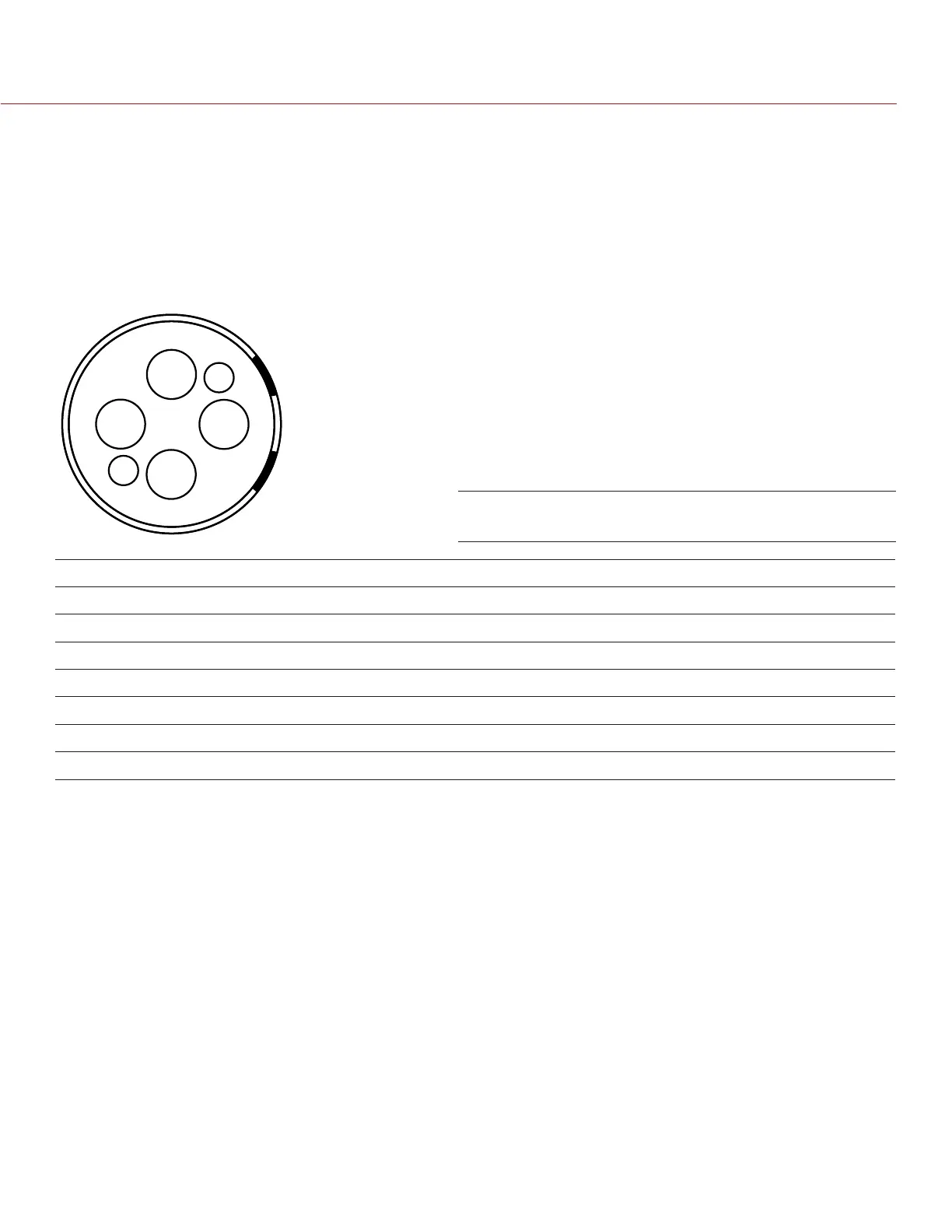

6-PIN 1B DC INPUT CONNECTOR
1
PIN SIGNAL DESCRIPTION
1 +VBATT Power input, +11.5 to +17 V DC
2 +VBATT N/A
3 SCL-BATT Serial Battery Bus Clock
4 GROUND Power Return (Camera Ground)
5 GROUND N/A
6 SCA-BATT Serial Battery Bus Data
1. Mating connector: LEMO FGJ.1B.306.CWLD72Z
COMPATIBLE CABLES
790-0138: 2B-to-1B LEMO Power Adaptor Cable
790-0164: XLR Power Cable (10')
790-0165: XLR Power Cable (30")
DC In Power Input Connector
