RED DSMC OPERATION GUIDE

CONFIGURE YOUR DSMC

This section describes common options for configuring your DSMC system.

INSTALL THE DSMC SIDE HANDLE

WARNING: Before installing or removing the DSMC Side Handle, you MUST turn off the BRAIN.

REQUIRED TOOL: T10 Torx

driver

1. Turn off the BRAIN.

2. Use a T10 Torx driver to remove the single screw located at the bottom of the BRAIN side plate (if the side

plate is installed).

3. Rotate the BRAIN side plate upwards to disengage the lip at the top of the side plate from the BRAIN, and

remove the BRAIN side plate.

4. Insert the lip on the DSMC Side Handle into the slot where the lip of the BRAIN side plate was installed.

5. Press the DSMC Side Handle down flush along the side of the BRAIN.

6. Rotate the thumbscrew upward while applying steady pressure until tight.

REMOVE THE DSMC SIDE HANDLE

WARNING: Before installing or removing the DSMC Side Handle, you MUST turn off the BRAIN.

REQUIRED TOOL: T10 Torx driver

1. Turn off the BRAIN.

2. Rotate the thumbscrew downward until the DSMC Side Handle detaches from the camera body.

3. Disengage the tension lip on the DSMC Side Handle by pulling the bottom away from the BRAIN.

4. Insert the tension lip on the BRAIN side plate into the recess on the side of the BRAIN.

5. Install the appropriate screw at the bottom of the BRAIN side plate using a T10 Torx driver. DO NOT exceed

70 in-oz, or damage may occur.

‒ EPIC side plate screw: M3x0.5 x 8 mm

‒ SCARLET side plate screw: M3x0.5 x 5.5 mm

WARNING: DO NOT OVERTIGHTEN.

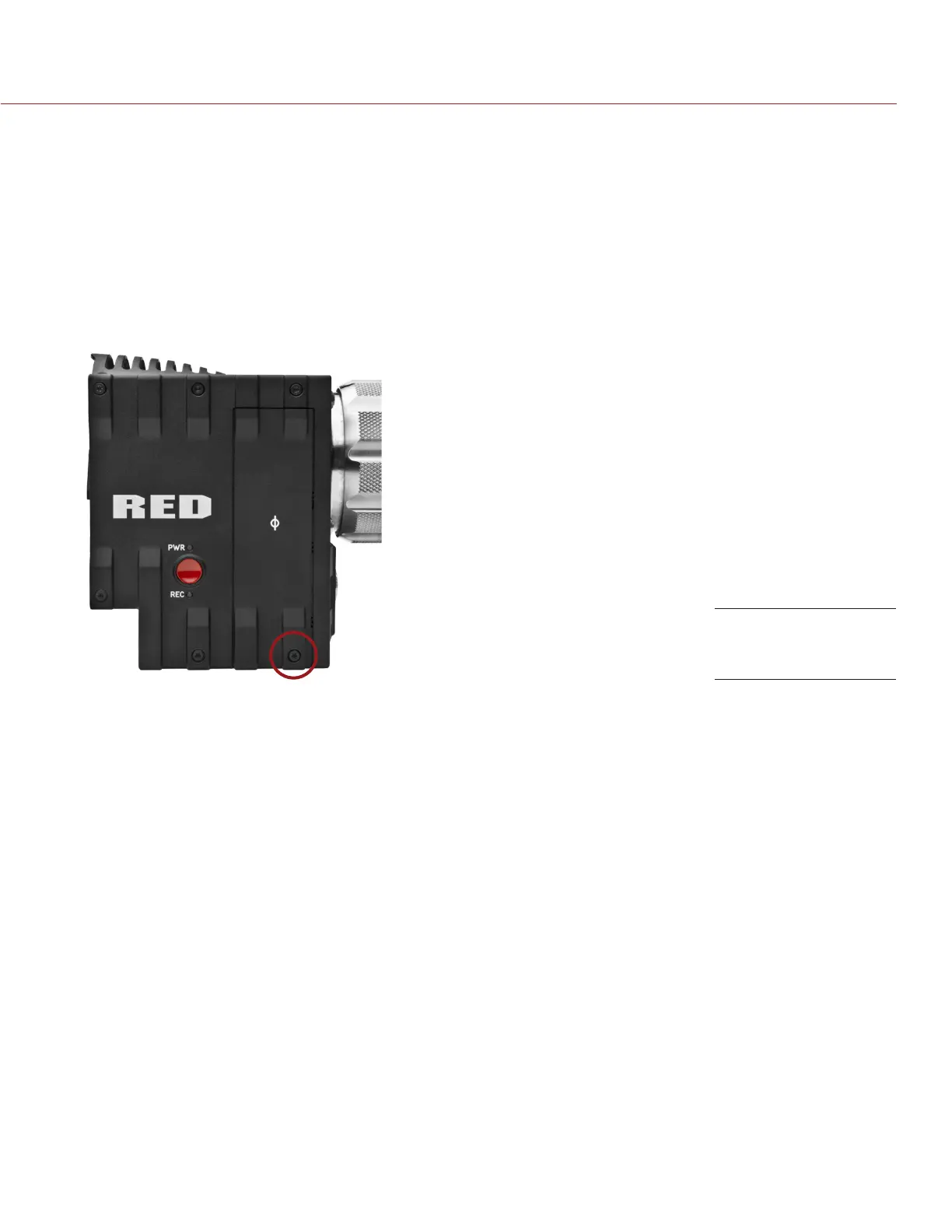

Remove the BRAIN

side plate
