RED DSMC OPERATION GUIDE

955-0020_V5.2, REV-G | 174

3 4 5 6 7 8 9

# CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO...

1 REDMOTE

Dock 8-point POGO “REDMOTE Operation” on page 133

2 Module Power SEARAY “Power Inputs” on page 31

3 HD-SDI BNC “HD-SDI Out” on page 175

4 HDMI HDMI “HDMI Out” on page 176

5 Headphone Jack 3.5mm stereo “Headphone” on page 176

6 SYNC 4-pin 00 LEMO “SYNC (Video Sync In)” on page 177

7 CTRL 4-pin 00 LEMO “CTRL (RS232 Control)” on page 178

8 GIG-E 9-pin 0B LEMO “GIG-E (Ethernet)” on page 179

9 DC IN 6-pin 1B LEMO “DC IN (Power Input)” on page 180

10 MIC-1, MIC-2 (Front) 3.5 mm stereo “MIC-1, MIC-2 (Microphone Audio)” on page 181

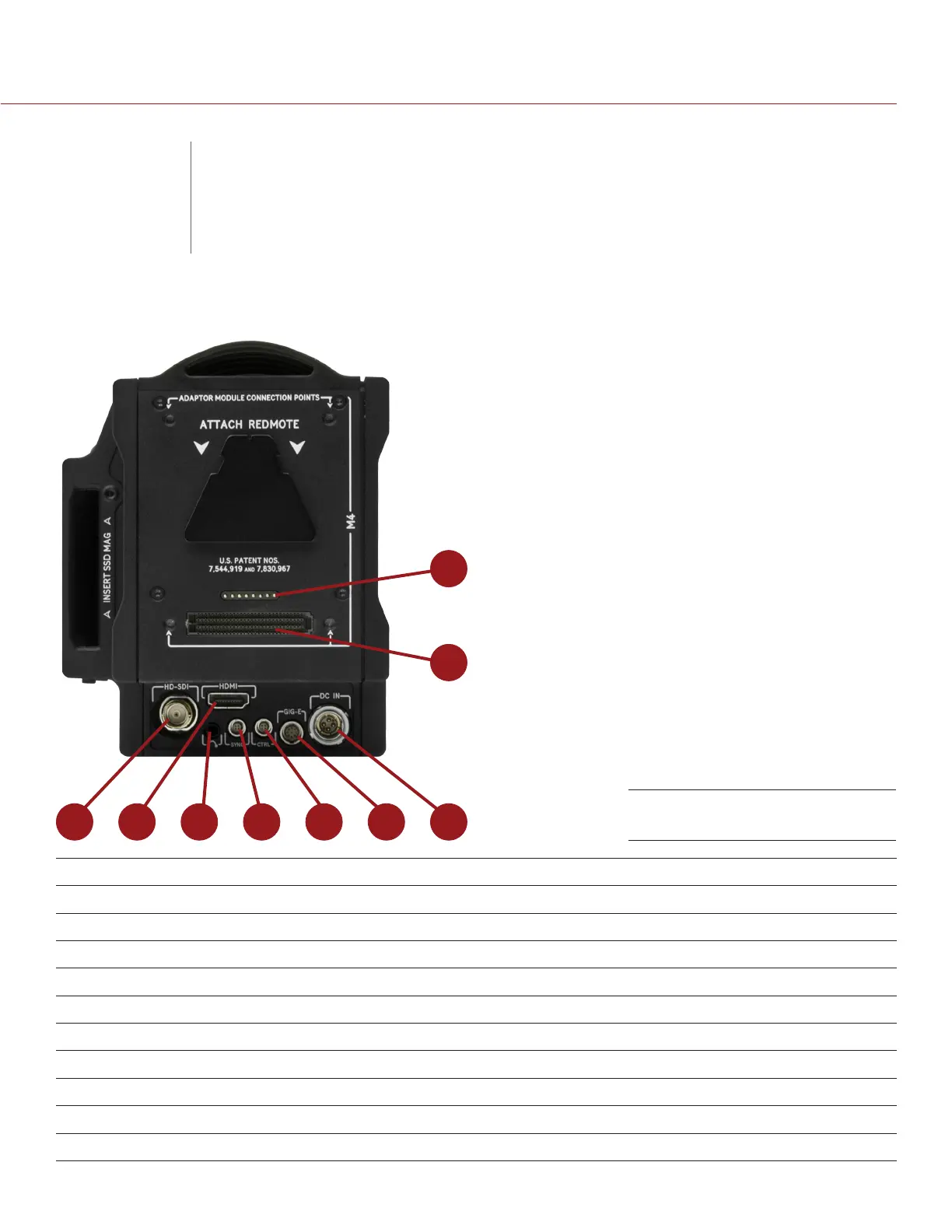

DSMC Connectors (Rear)

INPUT/OUTPUT

CONNECTORS
