RED DSMC OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0020_V5.2, REV-G | 19
DSMC ADAPTOR MODULES
This section describes the DSMC adaptor modules.
DSMC adaptor modules enable you to connect other DSMC modules to the BRAIN for expandable functionality.
The +1 Adaptor Module provides an auxiliary power port for accessories and an additional EVF/LCD port for
additional monitor viewing and output.
Both adaptor modules also offer additional 1/4-20 mounting points on top for configuration support. Most
DSMC modules require a Module Adaptor or +1 Adaptor Module to attach to your BRAIN.
For more information, go to “Configure Your DSMC” on page 33.
WARNING: The Module Adaptor is NOT compatible with the +1 Adaptor Module.
WARNING: The +1 Adaptor Module IS NOT compatible with the Module Adaptor.
WARNING: DO NOT use the EVF/LCD port if a Pro I/O Module is connected to the BRAIN.
RED offers the following DSMC adaptor modules:
ITEM PART NUMBER
Module Adaptor 720-0008
+1 Adaptor Module
1
720-0018
1. The +1 Adaptor Module requires that your DSMC is on firmware v4.08 or later.

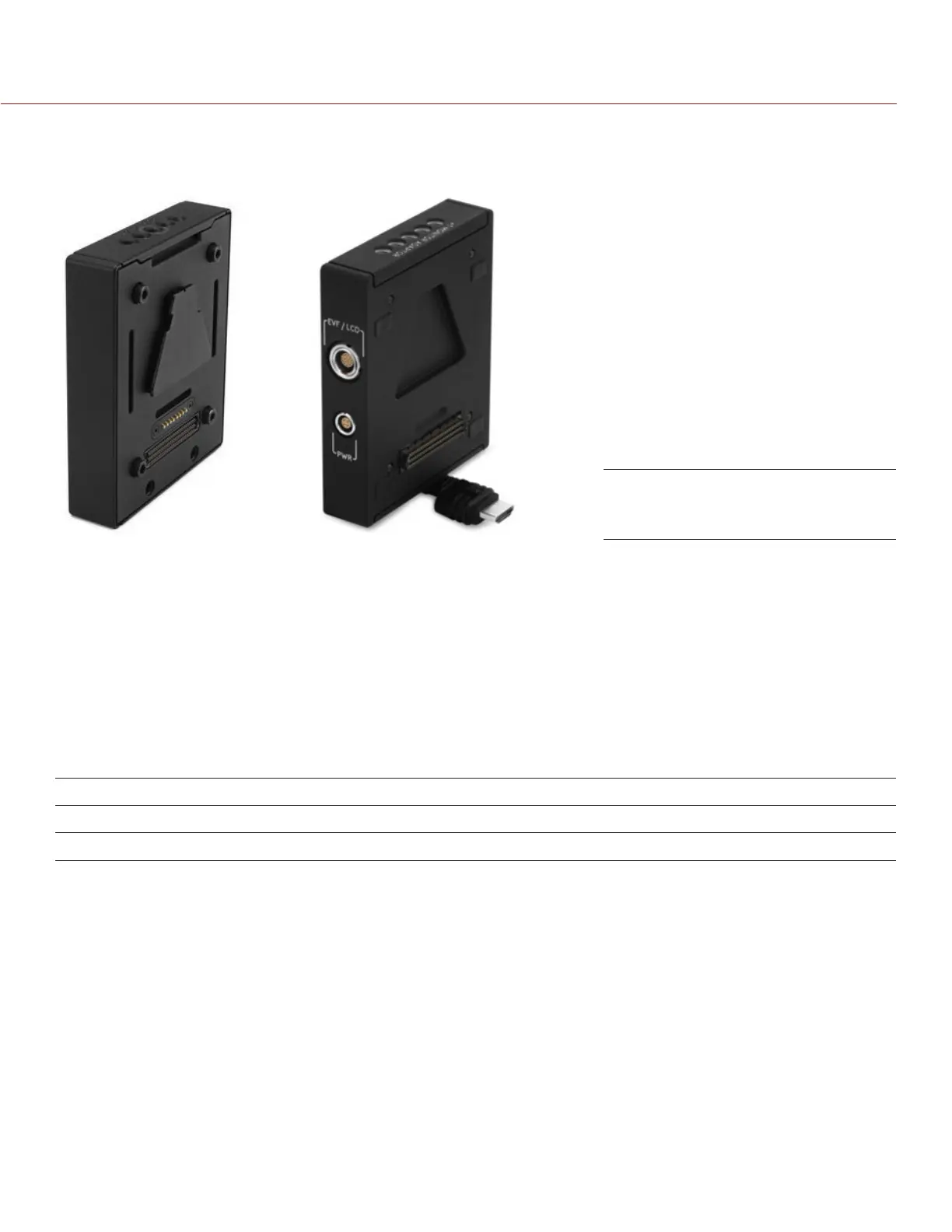

Module Adaptor (left) and
+1 Adaptor Module (right)
