BRIGHTNESS
Control the brightness of each LCD and EVF. Move to the right for a brighter display; move to the left for a
dimmer display.
NOTE: A rear LCD/EVF is an LCD/EVF that is plugged into any rear RED module, such as the +1 Adaptor Module
or the Pro I/O Module.

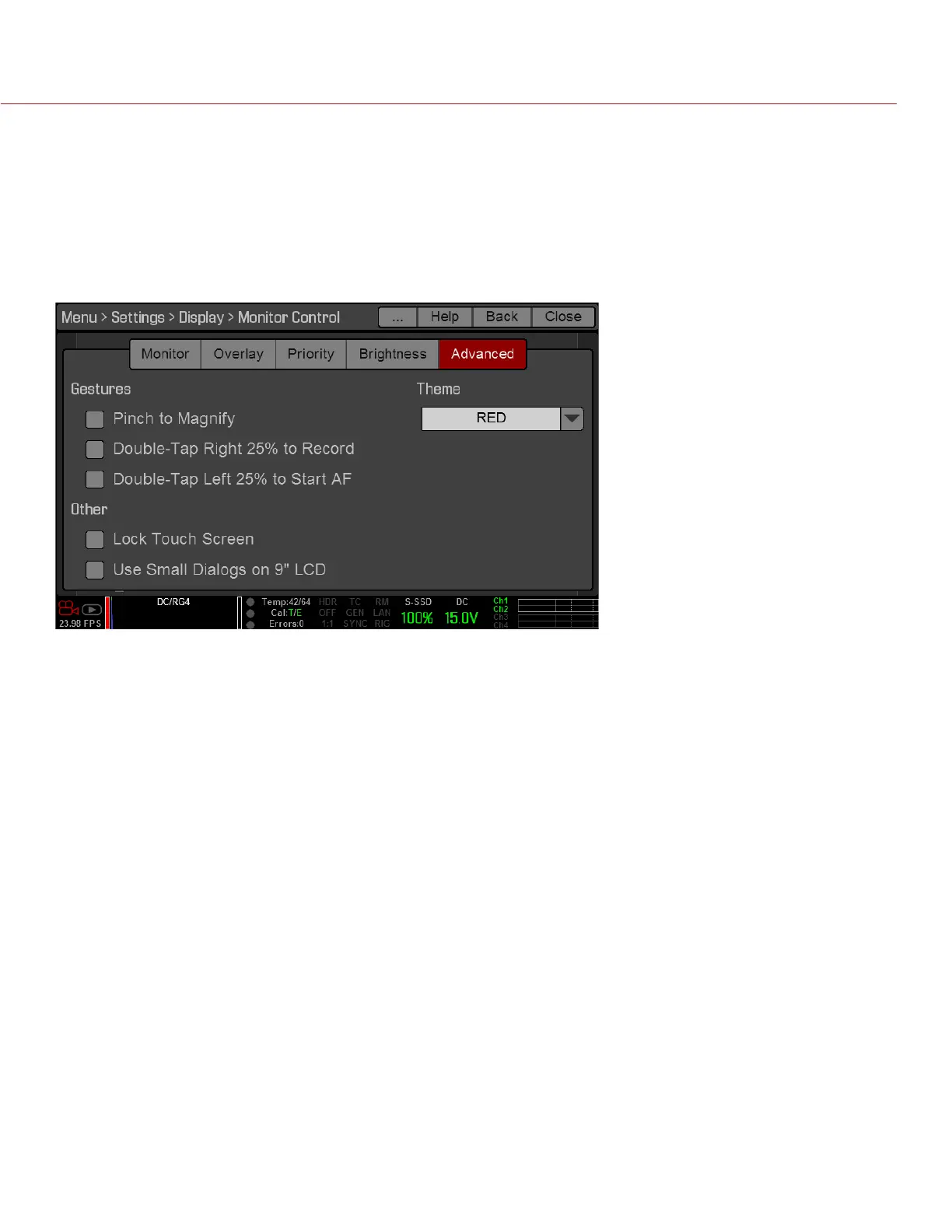

ADVANCED
Provides access to additional gestures, settings, and themes.
GESTURES
Pinch to Magnify: Use two fingers to pinch inward OR slide apart on the LCD to toggle 1:1 Magnify. For more
information, go to “Magnify” on page 60.
Double-Tap Right 25% to Record: Double-tap the right 25% of the video area on the LCD to toggle record.
Double-Tap Left 25% to Start AF: Double-tap the left 25% of the video area on the LCD to start autofocus
when compatible lenses are used.
For a list of compatible lenses, go to “Lens Mounts and Lenses” on page 182.
OTHER
Lock Touch Screen: Touchscreen control is locked. To unlock, tap the screen and follow the on-screen
instructions.
Use Small Dialogs on 9" LCD: The dialogs on the RED Touch 9.0" LCD are smaller than the default dialogs.
THEME
The selected graphical user interface (GUI) theme affects the look of all in-camera menus. To select a theme,
go to Menu > Settings > Display > Monitor Control > Advanced.
The following color themes are available:
Original: Light gray menu backgrounds, black text, and light-blue topic highlights.
RED: Dark gray menu backgrounds, white text, and red topic highlights.
