RED DSMC OPERATION GUIDE: EPIC/SCARLET

REMOVE A LENS MOUNT

NOTE: You can change lens mounts in the field. However, RED

recommends that you change lens mounts only

in a dust-free environment.

REQUIRED TOOL: T20 TORX

driver

1. Turn off the DSMC.

2. Attach the DSMC to a stable platform or position the DSMC on a clean and level work surface so that the

lens mount screws are accessible.

3. Remove the lens and any DSMC modules, cables, or other accessories that might interfere with removing

the lens mount.

4. If removing the

5. Loosen and remove the four (4) M4x0.7 x 8 mm lens mount screws in a cross pattern (“X” pattern) using a

T20 TORX driver.

NOTE: Screw removal may require a large handle T20 TORX driver and additional leverage.

6. Remove the lens mount from the DSMC.

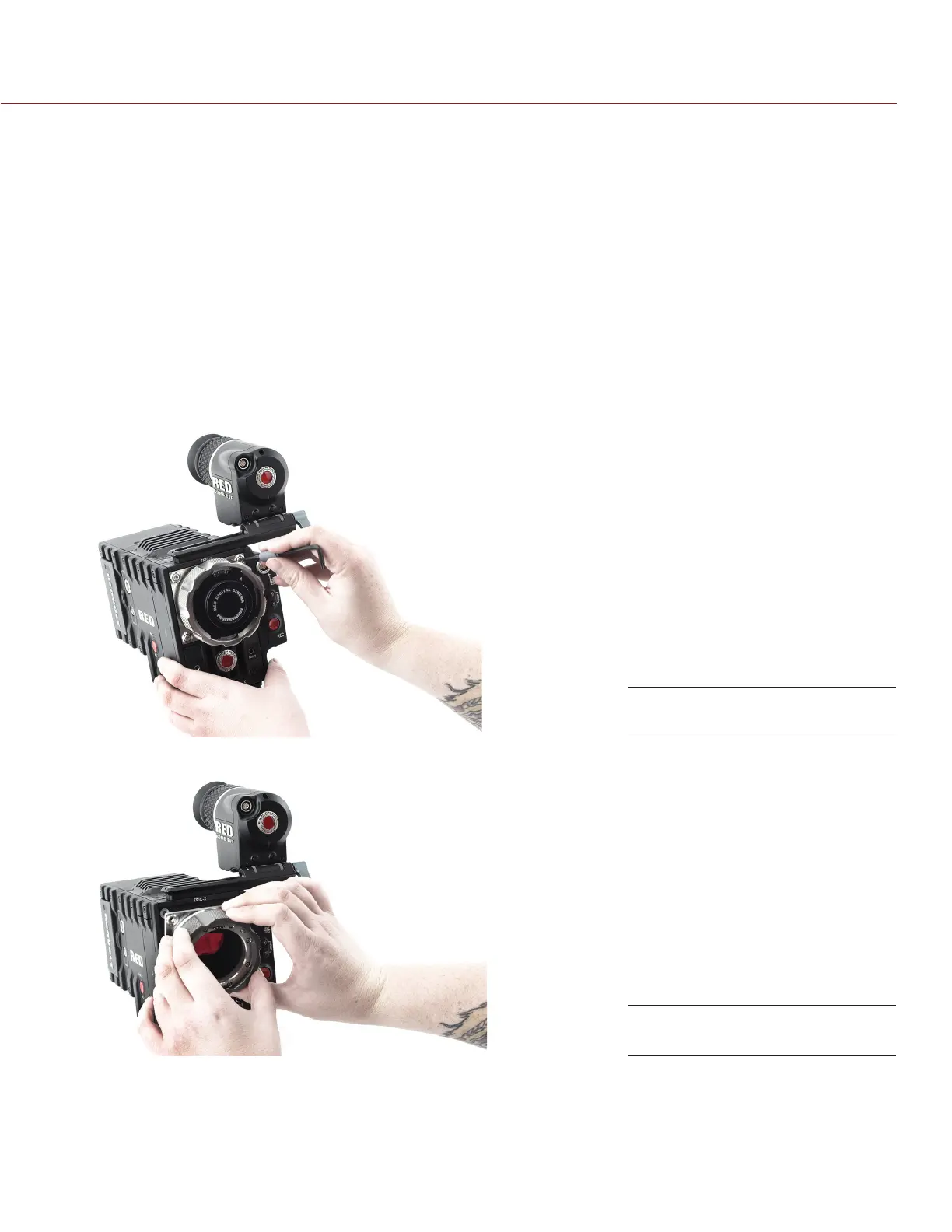

Remove the lens mount screws

Remove the lens mount
