RED DSMC OPERATION GUIDE: EPIC/SCARLET

955-0020_V6.0, REV-J | 210

INSTALL A LENS MOUNT

NOTE: You can change lens mounts in the field. However, RED recommends that you change lens mounts only

in a dust-free environment.

REQUIRED TOOL: T20 TORX driver

1. Ensure that the DSMC is turned off and remove any accessories or cables that may interfere with installation.

2. Inspect the gold electrical contact pins on the front of the DSMC and the gold contact pads on the rear of

the lens mount to ensure that they are free of any contamination.

3. Align the lens mount on the front of the DSMC BRAIN. The DSMC connection pins must align with the lens

mount pins.

4. If installing the

5. Replace and loosely tighten the four (4) M4x0.7 x 8 mm lens mount screws in a cross pattern (“X” pattern)

using a T20 TORX driver.

WARNING: DO NOT FULLY TIGHTEN.

6. Tighten the four (4) lens mount screws evenly in a cross pattern (“X” pattern) using a T20 TORX driver. DO

NOT exceed 350 in-oz, or damage may occur.

WARNING: DO NOT OVERTIGHTEN.

7. After installation, a hardware rediscover or firmware upgrade may be required, particularly if you are installing

a MOTION MOUNT. If a MOTION MOUNT is not recognized, you will be unable to access the Motion Mount

menu at Menu > Settings > Setup > Lens.

To perform a hardware rediscover, go to Menu > Settings > Maintenance > Rediscover. A system reboot is

required after a hardware rediscover.

NOTE: If you need to replace any screws, please contact your Bomb Squad representative.

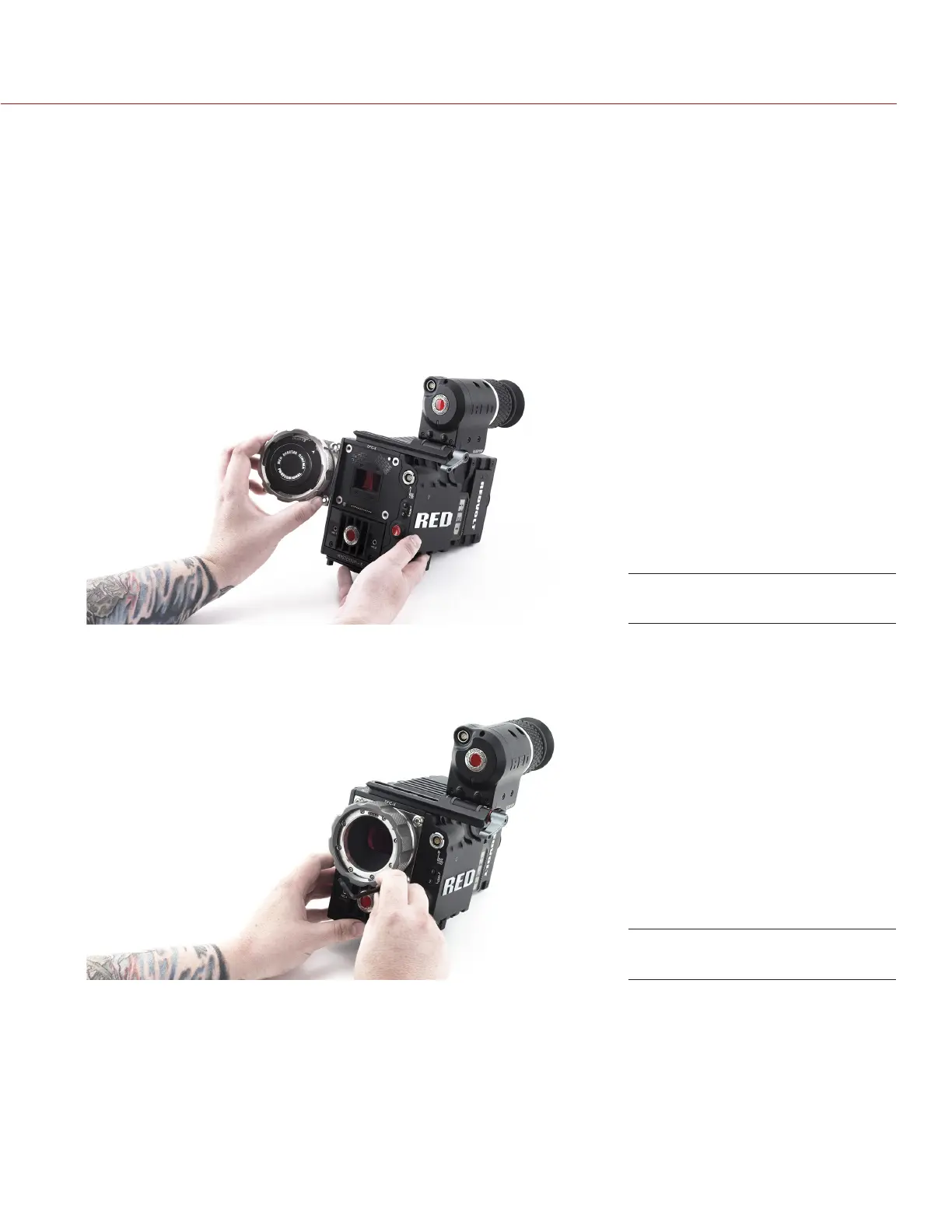

Align lens mount pins

Tighten screws
