RED DSMC OPERATION GUIDE: EPIC/SCARLET

SHORT-CUT TO INDUSTRY-STANDARD ANAMORPHIC FORMATS

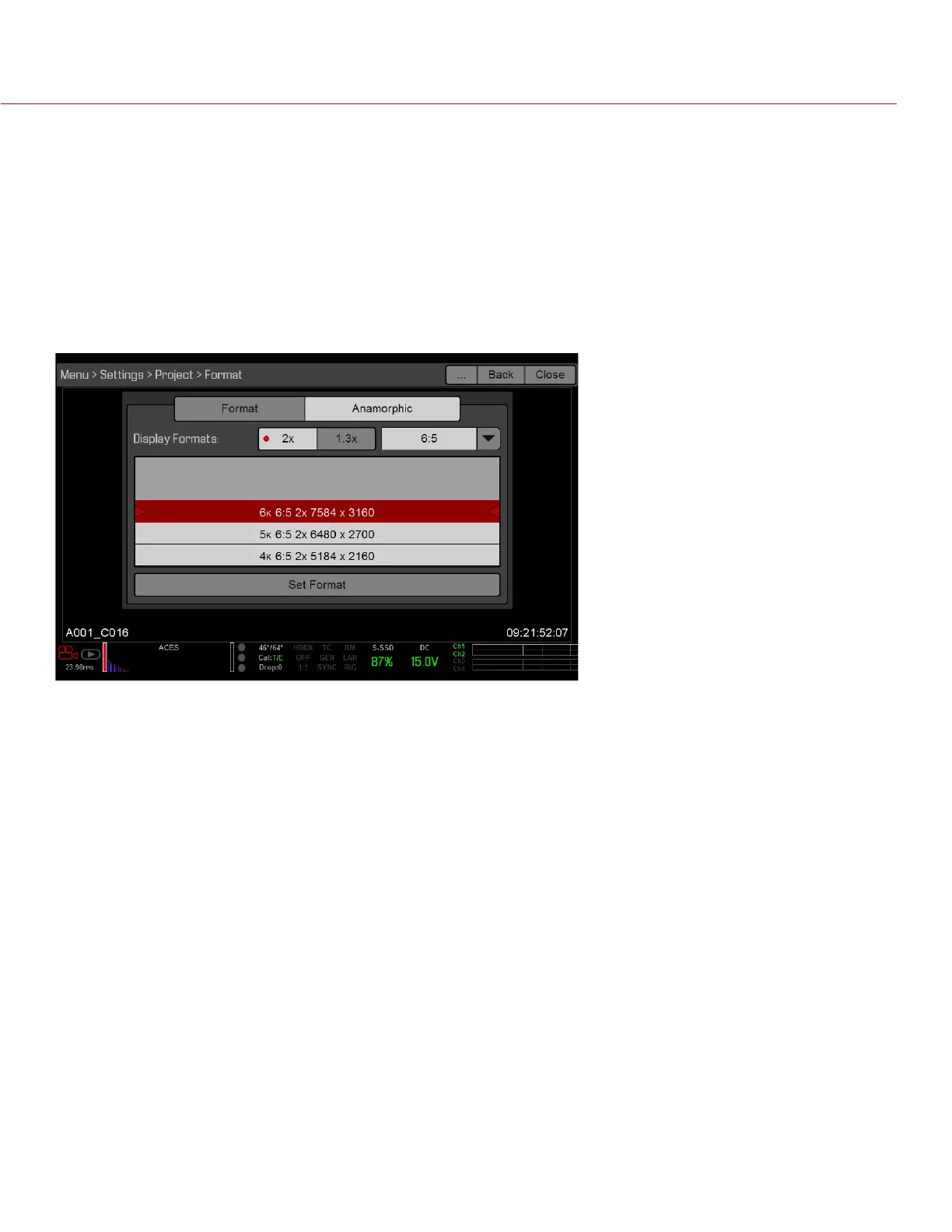

To quickly access industry-standard anamorphic formats, go to Menu > Settings > Project > Format > Anamorphic.

The Anamorphic tab is a short-cut to all of the industry-standard anamorphic formats, so that you can easily

select the most common anamorphic formats.

The Anamorphic tab lists the following anamorphic formats:

 EPIC DRAGON: Every format with a 6:5, 5:4, or 4:3 aspect ratio and a 1.3x or 2x anamorphic setting

 SCARLET DRAGON: 5K 6:5 2x

 EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X: 5K 1.22:1 2x

NOTE: The Anamorphic tab only lists industry-standard anamorphic formats. To access all of the anamorphic

and non-anamorphic formats, go to Menu > Settings > Project > Format > Format.

LOOKAROUND

When Lookaround is enabled, the Frame Guide and recording area are scaled down on the display so that you

can see what images will enter the recording area.

To assign a Shading overlay to the Lookaround area (the area outside of the recording area), go to “General

Tab” on page 79.

Lookaround limits the available frame rates. Also, Lookaround is either very limited or not possible for high

resolutions (such as 5K Full Frame in EPIC MYSTERIUM-X and 6K Full Frame in EPIC DRAGON). At high

resolutions, the recording area on the display shows the full sensor area or full sensor height, so there is no

extra room for Lookaround.

UHD

The UHD menu is only accessible when a REDCAST Module is installed. For more information, see the REDCAST

MODULE Operation Guide, available at www.red.com/downloads.

AUDIO

The Audio menu lets you configure the audio subsystem. For more information, go to “Record and Monitor

Audio” on page 140.

RECORDING

The Recording menu includes: Mode, Frame Processing, Pre-Record, and Indicator.
