Installation
22 Installation Manual - Redback Smart Hybrid System - v2.0
2.6 Inverter electrical connections
2.6.1 OVERVIEW

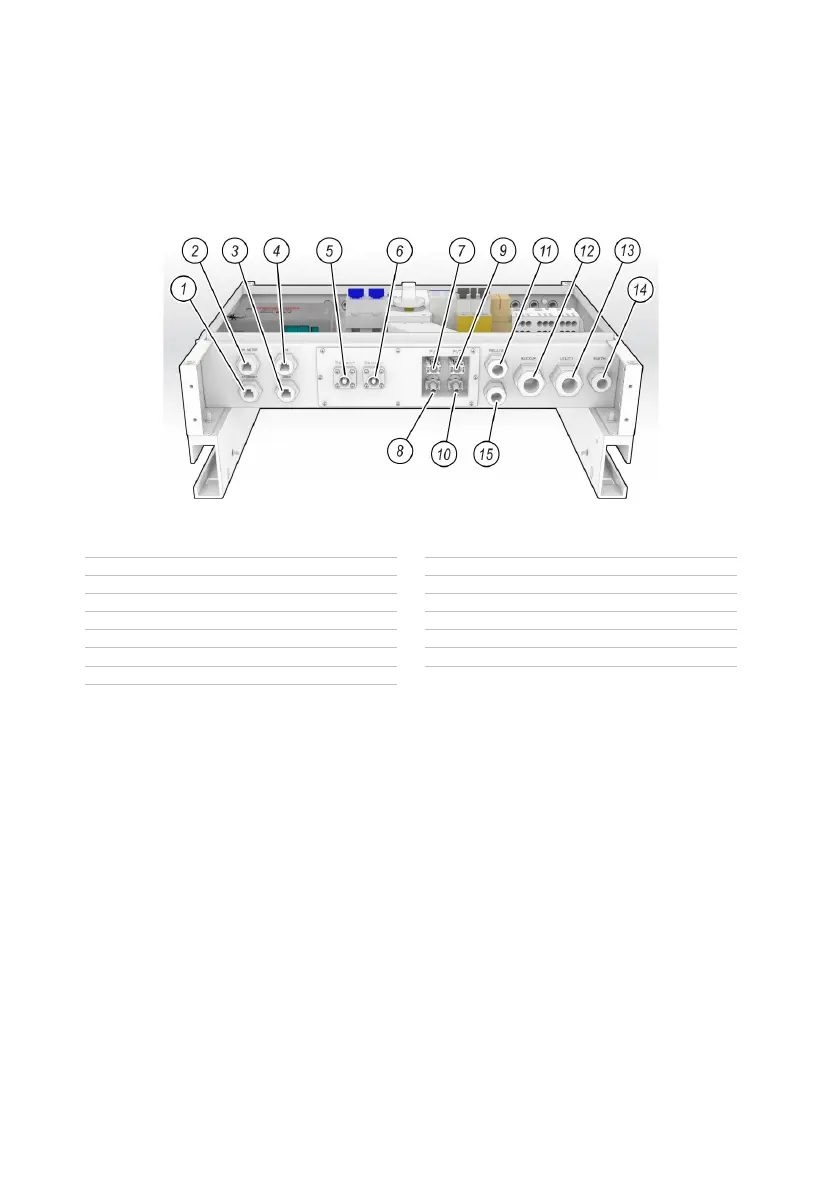

All connections to the BoS/Inverter are through dedicated sockets or glands in the BoS, as shown.
#
CONNECTOR
#
CONNECTOR
1
Ethernet (to Home network)
9
PV2 Connector +ve
2
Energy Meter (kWh Meter)
10
PV2 Connector -ve
3
DRED
11
Relays Cable Gland #1
4
BMS
12
Backup Circuit Cable Gland*
5
Battery Connector +ve
13
Utility Grid Supply Cable Gland
6
Battery Connector -ve
14
Battery Cabinet Earth Cable Gland*
7
PV1 Connector +ve
15
Relays Cable Gland #2
8
PV1 Connector -ve
*Bungs are pre-fitted to Backup and Earth cable glands, to exclude water and insects. Remove as required.
