2.7.4 ONE, TWO OR THREE PHASE INSTALLATIONS
Note: Follow these instructions when the Redback is the only inverter at the site.
The meter measures the instantaneous voltage, current, power and energy of each phase of a grid supply system. The power
data is transmitted to the Redback inverter and used to manage grid inputs from solar or battery power sources.
Connecting the SM3000

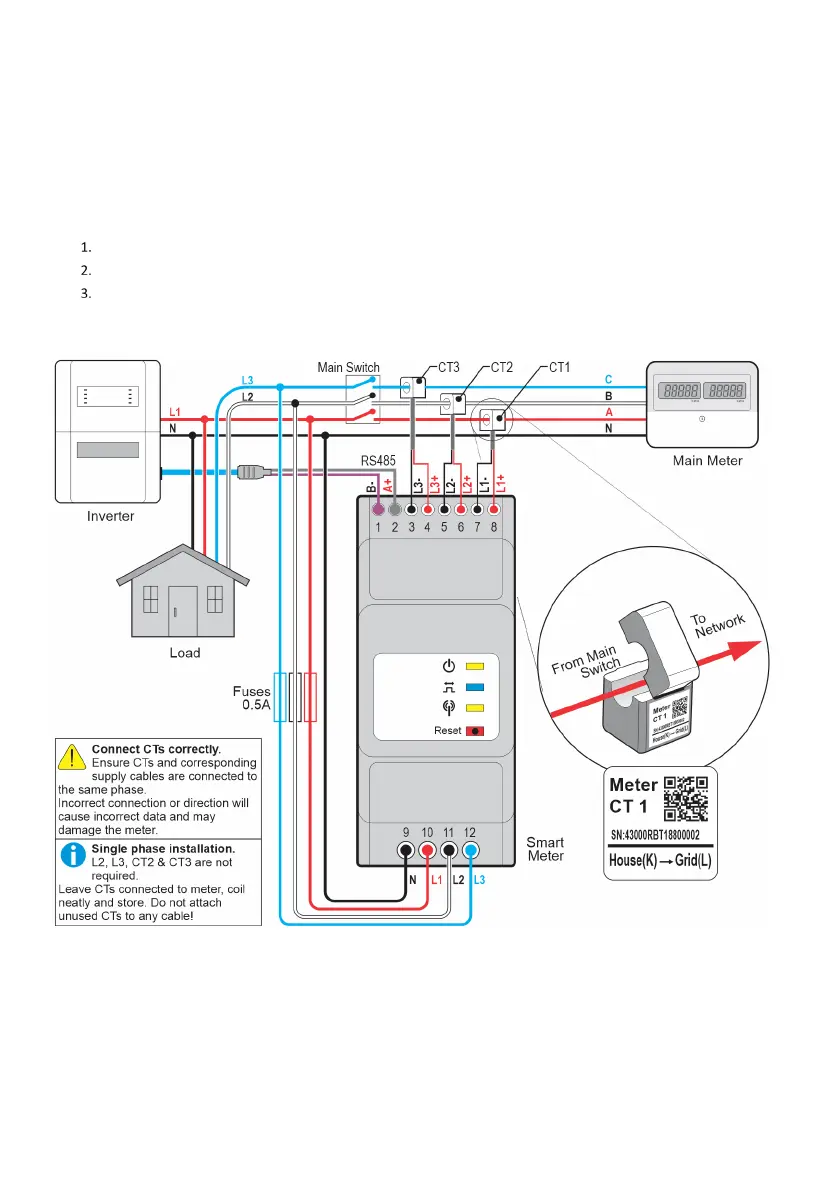

Connect the SM3000 as shown below, ignoring phases missing from the installation.
To ensure correct readings, ensure CTs are clipped onto cables as shown below.
Do not remove unused CTs – Leave connected to meter, coil cables neatly, and store. Do not clip unused CTs to any
cable.
