Installation
32 Installation Manual - Redback Smart Hybrid System - v2.0
2.11 Battery installation
2.11.1 OVERVIEW
The Redback system has a storage capacity of up to 28.4kWh
using one or two BE14000 enclosures. Each enclosure holds
up to four batteries and a second enclosure is always required
for five or more batteries. Batteries are connected in parallel.

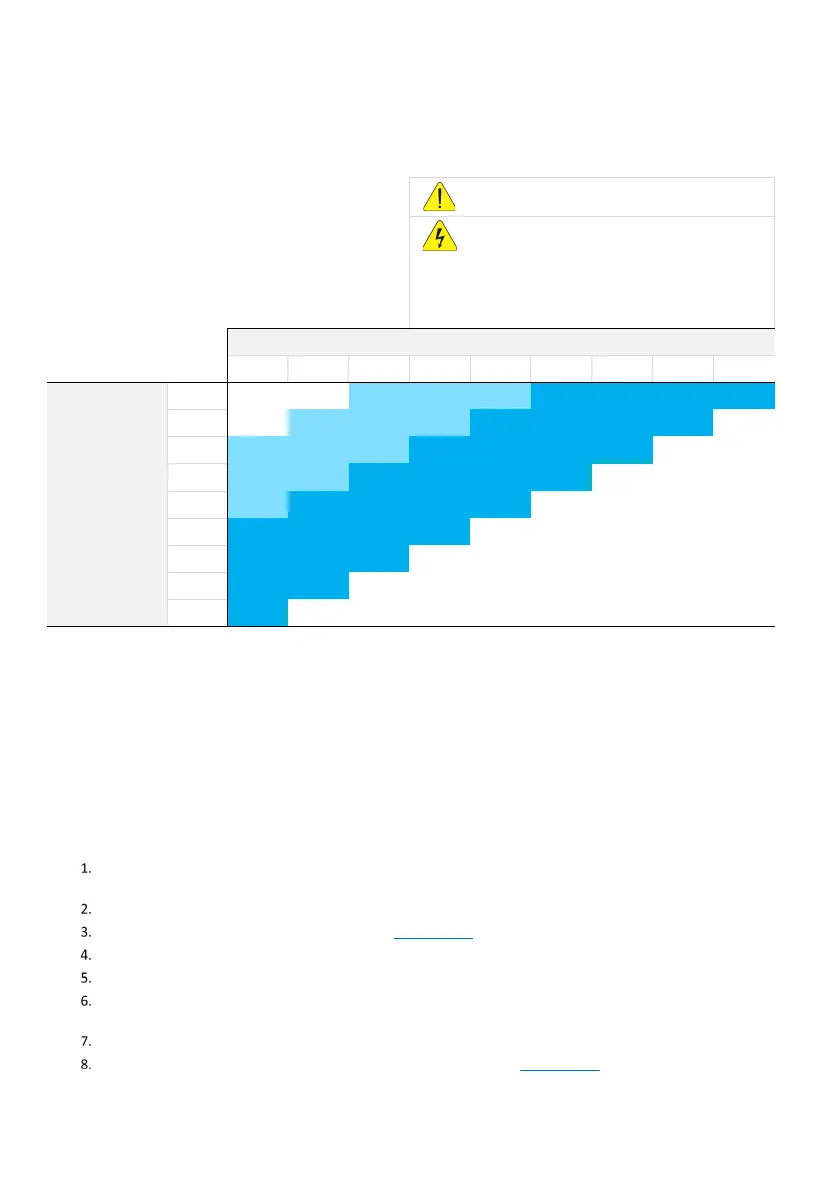

The allowable battery combinations and resultant storage
capacities are shown below (in kWh).
NOTE: US3000C batteries are not supported.
WARNING: SHOCK HAZARD. New batteries contain
some charge.
Turn the BoS Battery System DC isolator OFF during
installation. Also turn the individual battery
enclosure isolators OFF. Do not activate batteries
during installation.
Number of US3000
X
batteries @3.55kWh each
0
1
2
3
4
5
6
7
8
Number of
US2000
Y
batteries
@ 2.4kWh each
0
0

7.10
10.65
14.20
17.75
21.30
24.85
28.40
1

5.95
9.50
13.05
16.60
20.15
23.70
27.25

2
4.80
8.35
11.90
15.45
19.00
22.55
26.10
 
3
7.20
10.75
14.30
17.85
21.40
24.95
  
4
9.60
13.15
16.70
20.25
23.80
   
5
12.00
15.55
19.10
22.65
    
6
14.40
17.95
21.50
     
7
16.80
20.35
      
8
19.20
       
Usable capacity is typically 90% of total capacity Battery installations must include a minimum of two batteries per cabinet of any listed model
Insufficient space in enclosure for this combination.
X
Pylontech US3000.
Y
Pylontech US2000 or US2000 Plus.
Pylontech batteries use an integrated Battery Management System (BMS) to manage ultimate charge and discharge rates
(protecting the batteries from heat damage) and to inform the Smart Hybrid System of status. The BMS also protects the
batteries from total discharge, assisting system reliability and longevity.
Batteries are identified as Master, 2, 3, 4 etc up to 8. This refers to the position of individual batteries in the BMS chain of
command, where the first connected battery is the Master.
The battery identity may also indicate the physical position of the battery within the enclosure, as indicated in section 3.14.4.
2.11.2 BATTERY INSTALLATION NOTES
Any combination of Pylontech US2000, US2000 Plus or US3000 is permitted. US3000C does not work in this product
and future support is not planned.
The Master battery is always the newest model in the combination, in the 1
st
enclosure.
Batteries are named and positioned as shown in section 2.11.4, for 2, 3 and 4 battery installations.
A minimum of two batteries per cabinet is required.
The Newest-is-Master rule also applies when adding batteries to an existing system.
To ensure even cooling, batteries must be installed in the approximate positions shown. They must not touch the
rear or sides of the enclosure, or each other.
Batteries are unrestrained on the enclosure shelves, held in place by their own mass.
Batteries must be independently earthed to the enclosure as shown in section 2.11.5.
