Troubleshooting
50 Installation Manual - Redback Smart Hybrid System - v2.0

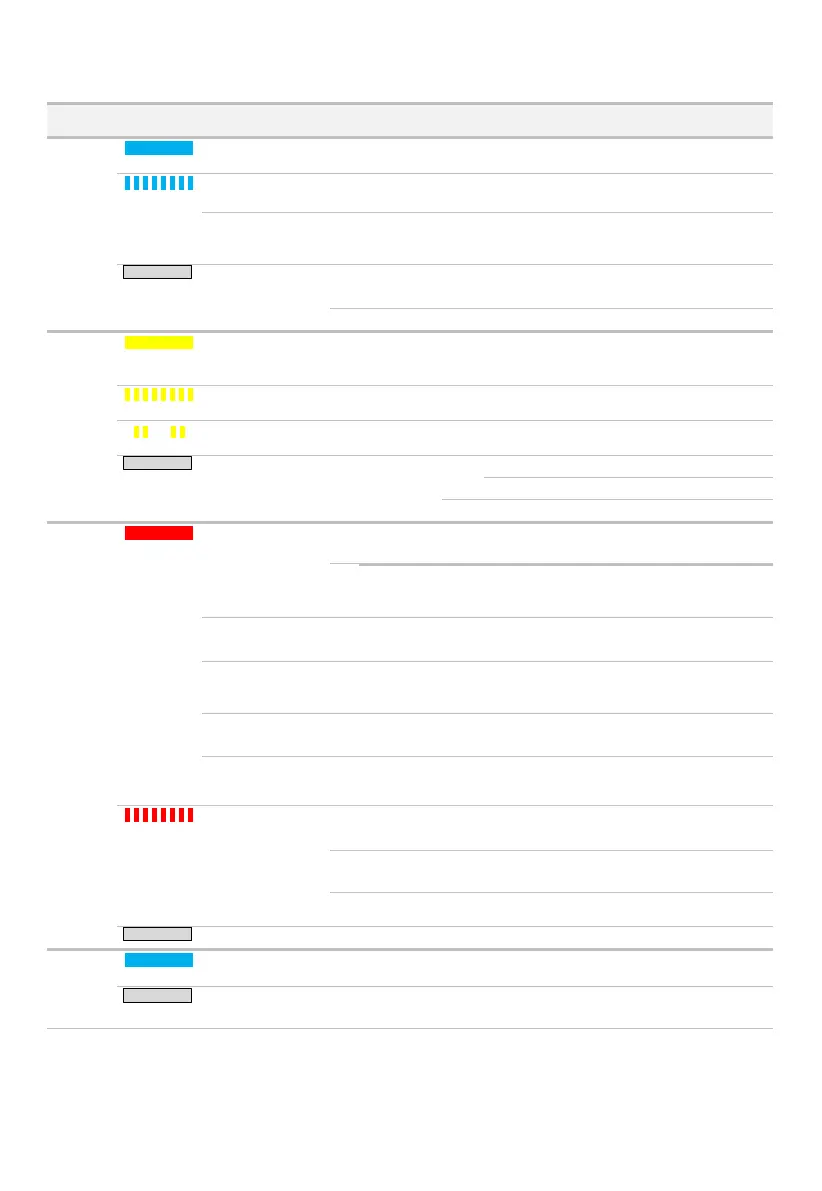

LED NAME
COLOUR &
PATTERN
MEANING AND OR
PROBABLE CAUSE
SOLUTION(S)
UTILITY
GRID
Grid active and
connected
OK. No action required.
Grid is active but not
connected
This may be normal behaviour following a restart- Wait up to 90
seconds. The LED stabilises to ON when connected.
Grid power does not
comply with
AS4777.2
The inverter checks the grid quality prior to- and following connection
and will disconnect if Grid voltage, frequency or harmonics are outside
the allowable range.
Grid is not active
Normal behaviour during a Grid outage. If grid is available:

Turn Grid isolator ON.

Check cables
ENERGY
FLOW
Consuming energy
from grid (a.k.a.
buying)
No action required- this is normal operation. When (Instantaneous PV +
Battery power) exceeds House Demand, the shortfall is met by the grid.
Sending energy to
grid/zeroing
No action required- this is normal operation: The house demand is
being fulfilled by the battery and or PV.
Supplying energy to
grid (a.k.a. selling)
No action required- this is normal operation when PV exceeds (Battery
charging + House demand), the excess power is exported to the grid.
Grid not connected
or system not
operating
Check
UTILITY GRID
LED.
OFF

Turn Grid isolator ON

Check cabling
ON

Contact Redback Technology
SYSTEM
ERROR
Grid voltage and
frequency outside
range.

Check grid quality using the Grid Interactive Power Meter- Press the blue
button to find the Voltage and Frequency.

Ensure all grid, PV and battery cabling is correct.
Check the voltage and polarity of the batteries.
Solar array
overvoltage

Check the PV voltage and ensure solar voltages are within the specified
inverter PV input range.
Over temperature
inside the inverter.
Investigate the incident. The performance of the inverter will be reduced
above 45
°C. If the temperature rises above 60°C the inverter will
automatically shut down.
Ground fault alarm.

Turn PV ARRAY DC isolator OFF immediately (anticlockwise to 9 o’clock).
Investigate fault.
Inverter failure.

Move the Bypass switch to UP position to maintain grid supply to the
b
ackup circuit.
Backup circuit
overload (exceeds
4.6kW continuous or
6.9kW for 10s, at
<45°C)

Reduce simultaneous plug-in loads on the backup circuit.
Contact your installer if overloads persist.

Ensure plug-in devices on the backup circuit are in accordance with
s
ection 0.

Review/reduce permanent devices on the backup circuit.
No fault
OK. No action required.
BACKUP
POWER
Backup is ready
OK. No action required. Battery power is available for the backup circuit
(may take up to 10m after a restart).
Backup is off / no
power available

Open the Redback app or portal. Set “Backup output” to ON.
