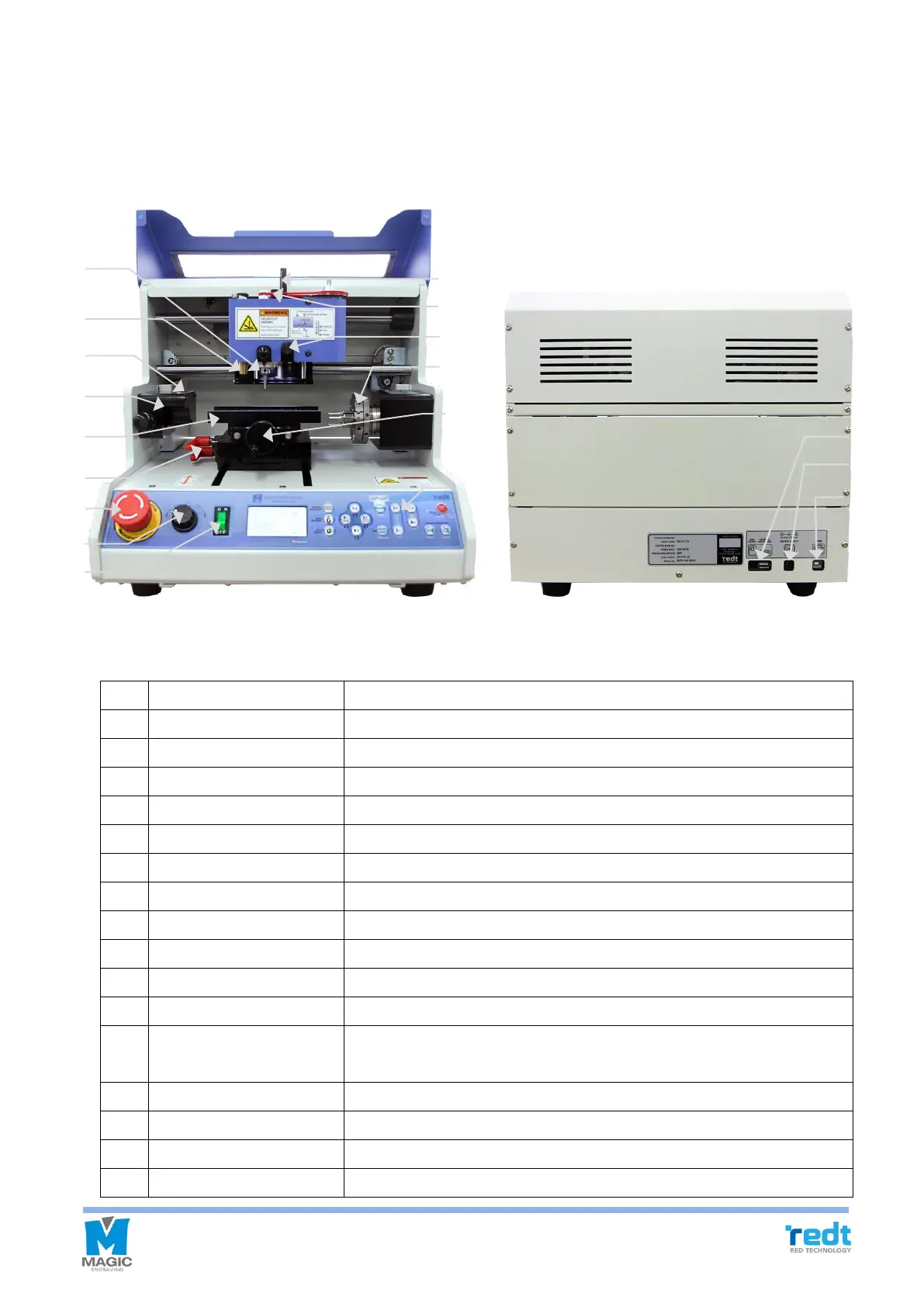

5) Description of MAGIC-70
◈ Parts
◈ Description of each part
A
Spindle
Tightens an engraving tool.
B
Probe
Measures a height of engraving material.
C
Tool Length Sensor
Measures the height of tool.
D
Pen Clamp Adapter
Inserts and holds a pen clamp.
E
Multi performance Clamp
Fix the material in place.
F
Clamp Fastening Lever
Loosens or fastens the clamp.
G
Emergency Switch
Conduct emergency stop.
H
RPM Adjustment Knob
Adjusts RPM of engraving tool (9,000~15,000 RPM).
I
Power Switch
Turns ON/OFF the machine.
J
L-Tool
Tightens the tip used for rings or bangles.
K
Pressure Adjuster
Adjusts the pressure of the engraving tool.
L
L-Tool Lock
Tightens or adjusts the L-tool.
M
Rotation clamp
(Rotary chuck)
Tightens a cylinder the materials such as rings.
N
Clamp tightening handle
Loosens or tighten the materials
O
Operation key
Operates the engraver’s various functions.
P
5V Port
Supplies 5V to the engraver by connecting to power adapter.
Q
Power Port
Supplies 24V to the engraver by connecting to power adapter.
Q
R
P
J
G
L
M
C
A
E
B
N
F
K
H
I
D
O
