Product Parts and Installation
1) Parts and Accessories

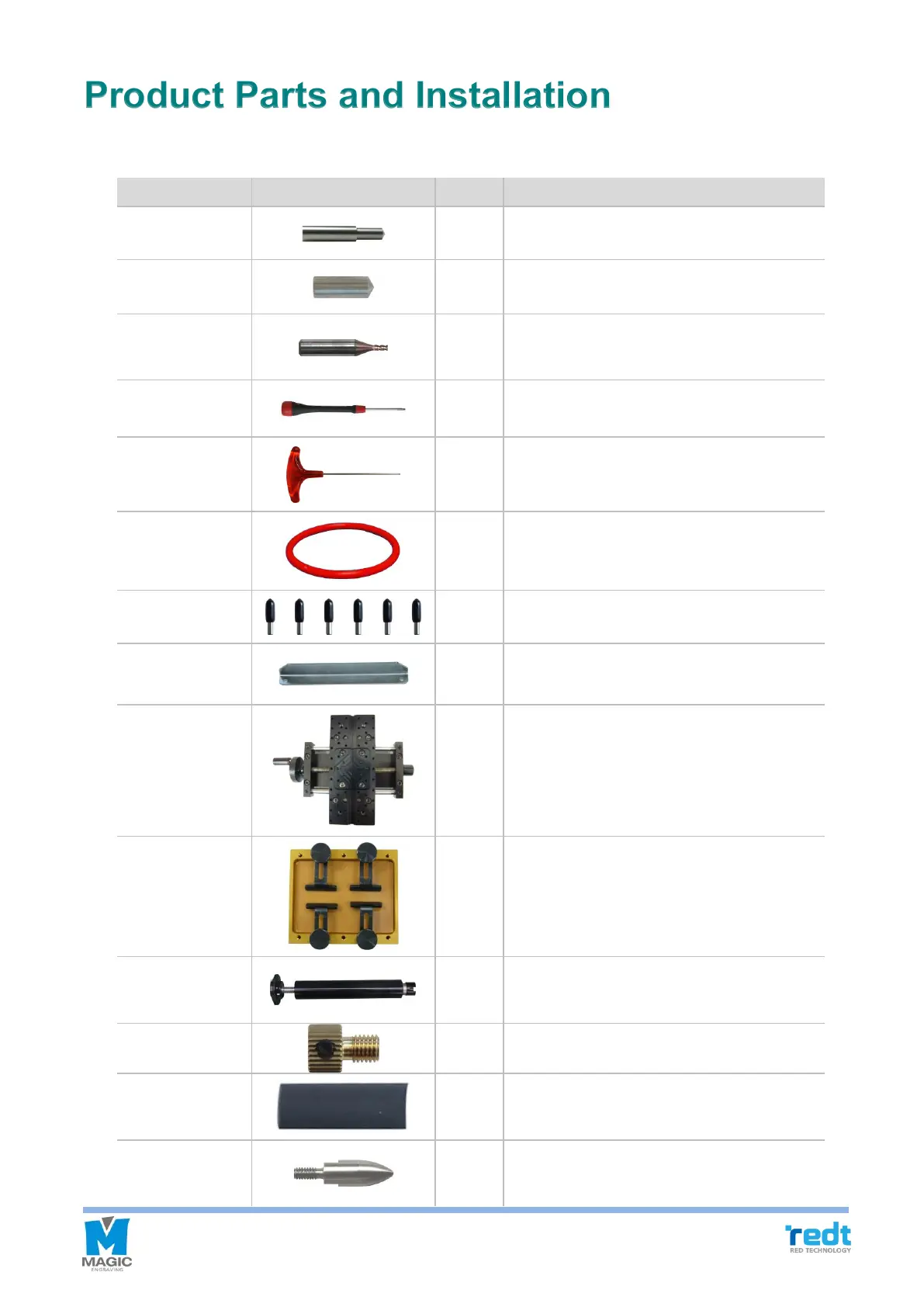

MAGIC-70 product box includes the engraver and following accessories.
Accessories
Photos
Qty
Purpose
Diamond tip
(4Φ)
1EA
Tool for engraving. And ring outer diameter
engraving. (Spindle)
Diamond tip
(3.175Φ)
1EA
Tool for engraving. And ring inner diameter
engraving. (L-Tool)
Endmill cutter
(4Φ 0.6)
2EA
Tool for cutting. (Spindle)
1.5mm wrench
1EA
For changing tools.
2mm T-wrench
1EA
For changing tools.
Spindle belt
(60Φ)
3EA
Silicon belt for transferring DC motor’s
rotation power to spindle.
Pin
6EA
For holding of irregular shaped material.
Auxiliary jig
1SET
For holding thick engraving materials
Multi-
performance
clamp
1EA
For holding materials in place.
Cutting clamp
1SET
For holding materials in place.
(Including Bakelite plate)
Pen clamp
1EA
For holding pen.
Tool top loading
adapter
2EA
Finger skin
1SET
For protect chuck fingers.
Pen finger
3EA
For holding pen.
