R8C/20 Group, R8C/21 Group 16. Clock Synchronous Serial Interface
Rev.2.00 Aug 27, 2008 Page 307 of 458
REJ09B0250-0200

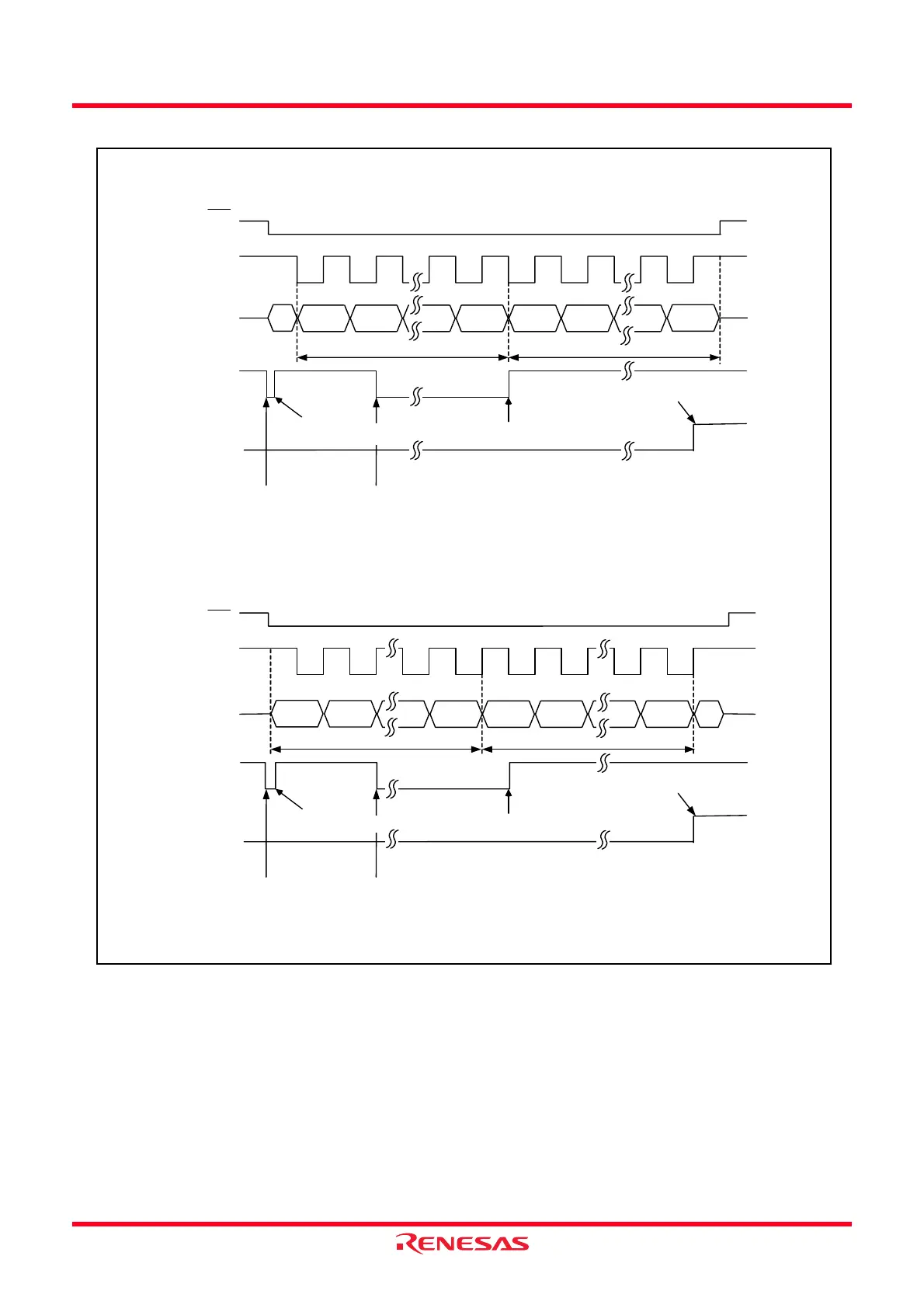

Figure 16.19 Example of Clock Synchronous Serial I/O with Chip Select Operation during Data
Transmission (4-Wire Bus Communication Mode)
TDRE bit in
SSSR register
0
1
TEND bit in
SSSR register
0
1
Data write to SSTDR register
Process by
program
SSCK
b0SSO
• When CPHS bit = 0 (data change at even edges), CPOS bit = 0 (“H” when clock stops)
b7
SCS
(Output)
SSCK
• When CPHS bit = 1 (data change at even edges), CPOS bit = 0 (“H” when clock stops)
CPHS, CPOS: Bits in SSMR register
1 frame
TDRE bit in
SSSR register
0
1
TEND bit in
SSSR register
0
1
Data write to SSTDR register
Process by
program
1 frame
High-impedance
b0b7
High-impedance
SCS
(output)
TXI interrupt request is
generated
b7
b0SSO
1 frame 1 frame
b6 b6
TXI interrupt request is
generated
TEI interrupt request is
generated
b6 b7
b0b6
TEI interrupt request is
generated
TXI interrupt request is
generated
TXI interrupt request is
generated
To Next Page
