User Guide
CTech™ FlowVPX® System
5.2.4 Flow Smart Input
The FlowVPX instrument is equipped with electrical contacts to read a flash memory device on each Flow Cell to track serial
numbers, cycle life, and other critical parameters.
5.2.5 Storage
Place connector caps onto connectors when not in use.
5.3 FlowVPX Detector
The FlowVPX Detector reads light transmitted from the Flow Fibrette and is designed as a removable module that adapts to a Flow
Cell of any size.
For storage, place connector cap on connector when not in use. Place the detector in shipping box.

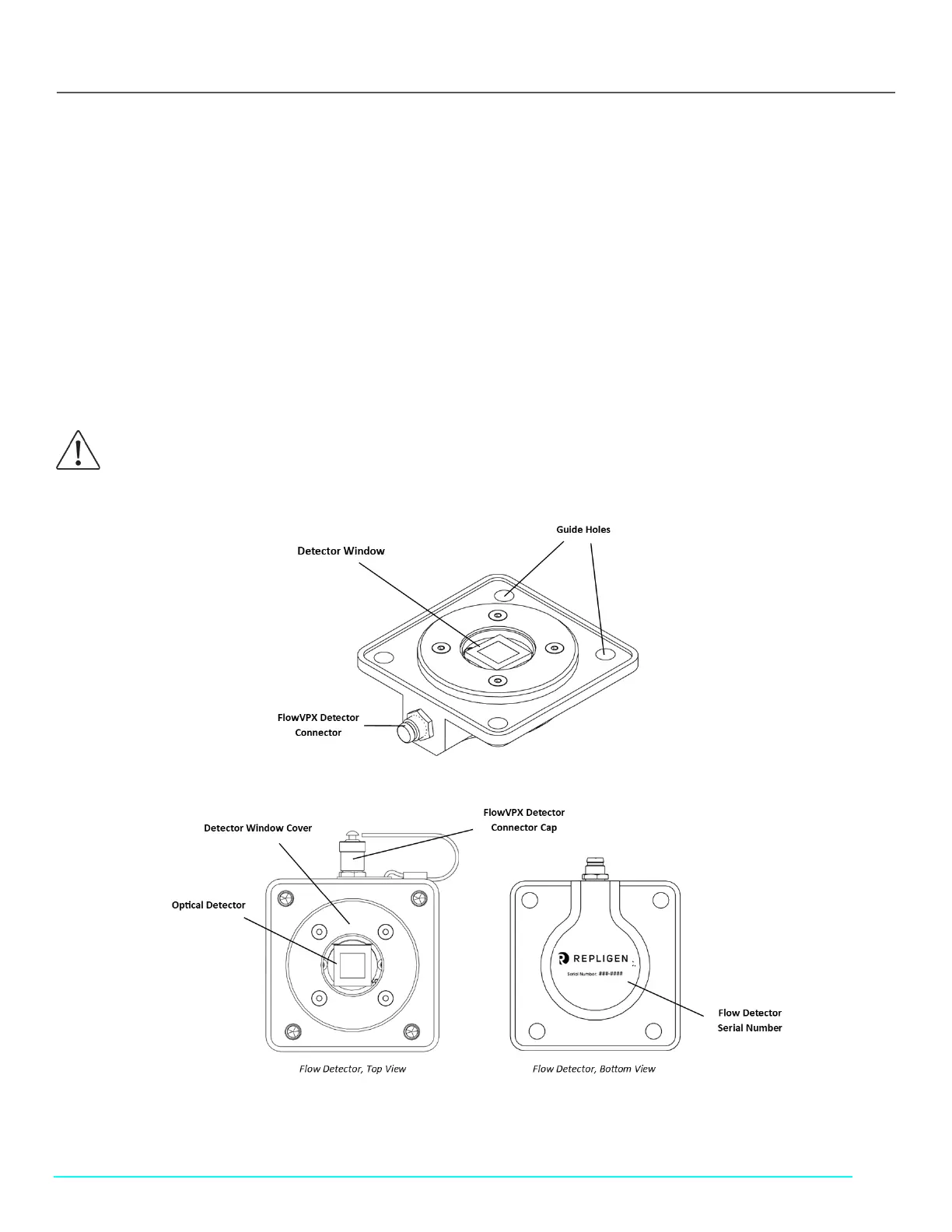

Figure 3. FlowVPX Detector Components
CAUTION: Do not scratch or damage the Window as this may affect the accuracy of optical readings. Do not drop the
Detector, as shocks may damage internal electronics.
