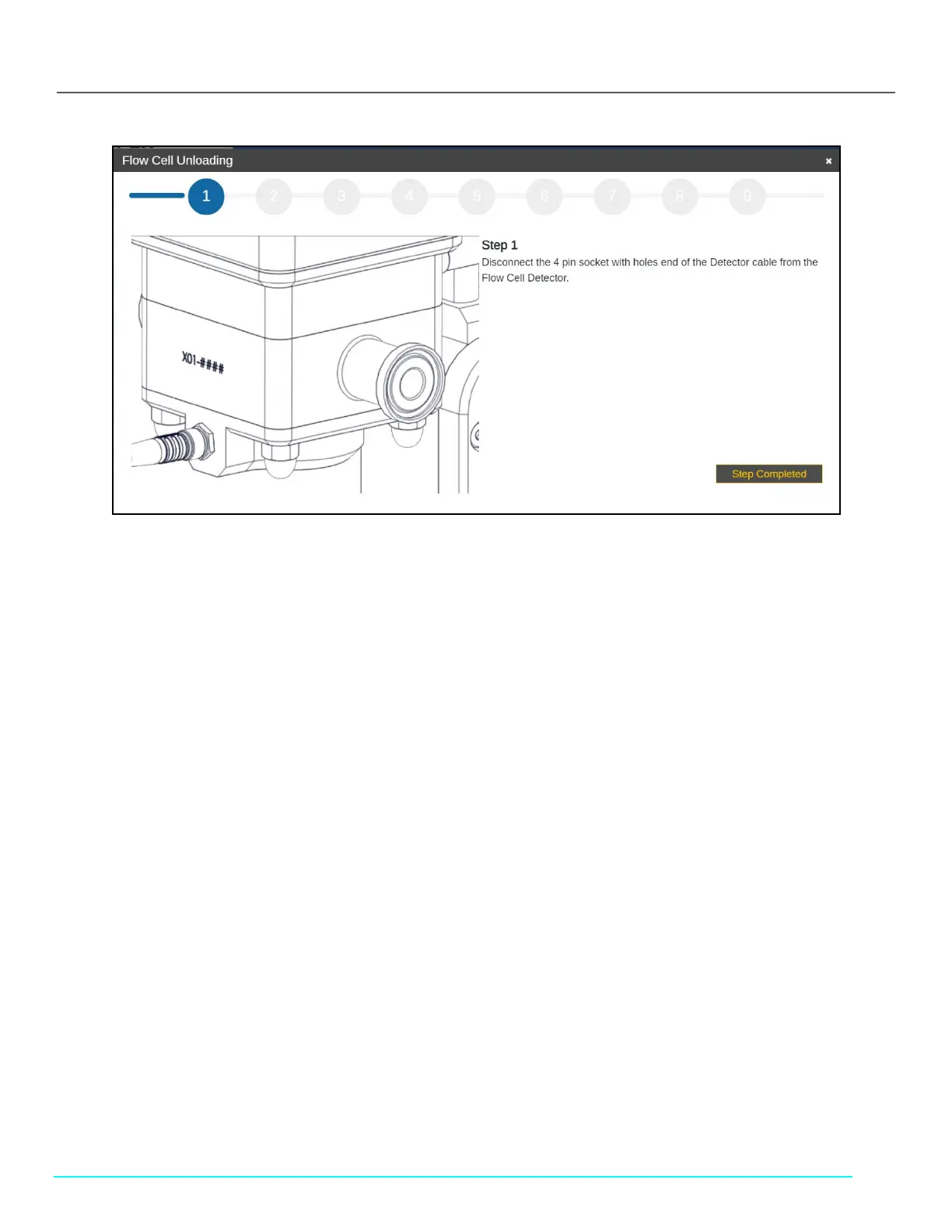

Figure 48. Flow Cell Unloading Using the Beams Light Source
3. Remove the Beams Detector Cable (EC0328) from the Detector.
4. Unscrew and disconnect the Beams light source from the Fibrette Optical Component.
5. Remove the Beams FX connector nut from the Fibrette and set it aside.
6. Tilt the FlowVPX back on the Standard Mount so that the bottom of the Detector is facing towards you.
• Ensure the Mounting Post Clamp Handle is tightened.
7. Unscrew the acorn nuts from the bottom, being careful not to let the Flow Cell Detector tip forward or fall.
• Set the acorn nuts aside.
8. Slowly pull the Detector off the FlowVPX Head and place it aside, window up.
• Remove and discard the Detector gasket.
8. Remove the Flow Cell from the FlowVPX Head.
• Remove and discard the Flow Cell gasket.
9. The Flow Cell has been successfully unloaded.
10. Click OK.
