CTech™ FlowVPX® System
5.8 Cables

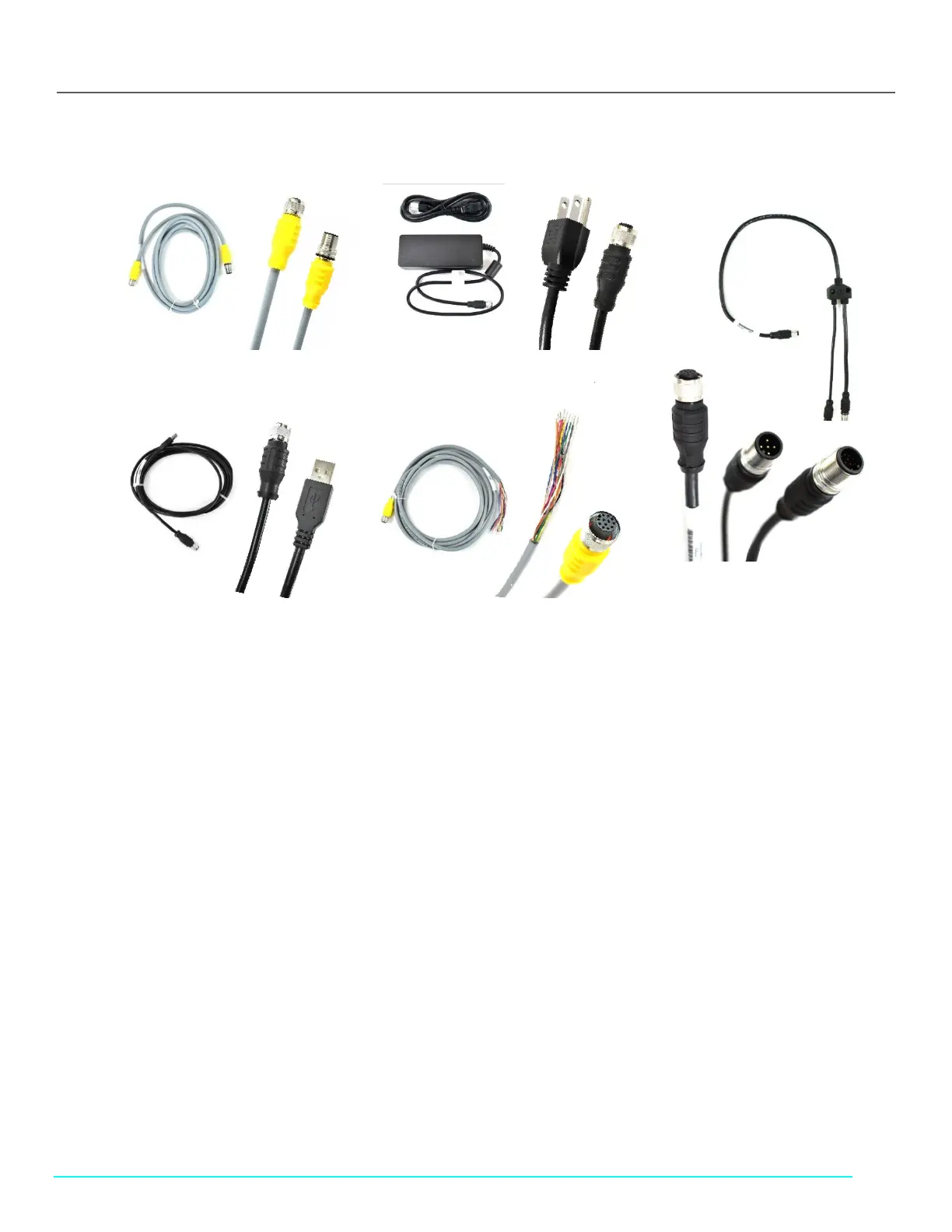

Figure 9. FlowVPX-Specific Cabling
5.8.1 The FlowVPX Power Cable (EC0205)
The FlowVPX power cable provides 24 VDC power to the FlowVPX Head.
5.8.2 The FlowVPX Power and I/O Splitter Cable (EC0208)
The FlowVPX System is capable of making an I/O connection to another system. This gives the user the ability to connect their
system to the FlowVPX instrument, letting the two systems communicate with each other.
The FlowVPX Power and I/O Splitter Cable couples power input from the power supply with I/O communications.
5.8.3 The FlowVPX I/O External Cable (EC0214)
The FlowVPX I/O External Cable allows for I/O communications and connection with alternate 24 VDC power supplies.
5.8.4 The FlowVPX Extender Power Cable (EC0206)
Provided with the FlowVPX System to allow for greater versatility in FlowVPX System placement. It is not recommended to use more
than one Extender Power Cable in series with the standard Power Cable.
5.8.5 The FlowVPX USB Cable (EC0207)
The FlowVPX System uses a USB cable to connect to the software installed on your computer device. The USB cable connects to the
FlowVPX Head and computer.
FlowVPX Power Supply—EC0205
(country-specific power cable,
US pictured)
FlowVPX I/O External
Cable—EC0214
FlowVPX USB
Cable—EC0207
FlowVPX Extender Power
Cable—EC0206
FlowVPX Power
and I/O Splitter
Cable—EC0208
