Note: The Quick Check result may be greater than 100%. This value is relative to a reference measurement taken right

after the unit's manufacture. A value greater than 100% does not indicate a problem with the unit.

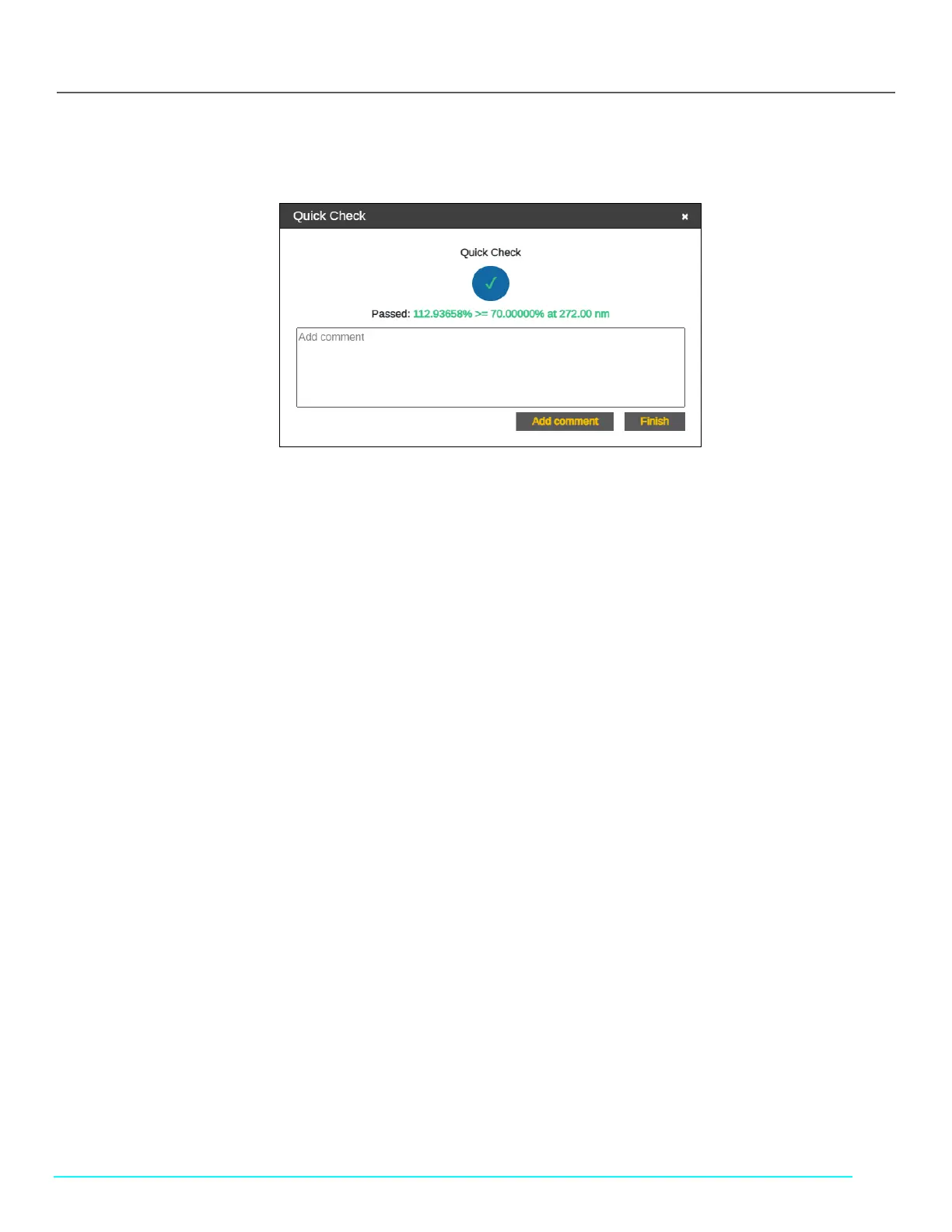

Figure 53. Quick Check Results

9. To leave a comment, enter the desired comment in the field provided and click Add comment.

10. Click Finish.
