7.2 Mounting
hcs_beruehrschutz.fh7

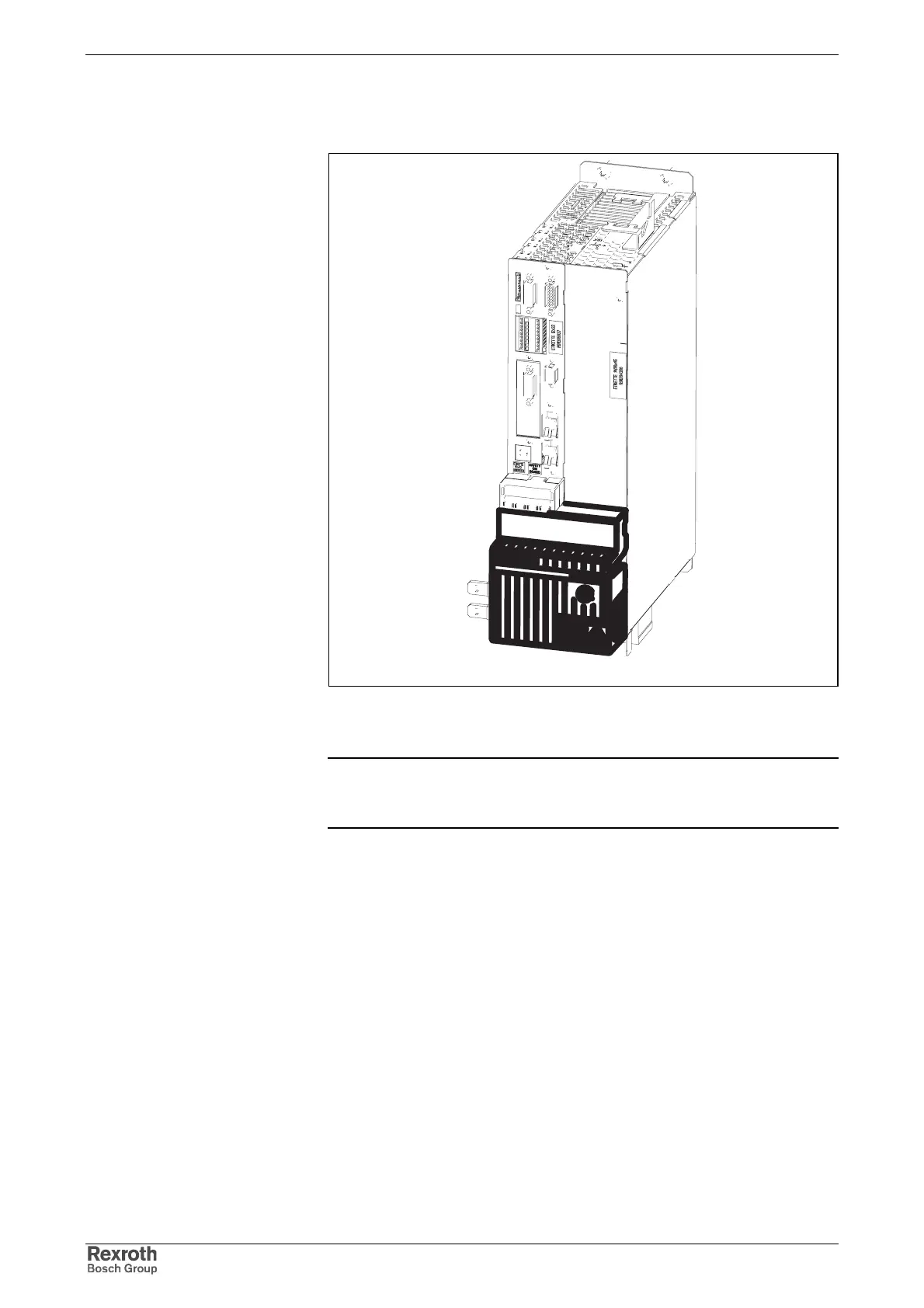

Fig. 7-2: Touch guard
The touch guard must always be mounted following connection work.
Note: Risk of damage to the touch guard!
The maximum tightening torque for the fixing screw for the
touch guard is 2.8 Nm.
2,8 Nm
Tightening Torque
