REXROTH IndraDrive C Series User Manual

4-2 Identification Rexroth IndraDrive C
DOK-INDRV*-HCS02.1****-PR02-EN-P
4.2 Type Plates

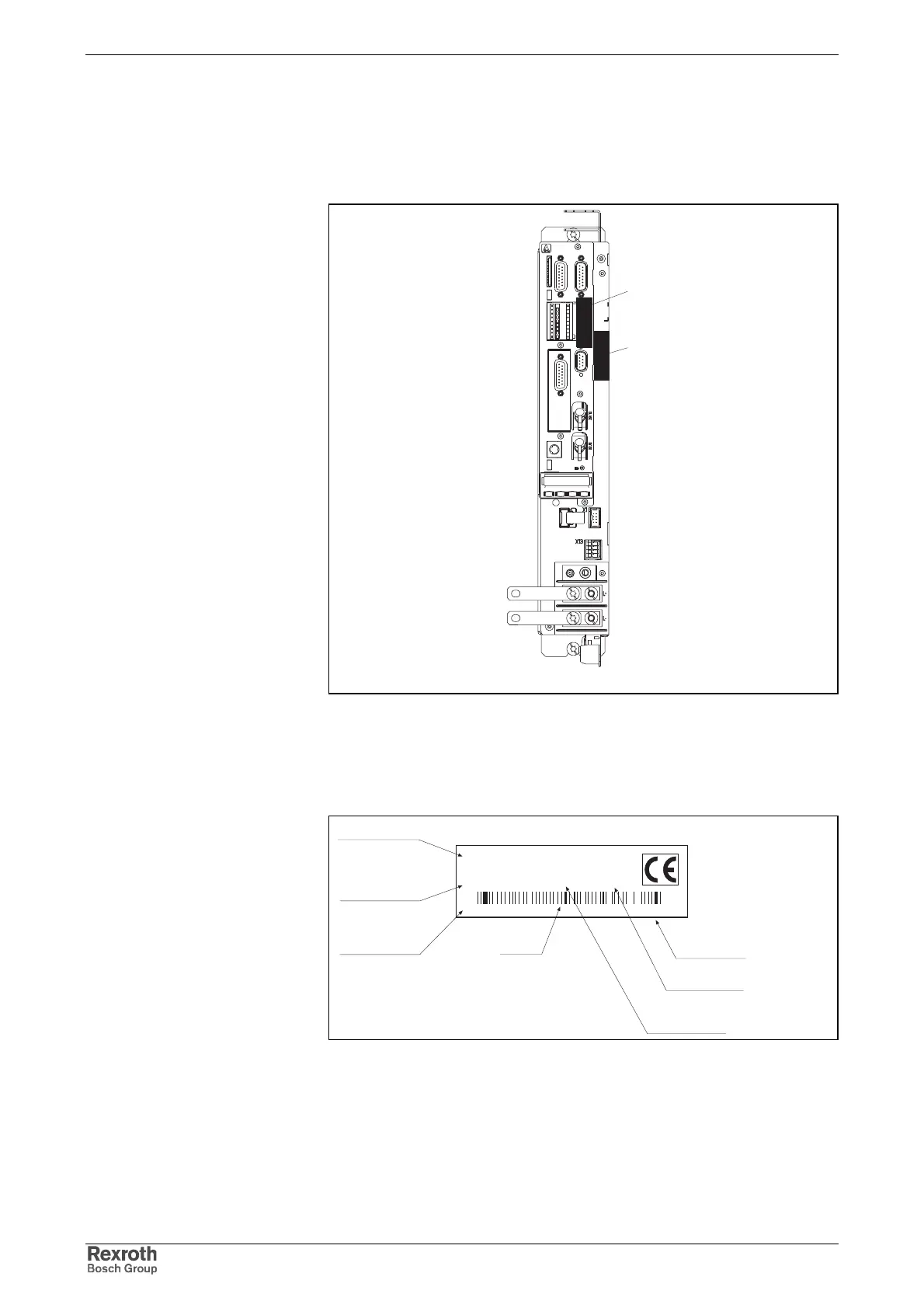

Type Plate Arrangement
hcs_lt_rt_typenschildert.fh7
2
1
1: Power section type plate
2: Control section type plate
Fig. 4-2: Type plate arrangement
Type Plate Power Section (Example)
SN: HCS021-00123
HCS02.1E-W0012-A-03-
NNNN
R911298371 FD:04W12
0A01
Made in Germany
Example 04W12 means year 2004 week 12
Production week
Serial Number
Barcode
Hardware index
Part number
Producing Country
Device type
Fig. 4-3: Type plate power section
Type Plate Control Section
See project planning manual of the control sections.

REXROTH IndraDrive C Series Specifications

General

Protection Class	IP20
Communication Interfaces	EtherCAT, PROFIBUS, PROFINET, CANopen
Feedback Systems	Incremental Encoders, Absolute Encoders, Resolver
Ambient Temperature	0°C to 45°C
Cooling Method	Natural convection or forced air
Relative Humidity	5% to 85% (non-condensing)
Control Modes	Torque, position
