REXROTH IndraDrive C Series User Manual

Rexroth IndraDrive C Electrical Data 6-5
DOK-INDRV*-HCS02.1****-PR02-EN-P
Allowed DC Bus Continuous Power with Three-Phase Mains Connection

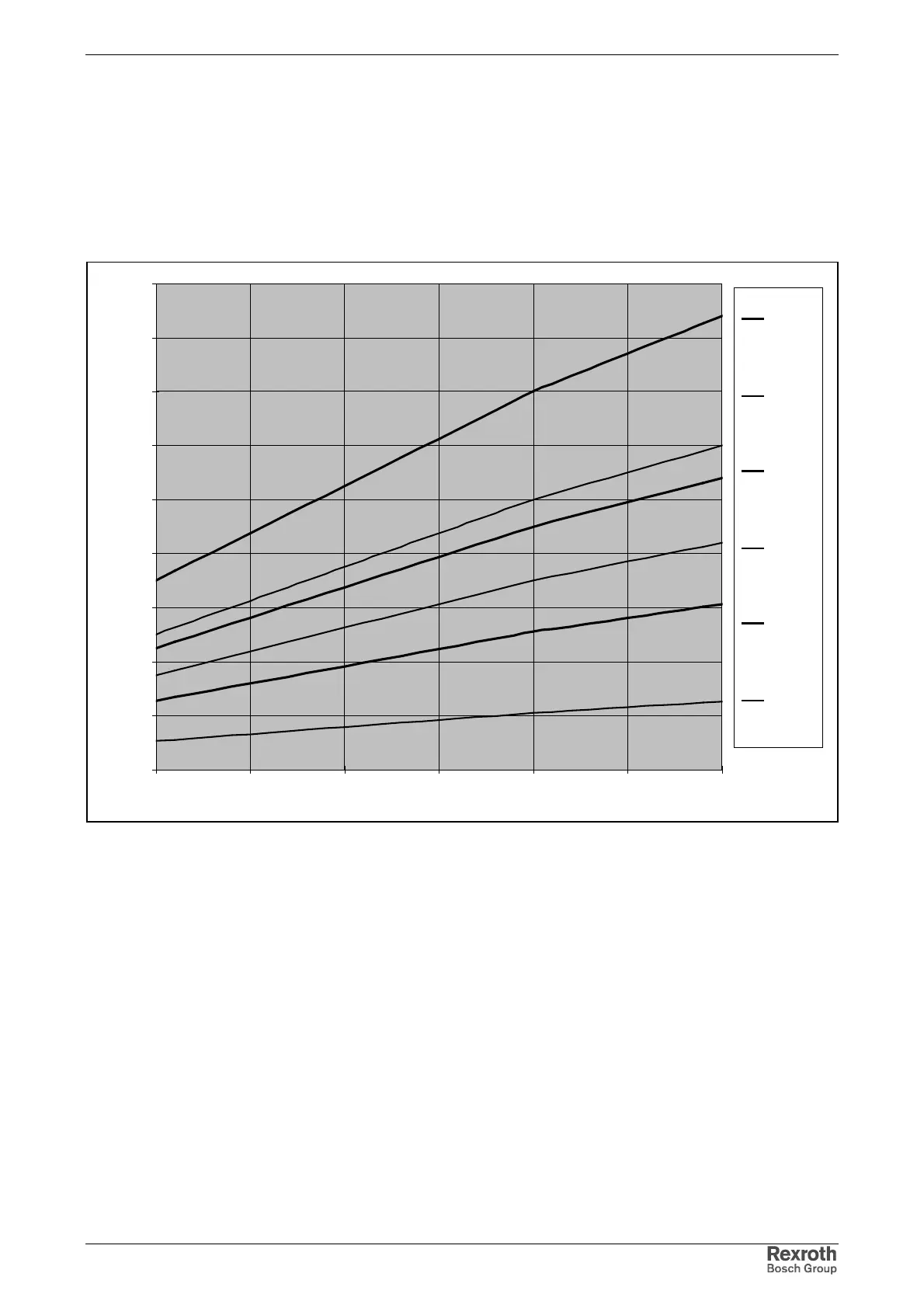

The diagram below illustrates the characteristic of the allowed DC bus
continuous power over the mains connection voltage range.
Using HNL mains chokes increases the allowed DC bus continuous
power for W0054 and W0070 devices, because this reduces the load of
the DC bus capacitors in the drive controllers.
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
200 250 300 350 400 450 500
U
LN
[V]
PDC cont [kW]
W0070 @
HNL01.1
W0054 @
HNL01.1
W0070
W0054
W0028
W0012
Fig. 6-4: P
DC_cont
HCS02.1E 3-phase

REXROTH IndraDrive C Series Specifications

General

Protection Class	IP20
Communication Interfaces	EtherCAT, PROFIBUS, PROFINET, CANopen
Feedback Systems	Incremental Encoders, Absolute Encoders, Resolver
Ambient Temperature	0°C to 45°C
Cooling Method	Natural convection or forced air
Relative Humidity	5% to 85% (non-condensing)
Control Modes	Torque, position
