REXROTH IndraDrive C Series User Manual

Rexroth IndraDrive C Electrical Data 6-41
DOK-INDRV*-HCS02.1****-PR02-EN-P

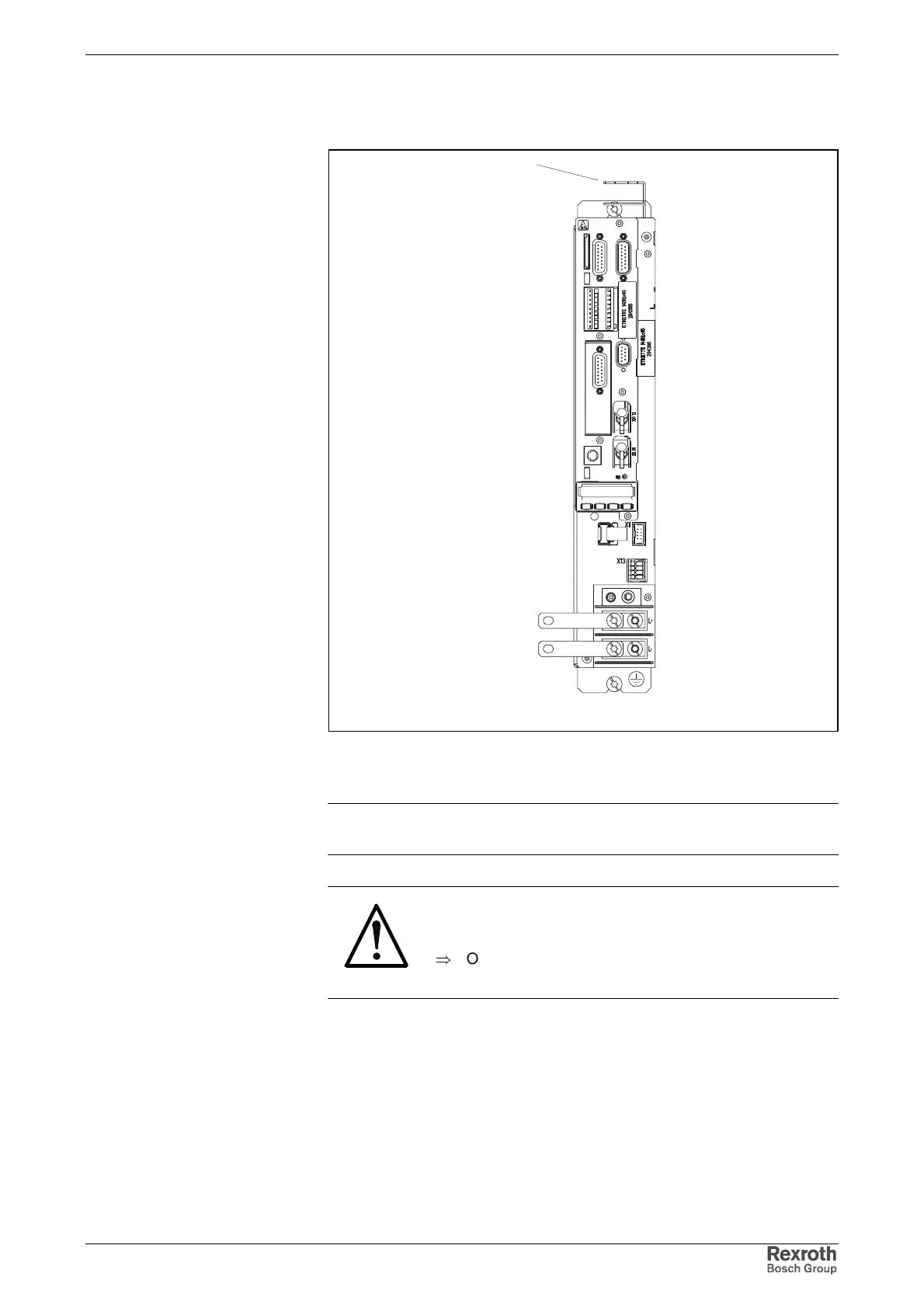

XS1, Shield Connection (Control Wires)
hcs_xs1.fh7
XS1
Fig. 6-52: Shield connection XS1
Connection for shields of wires connected to the control section.
Note: Always connect shield of cables with a large metal-to-metal
contact surface to the shield connection.
CAUTION
Risk of damage caused by too high outlet
temperatures!
⇒ Observe outlet temperatures at the top of the drive
controllers.

REXROTH IndraDrive C Series Specifications

General

Protection Class	IP20
Communication Interfaces	EtherCAT, PROFIBUS, PROFINET, CANopen
Feedback Systems	Incremental Encoders, Absolute Encoders, Resolver
Ambient Temperature	0°C to 45°C
Cooling Method	Natural convection or forced air
Relative Humidity	5% to 85% (non-condensing)
Control Modes	Torque, position
