5.1 Dimensions
HCS02.1E-W0012
A: minimum mounting clearance (when using accessories HAS02.1);
plus space for cables
B: minimum mounting clearance; plus space for cables

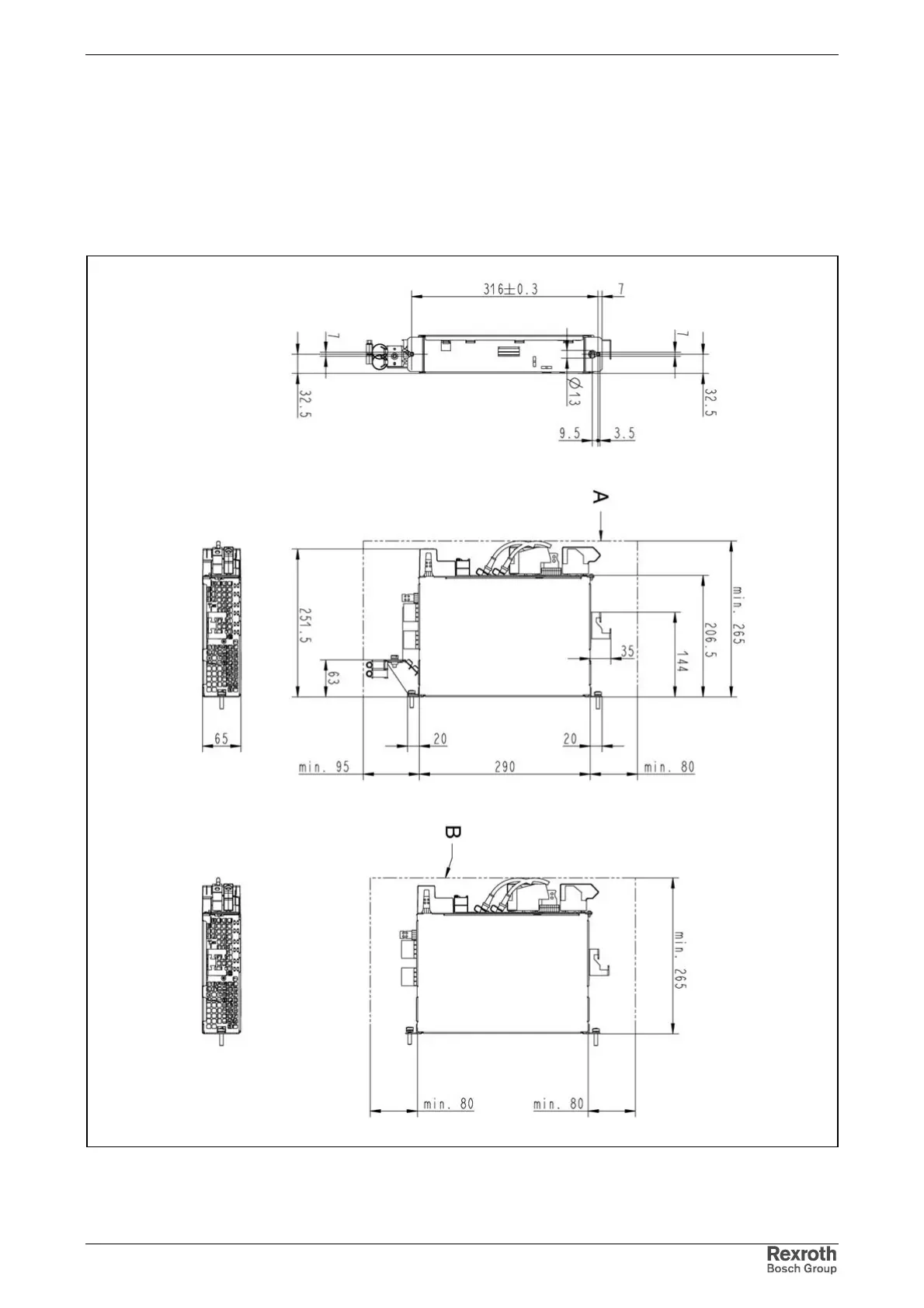

Fig. 5-1: Dimensional drawing HCS02.1E-W0012
