5-2 Mechanical Data Rexroth IndraDrive C
DOK-INDRV*-HCS02.1****-PR02-EN-P
HCS02.1E-W0028
A: minimum mounting clearance (when using accessories HAS02.1);
plus space for cables
B: minimum mounting clearance; plus space for cables

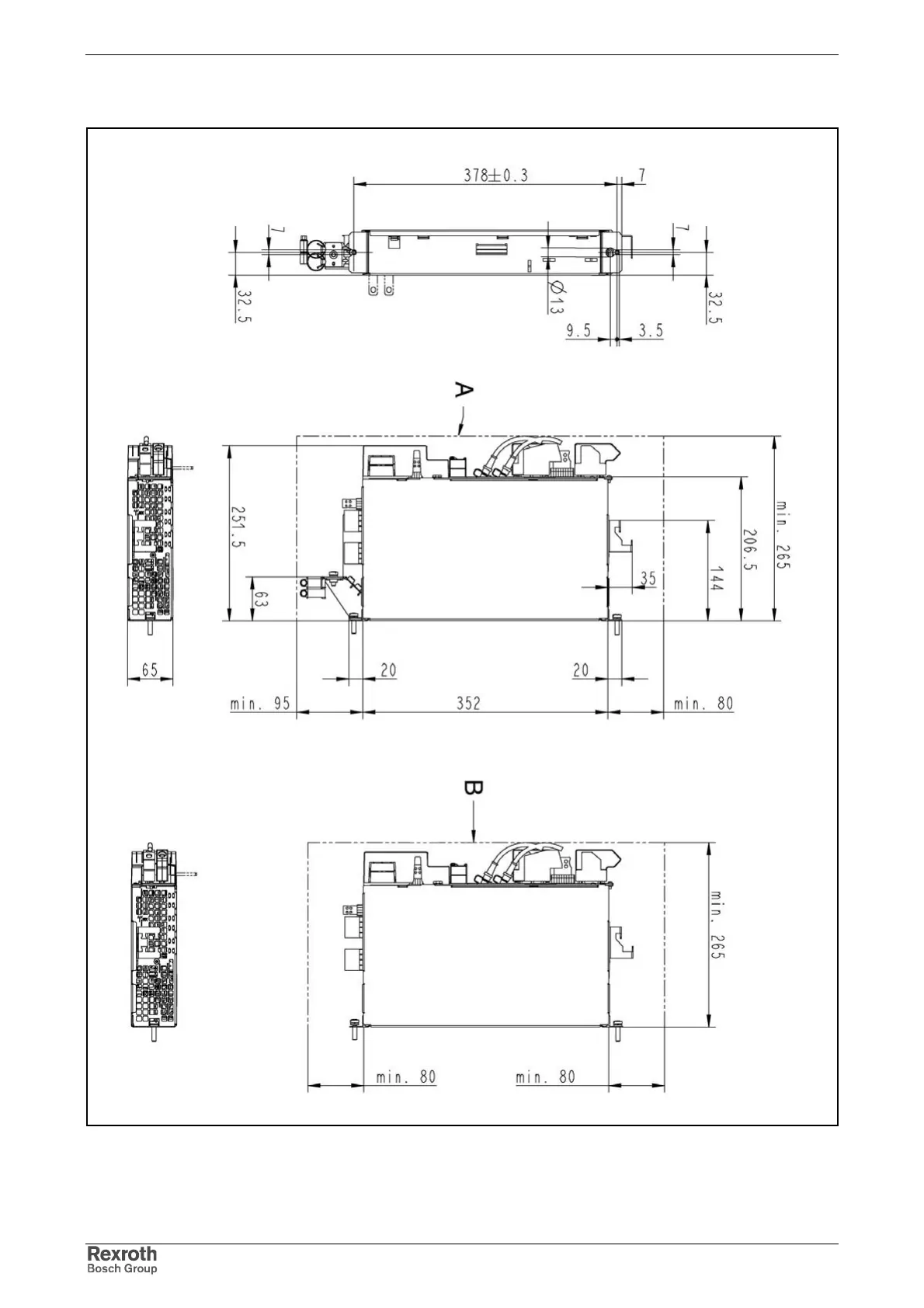

Fig. 5-2: Dimensional drawing HCS02.1E-W0028
